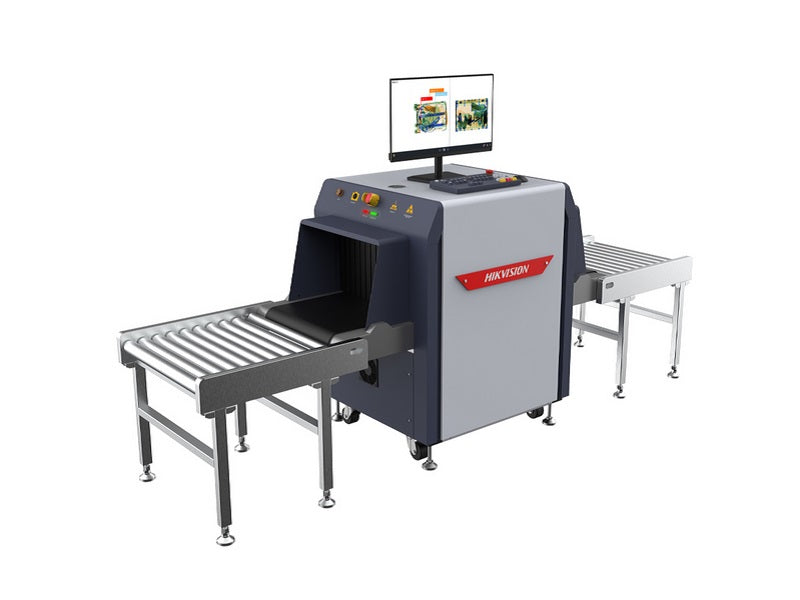

HIKVISION Intelligent X-Ray Security

Appearance and Dimension Structure 1483 mm `d7 730 mm `d7 1060 mm (L `d7 W `d7 H). hand baggage and small-sized packages.

Key features

• Intelligent X-Ray Security Inspection System
• which combines functions such as intelligent recognition,
• person and package linkage, AI open platform etc., better
• solve more problems such as under-detection caused by
• low security inspector concentration, and excessive stress
• during peak security check. The product is applicable to
• application scenarios such as government office, scenic
• spots, court, procuratorate, prison, embassy, factory,
• school, hospital, sports, culture events etc. It is applicable
• for security inspection of satchels, parcels, express wares,
• n Raytina 2.0 HD Image Algorithm: Integrated with a new generation of self-developed image enhancement algorithm,
• significantly improving the X-ray image clarity of the baggage.
• n Material Classification: Advanced material discrimination technology is used to recognize the equivalent atomic
• number of the test object and assign different colors (3 or 6 colors).
• n Intelligent Recognition: Integrated with self-developed IPR deep learning recognition and X-ray imaging algorithm,
• better improving the recognition.
• n AI Platform: Allow users themselves to import the new intelligent models for better on-site recognition.
• n 120Hz High Refresh Rate Display: Smooth the picture and eliminate visual fatigue caused by flickering.
• n Variable Speed: One-click switch the speed according to usage scenario.
• n Networking: Connect the HCP over network to manage the data for security inspection business.
• n Event Traceback: Review the video that links with X-ray image to playback the situation at that time.
• n Quick Login: Supports face, fingerprint and password, user can login in the device by any of three methods.
• n Audible and Visual Indicator: Clearly warn the operators when the prohibited articles are detected.
• n Data Storage: Supports storing and reviewing video, images, and alarm information locally of security inspection
• system.
• n Package-Package Correlation: Link the X-ray image of the baggage with the picture of the tunnel camera.
• n Video-Package Correlation: Link the X-ray image of the baggage with the video of the cameras.
• n Size
• n Performance
• Line Resolution[1] 38 AWG standard, 40 AWG typical
• Penetration[1] (Steel) 30 mm standard, 32 mm typical
• n X-ray Generator
• Anode Voltage / Current 140 kV / 0.8 mA (Adjustable)
• Cooling / Working Cycle Oil-cooling / Continuous
• Orientation Vertically upward
• n Radiation
• External Dose Rate[2] < 1.0 `ecSv/h (100mm away from the device surface)
• n Conveyor
• Video Compression Standard H.265 / H.264 / MJPEG
• Max. Image Size 1920 `d7 1080
• n Intelligent Functions
• Login Method Fingerprint / Password
• n System Functions
• Time / Date, baggage counting, user management, log management, X-ray on
• time, power on self-test, enhanced scanning, system information
• management, built-in system diagnostics, standby mode, training, HCP, organic
• materials alarm, non-penetration alarm, explosive detection, etc.
• n Image Process Functions
• Image Enhancement
• stripping(INORG-), Negative, High / Low penetration(H/L), Absorptivity
• increase(ABS+), Absorptivity decrease(ABS-), Super Enhancement(SEN), Edge
• Enhancement(Edge) and Suspect materials enhancement(Z789), 64X zoom in
• and 3X image magnifier, etc.
• Image Recall Recall infinitely
• n Device Parameters
• Power Supply AC 110V to 230V (-15% to +10%) , 50Hz/60Hz (`b13Hz);
• Noise Level 60dB(A), 1000 mm away from the device surface
• Operating Temperature / Humidity 5 `b0C to 40 `b0C / 10 % to 95 % (non-condensing)
• Storage Temperature / Humidity -20 `b0C to 60 `b0C / 0 % to 95 % ( non-condensing)

Specifications

• Tunnel Size Structure 500*300
• The ISD-SC5030S-H2CVL X-ray intelligent inspection system
• Tunnel Size 500 mm(W) `d7 300 mm(H)
• Dimension 1483 mm(L) `d7 730 mm(W) `d7 1060 mm(H)
• X-ray Generators 1
• Film Safety Standard of ASA / ISO1600
• Height 600 mm
• Speed 0.2 m/s, 0.3 m/s adjustable
• Load 100Kg
• Sensor Type 1/2.8" Progressive Scan CMOS
• Cameras 3-ch
• Video Storage Capability More than 30 days
• Screen Size 23.8", Single-screen
• Resolution 1920 `d7 1080 @ 120Hz
• Prohibited Goods 35 categories with 64 types
• Standard
• Color / Black & White(C/B&W), Organic stripping(ORG-), Inorganic
• Material Classification 3 Colors mode (Default)
• 6 Colors mode (Optional)
• Image Storage Capability 100,000 +
• Power Consumption Max. 0.6 KW
• Weight Net: approx. 460 Kg
