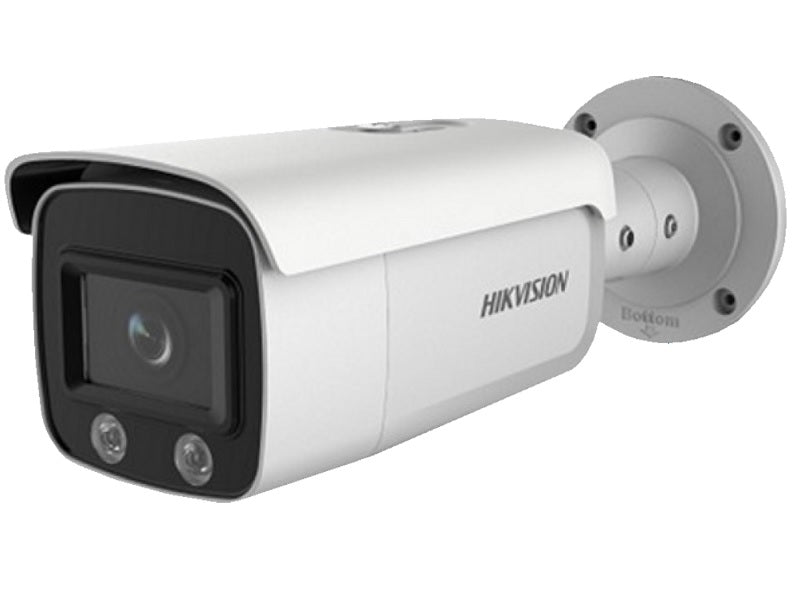

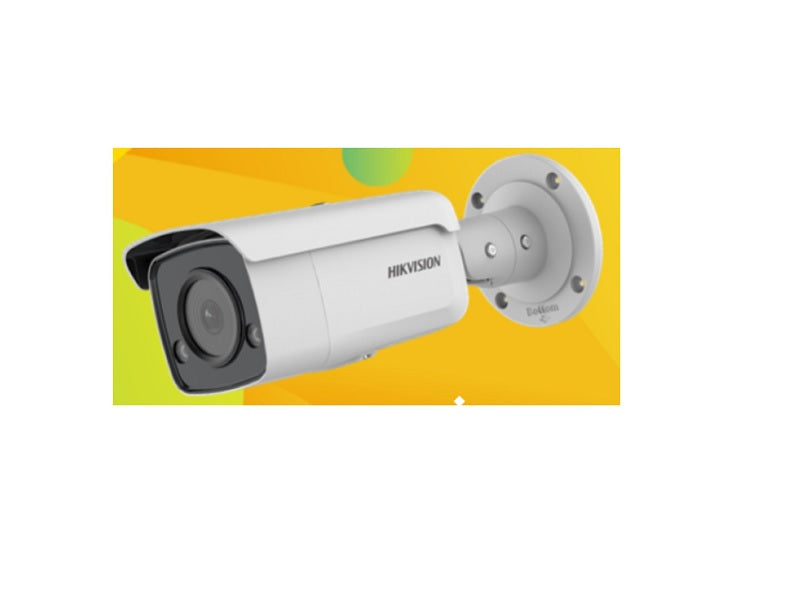

HIKVISION Ip Bullet 4 Mp Colorvu 4.0 Mm

Clear imaging against strong backlight due to 130 dB WDR technology. Focus on human and vehicle targets classification based on deep learning.

Key features

• Image Sensor
• Max. Resolution
• Min. Illumination
• Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Shutter Time
• Angle Adjustment
• Pan: 0`b0 to 360`b0, tilt: 0`b0 to 90`b0, rotate: 0`b0 to 360`b0
• Fixed focal lens, 2.8, 4, and 6 mm optional
• Focal Length & FOV
• 2.8 mm, horizontal FOV 112`b0, vertical FOV 61`b0, diagonal FOV 134`b0
• 4 mm, horizontal FOV 95`b0, vertical FOV 51`b0, diagonal FOV 115`b0
• 6 mm, horizontal FOV 58`b0, vertical FOV 31`b0, diagonal FOV 69`b0
• Iris Type
• Fixed
• Dori
• 2.8 mm, D: 58 m, O: 23 m, R: 11 m, I: 2 m
• 4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m
• 6 mm, D: 115 m, O: 45 m, R: 23 m, I: 11 m
• Illuminator
• Supplement Light Type
• White Light
• Supplement Light Range
• Smart Supplement Light
• Yes
• Main Stream
• 50 Hz: 25 fps (2688 `d7 1520, 1920 `d7 1080, 1280 `d7 720)
• 60 Hz: 30 fps (2688 `d7 1520, 1920 `d7 1080, 1280 `d7 720)
• Sub-Stream
• 50 Hz: 25 fps (1280 `d7 720, 640 `d7 480, 640 `d7 360)
• 60 Hz: 30 fps (1280 `d7 720, 640 `d7 480, 640 `d7 360)
• Third Stream
• 50 Hz: 10 fps (1920 `d7 1080, 1280 `d7 720, 640 `d7 480, 640 `d7 360)
• 60 Hz: 10 fps (1920 `d7 1080, 1280 `d7 720, 640 `d7 480, 640 `d7 360)
• Third stream is supported under certain settings.
• Baseline Profile/Main Profile/High Profile
• Main Profile
• Bit Rate Control
• Cbr/vbr
• Scalable Video Coding (SVC)
• Region Of Interest (ROI)
• 1 fixed region for main stream and sub-stream
• Protocols
• TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
• Simultaneous Live View
• API
• Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
• User/Host
• Up to 32 users. 3 user levels: administrator, operator and user
• Security
• Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• MicroSD/microSDHC/microSDXC card (512 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• Together with high-end Hikvision memory card, memory card encryption and health detection are supported
• Client
• Web Browser
• Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+
• Image
• Image Parameters Switch
• Image Settings
• Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• Day/Night Switch
• Auto, Schedule
• Wide Dynamic Range (WDR)
• SNR
• Image Enhancement
• 1 RJ45 10 M/100 M self-adaptive Ethernet port
• Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
• Reset Key
• Event
• Basic Event
• Motion detection (human and vehicle targets classification), video tampering alarm, exception
• Smart Event
• Line crossing detection, intrusion detection, region entrance detection, region exiting detection
• Scene change detection
• Linkage
• Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email
• Deep Learning Function
• Face Capture
• 12 VDC `b1 25%, 0.7 A, max. 8.5 W, `d85.5 mm coaxial power plug
• PoE: 802.3af, 36 V to 57 V, 0.30 A to 0.18 A, max. 10.5 W
• `d8105 mm `d7 289.5 mm (`d84.1″ `d7 11.4″)
• 385 mm `d7 190 mm `d7 180 mm (15.2" `d7 7.5" `d7 7.1")
• Approx. 1170 g (2.4 lb.)
• Approx. 1689 g (3.5 lb.)
• 30 `b0C to 60 `b0C (-22 `b0F to 140 `b0F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions
• Language
• English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
• Approval
• EMC
• FCC SDoC (47 CFR Part 15, Subpart B);
• Ce-emc (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);
• Safety
• CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013, IEC 62368-1: 2014);
• Ce-lvd (EN 60950-1: 2005 + am 1: 2009 + am 2: 2013, IEC 62368-1: 2014);
• CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
• Protection

Specifications

• 4 MP ColorVu Fixed Bullet Network Camera
• High quality imaging with 4 MP resolution
• Efficient H.265+ compression technology
• 24/7 colorful imaging
• Water and dust resistant (IP67)
• 1/1.8" Progressive Scan CMOS
• 2688 `d7 1520
• 1/3 s to 1/100,000 s
• Lens
• Lens Type
• Lens Mount
• M16
• Aperture
• F1.0
• Depth Of Field
• 2.8 mm, 2.5 m to ∞
• 4 mm, 3.5 m to ∞
• 6 mm, 7.5 m to ∞
• 60 m
• Main stream: H.265/H.264/H.265+/H.264+
• Sub-stream: H.265/H.264/MJPEG
• Third stream: H.265/H.264
• 32 Kbps to 8 Mbps
• H.264 Type
• H.265 Type
• H.264 and H.265 encoding
• Up to 6 channels
• iVMS-4200, Hik-Connect, Hik-Central
• Plug-in required live view: IE 10, IE 11
• Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
• 130 dB
• ≥ 52 dB
• BLC, HLC, 3D DNR
• 33 languages
• RCM (as/nzs cispr 32: 2015);
• IC VoC (ICES-003: Issue 6, 2016);
• KC (KN 32: 2015, KN 35: 2015)
• UL (UL 60950-1);
• BIS (IS 13252(Part 1): 2010+A1: 2013+A2: 2015);
• LOA (iec/en 60950-1)
• IP67 (IEC 60529-2013)
