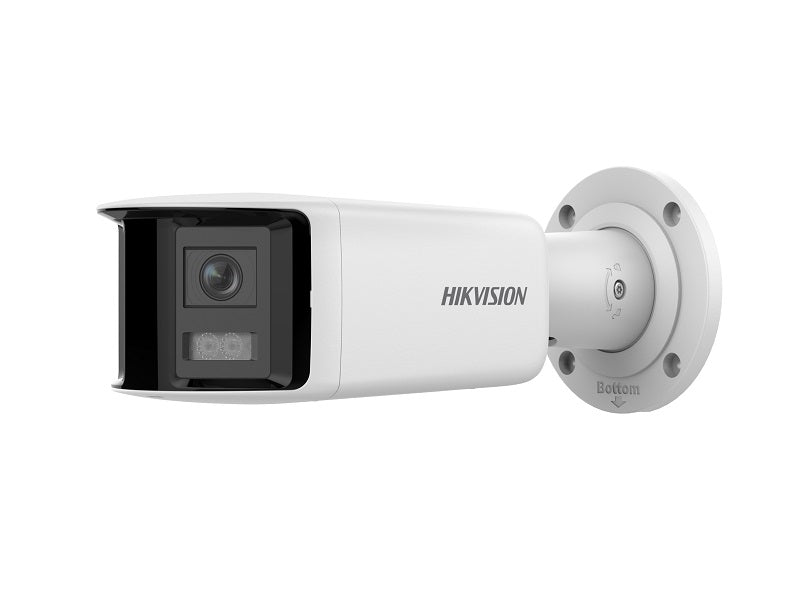

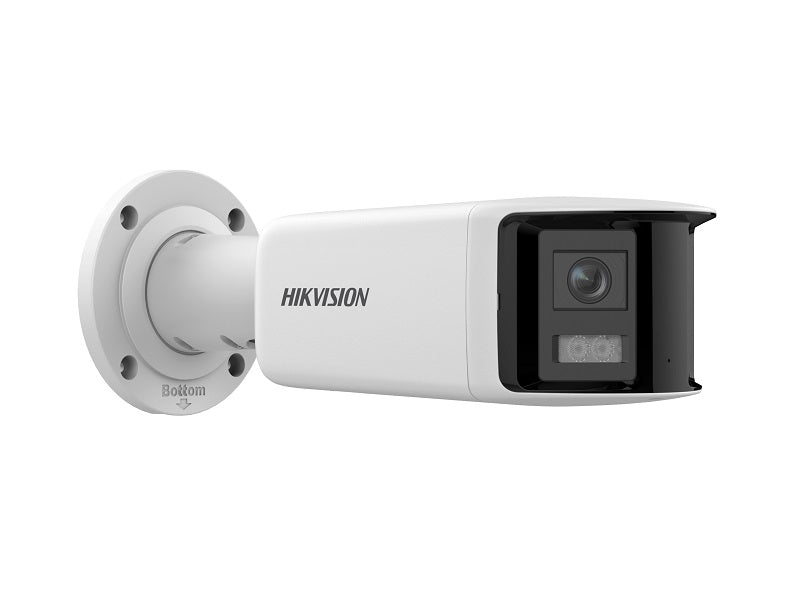

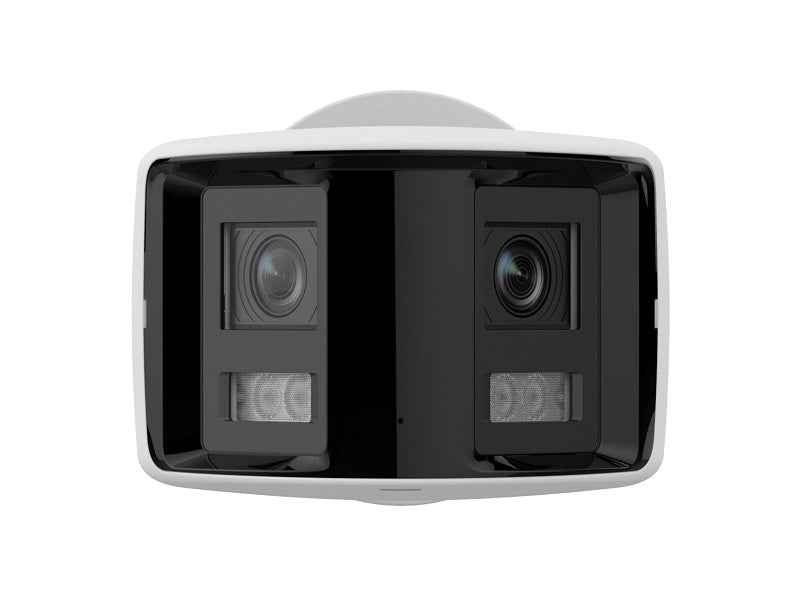

HIKVISION Ip Bullet 4Mp 2.8Mm Acusense

One image that presents all the scenes covered by the camera. Clear imaging against strong back light due to 120 dB true WDR technology.

Key features

• 4 MP Panoramic AcuSense Fixed Bullet Network Camera
• Excellent low-light performance with powered-by-DarkFighter technology
• Focus on human and vehicle targets classification based on deep learning
• Active strobe light and audio alarm to warn intruders off
• Provide real-time security via built-in two-way audio
• Image Sensor
• Max. Resolution
• Min. Illumination
• Color: 0.003 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
• Shutter Time
• Day & Night
• IR cut filter
• Angle Adjustment
• Pan: 0`b0 to 355`b0,tilt: 0`b0 to 90`b0,rotate: 0`b0 to 360`b0
• Focal Length & FOV
• Iris Type
• Fixed
• Dori
• 2.8 mm, D: 37 m, O: 15 m, R: 7 m, I: 3.5 m
• Illuminator
• Supplement Light Type
• IR
• Supplement Light Range
• Smart Supplement Light
• Yes
• IR Wavelength
• Main Stream
• Sub-Stream
• 50 Hz: 25 fps (1200 `d7 536, 960 `d7 432)
• 60 Hz: 24 fps (1200 `d7 536, 960 `d7 432)
• Baseline Profile,Main Profile,High Profile
• Main Profile
• Bit Rate Control
• Cbr,vbr
• Scalable Video Coding (SVC)
• Region of Interest (ROI)
• Mono sound
• 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Protocols
• TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, Websocket, Websockets
• Simultaneous Live View
• API
• Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK
• User/Host
• Security
• Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
• NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
• Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
• Client
• Web Browser
• Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,
• Image
• Image Parameters Switch
• Image Settings
• Saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
• Day/Night Switch
• Day,Night,Auto,Schedule
• Wide Dynamic Range (WDR)
• SNR
• Image Enhancement
• Privacy Mask
• 1 RJ45 10 M/100 M self-adaptive Ethernet port
• Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
• Built-in Microphone
• Max. power consumption: 1 W, max. sound pressure level: 10 cm: 97 dB
• 1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 K'd9, interface type: non-equilibrium,
• 1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 `d9, interface type: non-equilibrium
• Alarm
• 1 input, 1 output (max. 24 VAC/VDC, 1 A)
• Reset Key
• Event
• Basic Event
• Motion detection (support alarm triggering by specified target types (human and vehicle)),alarm input and output,flashing alarm light output, audible alarm output, exception
• Smart Event
• Scene change detection
• Linkage
• Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning,white light flashing
• Deep Learning Function
• Perimeter Protection
• Line crossing, intrusion, region entrance, region exiting
• Support alarm triggering by specified target types (human and vehicle)
• 12 VDC `b1 25%, 0.88 A, max. 10.5 W,`d85.5 mm coaxial power plug,
• PoE: IEEE 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W
• 118.6 mm `d7 105.1 mm `d7 306.5 mm (4.7" `d7 4.1" `d7 12.1")
• 405 mm `d7 190 mm `d7 180 mm (16" `d7 7.5" `d7 7.1")
• Approx. 1400 g (3.1 lb.)
• Approx. 2100 g (4.6 lb.)
• 30 `b0C to 60 `b0C (-22 `b0F to 140 `b0F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions
• Language
• 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• Anti-banding, heartbeat, flash log, pixel counter
• Flashing Light
• Approval
• EMC
• Ce-emc: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
• Safety
• Protection

Specifications

• Ds-2cd2t46g2p-isu/sl
• High quality imaging with 4 MP resolution
• Water and dust resistant (IP67)
• 2 `d7 1/2.5" Progressive Scan CMOS
• 3040 `d7 1368
• 1/3 s to 1/100,000 s
• Lens
• Lens Type
• Fixed focal lens, dual lens, 2.8 mm
• 2.8 mm, horizontal FOV: 180`b0, vertical FOV: 81`b0
• Lens Mount
• M12
• Aperture
• F1.6
• Up to 40 m
• 850 nm
• 50 Hz: 25 fps (3040 `d7 1368)
• 60 Hz: 24 fps (3040 `d7 1368)
• Main stream: H.265+/H.265/H.264+/H.264
• Sub-stream: H.265/H.264/MJPEG
• 32 Kbps to 8 Mbps
• H.264 Type
• H.265 Type
• H.264 and H.265 encoding
• 1 fixed region for main stream
• G.711/g.722.1/g.726/mp2l2/pcm/mp3/aac-lc
• 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Up to 6 channels
• Up to 32 users
• 3 user levels: administrator, operator, and user
• iVMS-4200,Hik-Connect,Hik-Central
• Plug-in required live view: IE 10, IE 11,
• Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
• 120 dB
• ≥ 52 dB
• Blc,hlc,3d DNR
• 8 rectangular privacy masks
• Material
• Front cover: metal, body: metal, bracket: metal
• FCC: 47 CFR Part 15, Subpart B,
• RCM: as/nzs cispr 32: 2015,
• IC: ICES-003: Issue 7
• UL: UL 62368-1,
• CB: IEC 62368-1: 2014+A11,
• Ce-lvd: EN 62368-1: 2014/A11: 2017
• Ce-rohs: 2011/65/EU,
• Weee: 2012/19/EU,
• Reach: Regulation (EC) No 1907/2006
• IP67: IEC 60529-2013
