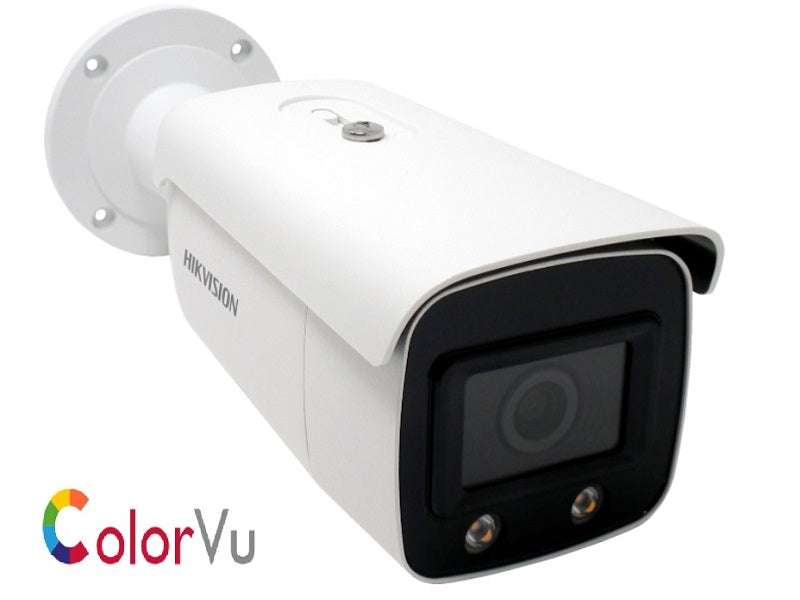

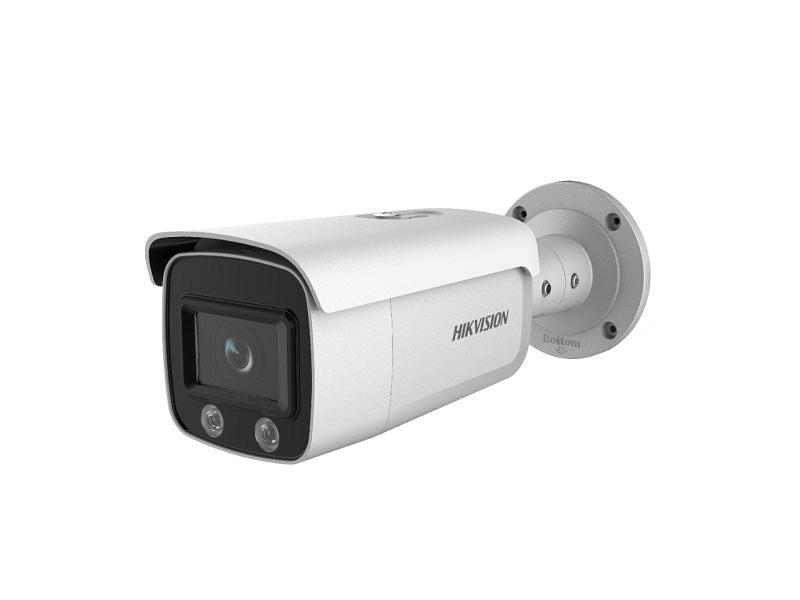

HIKVISION Ip Bullet Colorvu 2Mp-4Mm

Clear imaging against strong back light due to 120 dB true WDR technology. 0.0035 Lux @ (F1.0, AGC ON), 0 Lux with Light.

Key features

• Robust structure design with full metal materials
• Image Sensor
• Min. Illumination
• Shutter Speed
• Slow Shutter
• Yes
• Wide Dynamic Range
• Angle Adjustment
• Pan: 0`b0 to 360`b0, tilt: 0`b0 to 90`b0, rotate: 0`b0 to 360`b0
• Focus
• Fixed
• FOV
• 2.8 mm, horizontal FOV: 112`b0, vertical FOV: 57`b0, diagonal FOV: 138`b0; 4 mm, horizontal FOV: 89`b0, vertical FOV: 46`b0, diagonal FOV: 106`b0; 6 mm, horizontal FOV: 56`b0, vertical FOV: 30`b0, diagonal FOV: 66`b0`a3`bb
• Illuminator
• White Light Range
• Max. Resolution
• Main Stream
• 50Hz: 25fps (1920 `d7 1080, 1280 `d7 960, 1280 `d7 720); 60Hz: 30fps (1920 `d7 1080, 1280 `d7 960, 1280 `d7 720)
• Sub Stream
• 50Hz: 25fps (640 `d7 480, 640 `d7 360, 320 `d7 240); 60Hz: 30fps (640 `d7 480, 640 `d7 360, 320 `d7 240)
• Third Stream
• 50Hz: 25fps (1920 `d7 1080, 1280 `d7 720, 640 `d7 360, 352 `d7 288); 60Hz: 30fps (1920 `d7 1080, 1280 `d7 720, 640 `d7 360, 352 `d7 240)
• Main Profile/High Profile
• Main Profile
• Region Of Interest (ROI)
• Support 1 fixed region for main stream and sub-stream separately
• Simultaneous Live View
• API
• Onvif (profile S, profile G), isapi
• Protocols
• Tcp/ip, icmp, http, https, FTP, dhcp, DNS, ddns, RTP, rtsp, rtcp, pppoe, NTP, upnp, smtp, snmp, igmp, 802.1X, qos, ipv6, UDP, bonjour
• User/Host
• Up to 32 users, 3 levels: Administrator, Operator and User
• Support micro SD/SDHC/SDXC card (128 G) local storage, NAS (NFS, SMB/CIFS), ANR
• Client
• Web Browser
• Plug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11; Plug-in free live view: Chrome 45.0+, Firefox 52.0+
• Alarm Trigger
• Motion detection, video tampering detection, network disconnected, IP address conflict, illegal login, HDD full, HDD error
• Image
• Day/Night Switch
• Day/Night
• DNR
• Image Enhancement
• Image Settings
• Rotate mode, saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
• Built-in micro SD/SDHC/SDXC slot, up to 128 GB
• Hardware Reset
• Event
• Smart Event
• Line crossing detection, intrusion detection, object removal detection, unattended baggage detection
• Face Detection
• Exception Detection
• Scene change detection
• Firmware Version
• One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
• Startup And Operating Conditions
• 30 `b0C to +60 `b0C (-22 `b0F to +140 `b0F), humidity 95% or less (non-condensing)
• 12 VDC `b1 25%, `d6 5.5 mm coaxial power plug,PoE (802.3af, class 3)
• 12 VDC, 0.7 A, max. 9 W; PoE: (802.3af, 36 V to 57 V), 0.3 A to 0.1 A, max. 10.5 W
• Camera: `d6 105 `d7 290.7 mm (`d6 4.1" `d7 11.4");With package: 385 `d7 190 `d7 180 mm (15.2" `d7 7.5" `d7 7.1")
• Camera: 1200 g (2.6 lb.); With package: 1800 g (4 lb.)
• Approval
• Protection

Specifications

• Ds-2cd2t27g1-l4mm
• 2 MP ColorVu Fixed Bullet Network Camera
• High quality imaging with 2 MP resolution
• 24/7 full color imaging
• Efficient H.265+ compression technology
• Water and dust resistant (IP67)
• 1/2.8" Progressive Scan CMOS
• 1/3 s to 1/100,000 s
• 120 dB
• Lens
• Lens Type
• 2.8/4/6 mm
• Aperture
• F1.0
• Lens Mount
• M16
• Warm white LEDs (3000K), up to 30m
• 1920 `d7 1080
• Main stream: H.265+/H.265/H.264+/H.264; Sub-stream: H.265/H.264/MJPEG; Third stream: H.265/H.264
• 32 Kbps to 16 Mbps
• H.264 Type
• H.265 Type
• Up to 6 channels
• iVMS-4200, Hik-Connect, iVMS-4500, iVMS-5200
• 3D DNR
• Blc/3d dnr/hlc
• 1 RJ45 10M/100M self-adaptive Ethernet port
• V5.5.82
• IP67
