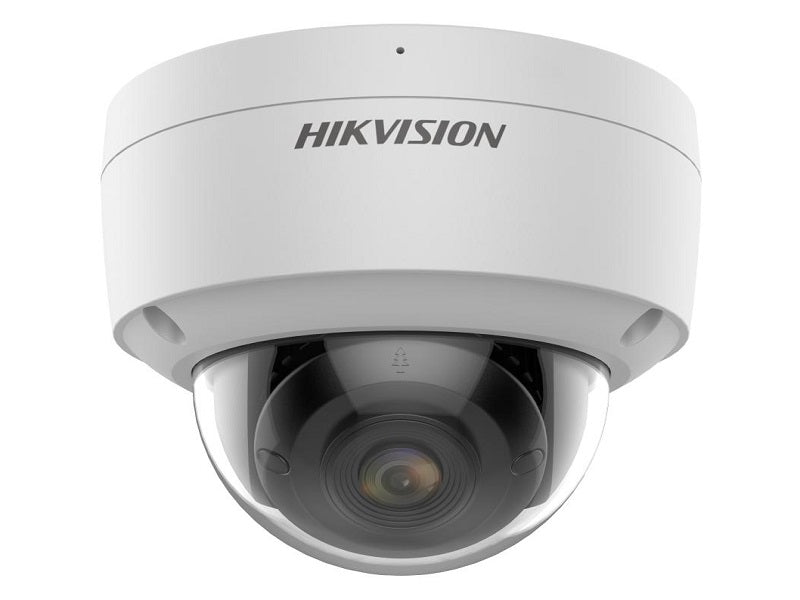

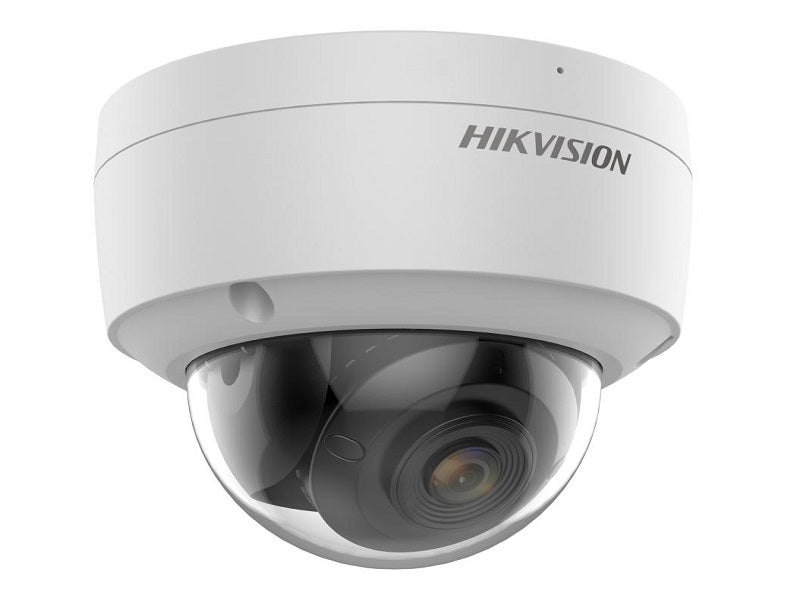

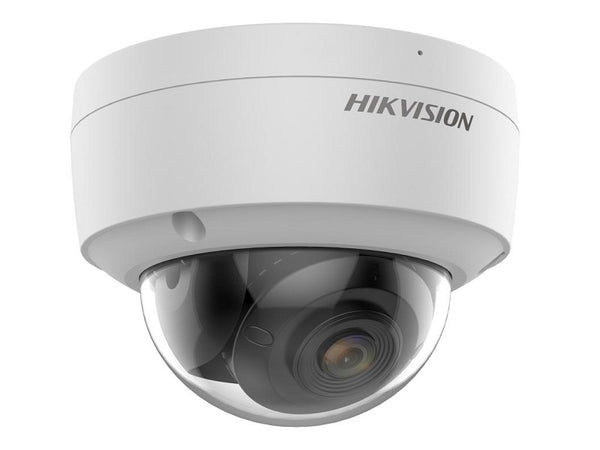

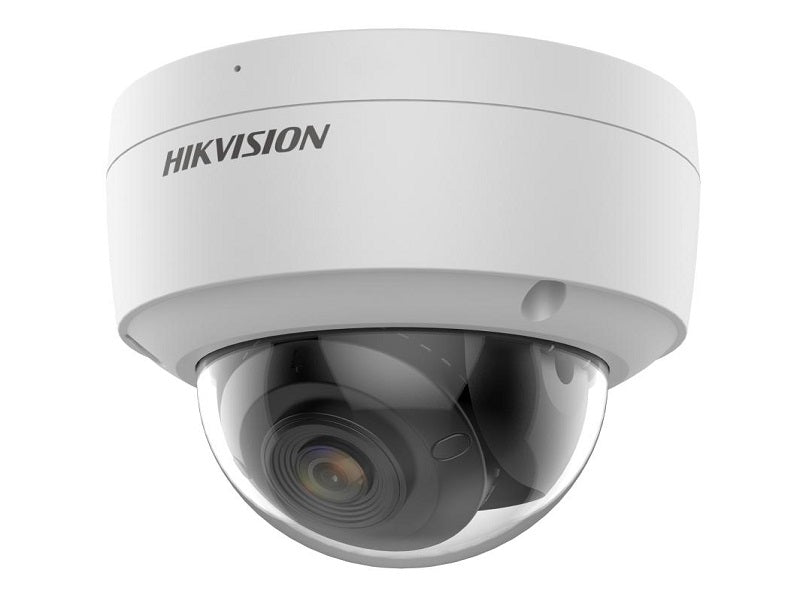

HIKVISION Ip Dome 4Mm 2Mp

Clear imaging against strong back light due to 120 dB WDR technology. Focus on human and vehicle classification based on deep learning.

Key features

• SU: Built-in microphone for real-time audio security, Audio and alarm interface available
• Water and dust resistant (IP67) and vandal resistant (IK10)
• Image Sensor
• Max. Resolution
• Min. Illumination
• Shutter Time
• Angle Adjustment
• Pan: 0`b0 to 355`b0, tilt: 0`b0 to 75`b0, rotate: 0`b0 to 355`b0
• Fixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV
• 2.8 mm, horizontal FOV 107`b0, vertical FOV 56`b0, diagonal FOV 127`b0
• 4 mm, horizontal FOV 84`b0, vertical FOV 45`b0, diagonal FOV 99`b0
• Iris Type
• Fixed
• Dori
• 2.8 mm: D: 46 m, O: 18 m, R: 9 m, I: 4 m
• 4 mm: D: 56 m, O: 22 m, R: 11 m, I: 5 m
• Main Stream
• 50 Hz: 25 fps (1920 `d7 1080, 1280 `d7 720)
• 60 Hz: 30 fps (1920 `d7 1080, 1280 `d7 720)
• Sub-Stream
• 50 Hz: 25 fps (640 `d7 480, 640 `d7 360)
• 60 Hz: 30 fps (640 `d7 480, 640 `d7 360)
• Third Stream
• 50 Hz: 10 fps (1920 `d7 1080, 1280 `d7 720, 640 `d7 480, 640 `d7 360)
• 60 Hz: 10 fps (1920 `d7 1080, 1280 `d7 720, 640 `d7 480, 640 `d7 360)
• Third stream is supported under certain settings.
• Baseline Profile/Main Profile/High Profile
• Main Profile
• Bit Rate Control
• Cbr/vbr
• Scalable Video Coding (SVC)
• Region of Interest (ROI)
• 1 fixed region for main stream and sub-stream
• SU: 64 Kbps(G.711 ulaw)/64 Kbps(G.711 alaw)/16 Kbps(G.722.1)/16 Kbps(G.726)/32 to 192 Kbps(MP2L2)/8 to 320 Kbps(MP3)/16 to 64 Kbps(AAC-LC)
• Protocols
• TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
• Simultaneous Live View
• API
• Open Network Video Interface (Profile S, Profile G), ISAPI, SDK
• User/Host
• Up to 32 users. 3 user levels: administrator, operator and user
• Security
• Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• Client
• Web Browser
• Image
• Image Parameters Switch
• Yes
• Image Settings
• Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• Day/Night Switch
• Day, Night, Auto, Schedule
• Wide Dynamic Range (WDR)
• SNR
• Image Enhancement
• 1 RJ45 10 M/100 M self-adaptive Ethernet port
• Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
• Built-in Microphone
• SU: 1 input (line in), max. input amplitude: 3.3 vpp, input impedance: 4.7 K'd9, interface type: non-equilibrium;
• 1 output (line out), max. output amplitude: 3.3 vpp, output impedance: 100 `d9, interface type: non-equilibrium, mono sound
• Alarm
• SU: 1 input, 1 output (TTL: max. 12 VDC, 30 mA)
• Reset Key
• Event
• Basic Event
• Motion detection (human and vehicle targets classification), video tampering alarm, exception
• Smart Event
• Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggering by specified target types (human and vehicle))
• Scene change detection
• Linkage
• Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email
• Deep Learning Function
• Face Capture
• 12 VDC, 0.4 A, max. 5 W, `d85.5 mm coaxial power plug
• PoE: 802.3af, 36 V to 57 V, 0.20 A to 0.15 A, max. 6.5 W
• 150 mm `d7 150 mm `d7 141 mm (5.9" `d7 5.9" `d75.6")
• Approx. 560 g (1.2 lb.)
• Approx. 810 g (1.8 lb.)
• 30 `b0C to 60 `b0C (-22 `b0F to 140 `b0F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions
• Language
• English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
• Approval
• EMC
• FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
• Safety
• UL (UL 60950-1); CB (IEC 60950-1:2005 + am 1:2009 + am 2:2013, IEC 62368-1:2014); ce-lvd (EN 60950-1:2005 + am 1:2009 + am 2:2013, IEC 62368-1:2014); LOA (iec/en 60950-1)
• CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
• Protection

Specifications

• 2 MP ColorVu Fixed Dome Network Camera
• High quality imaging with 2 MP resolution
• Efficient H.265+ compression technology
• 24/7 colorful imaging
• 1/2.8" Progressive Scan CMOS
• 1920 `d7 1080
• Color: 0.0005 Lux @ (F1.0, AGC ON)
• 1/3 s to 1/100,000 s
• Lens
• Lens Type
• Lens Mount
• M12
• Aperture
• F1.0
• Main stream: H.265/H.264/H.265+/H.264+
• Sub-stream: H.265/H.264/MJPEG
• Third stream: H.265/H.264
• 32 Kbps to 8 Mbps
• H.264 Type
• H.265 Type
• H.265 and H.264 encoding
• SU: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• SU: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• SU: Yes
• Up to 6 channels
• iVMS-4200, Hik-Connect, Hik-Central
• Plug-in required live view: IE 10, IE 11
• Plug-in free live view: Chrome 57.0+, Firefox 52.0+
• Local service: Chrome 57.0+, Firefox 52.0+
• 120 dB
• ≥ 52 dB
• BLC, HLC, 3D DNR
• S model also supports: trigger alarm output, audible warning
• `d8121.4 `d7 100.1 mm (`d84.8" `d7 3.9")
• 33 languages
• IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
