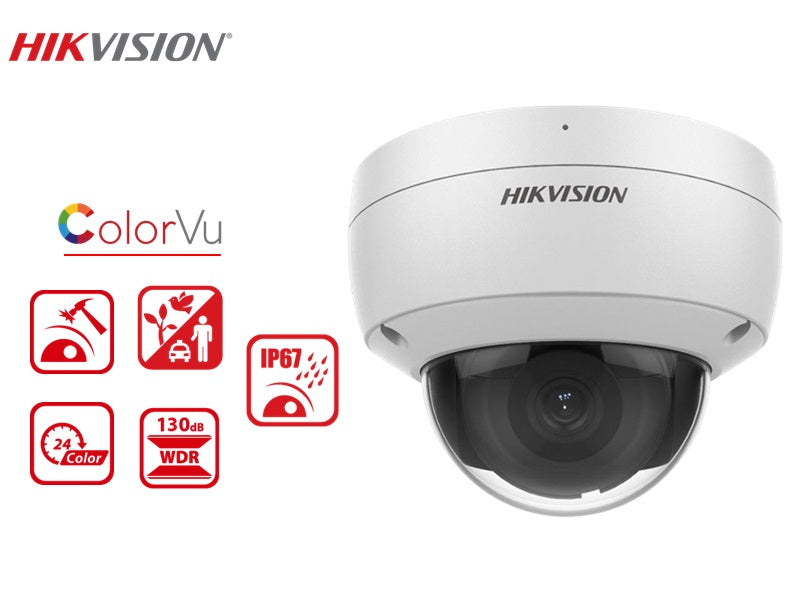

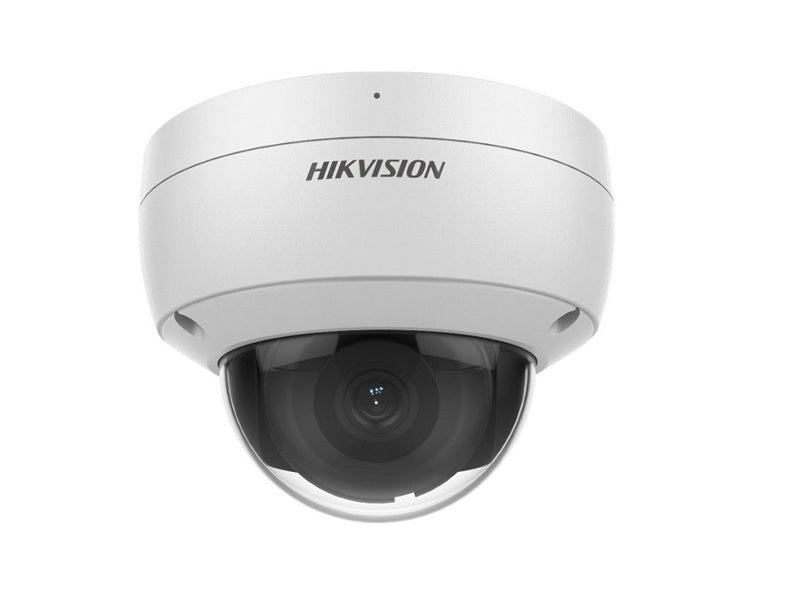

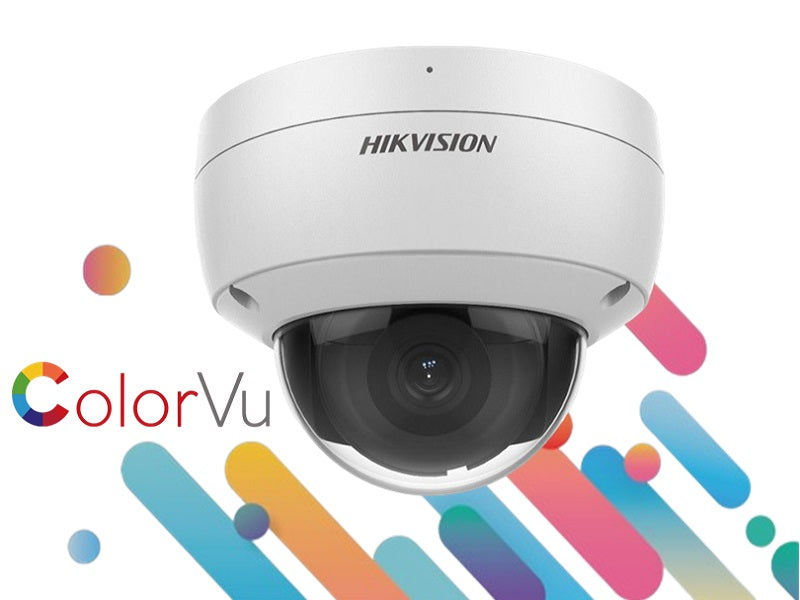

HIKVISION Ip Dome 4Mp Colorvu 2.8Mm

Clear imaging against strong back light due to 130 dB WDR technology. Focus on human and vehicle targets classification based on deep learning.

Key features

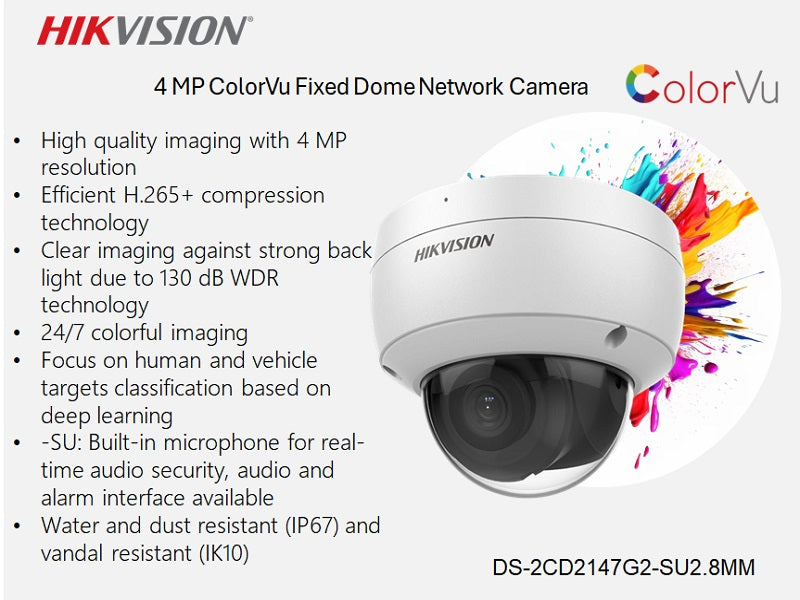

• 4 MP ColorVu Fixed Dome Network Camera - DS-2CD2147G2-SU2.8M
• -SU: Built-in microphone for real-time audio security, audio and alarm interface available
• Water and dust resistant (IP67) and vandal resistant (IK10)
• Max. Resolution2688 `d7 1520
• Min. Illumination0.0005 Lux @ (F1.0, AGC ON)
• Day & NightBlue glass module to reduce ghost phenomenon
• Angle AdjustmentPan: 0`b0 to 355`b0, tilt: 0`b0 to 75`b0, rotate: 0`b0 to 355`b0
• Focal Length & FOV
• 2.8 mm, horizontal FOV 112`b0, vertical FOV 61`b0, diagonal FOV 134`b0
• Iris TypeFixed
• Main Stream-
• 50 Hz: 25 fps (2688 `d7 1520, 1920 `d7 1080, 1280 `d7 720)
• 60 Hz: 30 fps (2688 `d7 1520, 1920 `d7 1080, 1280 `d7 720)
• Sub-Stream-
• 50 Hz: 25 fps (1280 `d7 720, 640 `d7 480, 640 `d7 360)
• 60 Hz: 30 fps (1280 `d7 720, 640 `d7 480, 640 `d7 360)
• Third Stream-
• 50 Hz: 10 fps (1920 `d7 1080, 1280 `d7 720, 640 `d7 480, 640 `d7 360)
• 60 Hz: 10 fps (1920 `d7 1080, 1280 `d7 720, 640 `d7 480, 640 `d7 360)
• Third stream is supported under certain settings.
• Audio Bit Rate-SU: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Protocols - TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
• Simultaneous Live View - Up to 6 channels
• APIO - pen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
• User/Host - Up to 32 users. 3 user levels: administrator, operator and user
• Security - Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• MicroSD/microSDHC/microSDXC card (512 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
• Web Browser
• Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+
• Alarm
• SU: 1 input, 1 output (max. 12 VDC, 30 mA)
• Reset Key
• Yes

Specifications

• Ds-2cd2147g2-su2.8mm
• High quality imaging with 4 MP resolution
• Efficient H.265+ compression technology
• 24/7 colorful imaging
• Image Sensor1/1.8" Progressive Scan CMOS
• Shutter Time1/3 s to 1/100,000 s
• Lens TypeFixed focal lens, 2.8 and 4 mm optional
• Lens MountM16
• ApertureF1.0
• Main stream: H.265/H.264/H.265+/H.264+
• Sub-stream: H.265/H.264/MJPEG
• Third stream: H.265/H.264
• Audio Compression-SU: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Sampling Rate-SU: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• ClientiVMS-4200, Hik-Connect, Hik-Central
• Plug-in required live view: IE 10, IE 11
• Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
