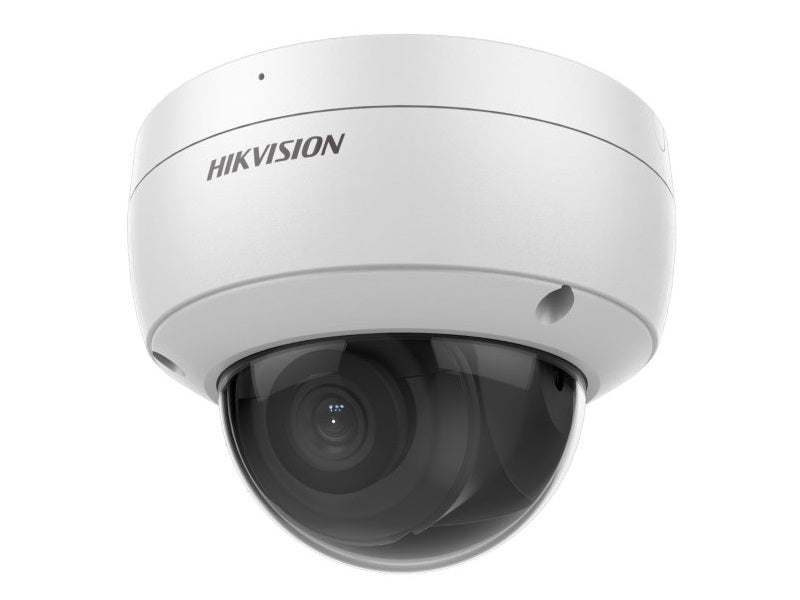

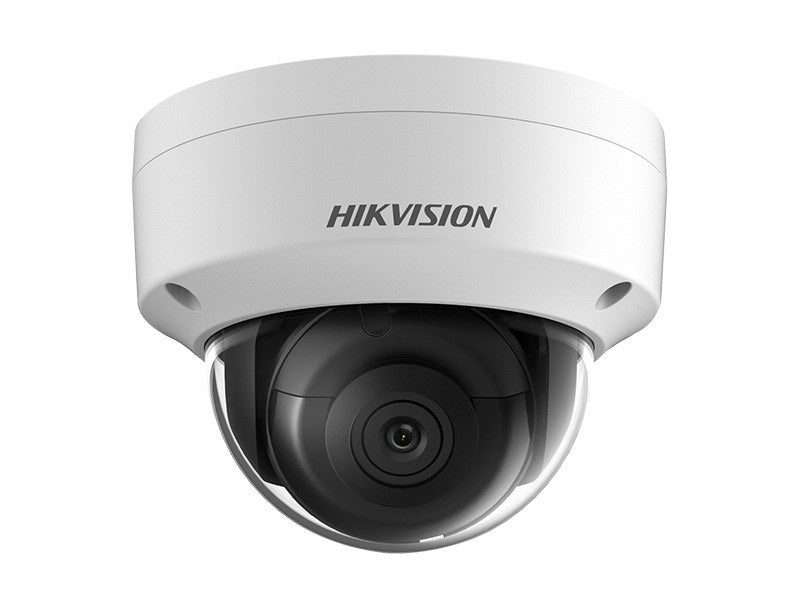

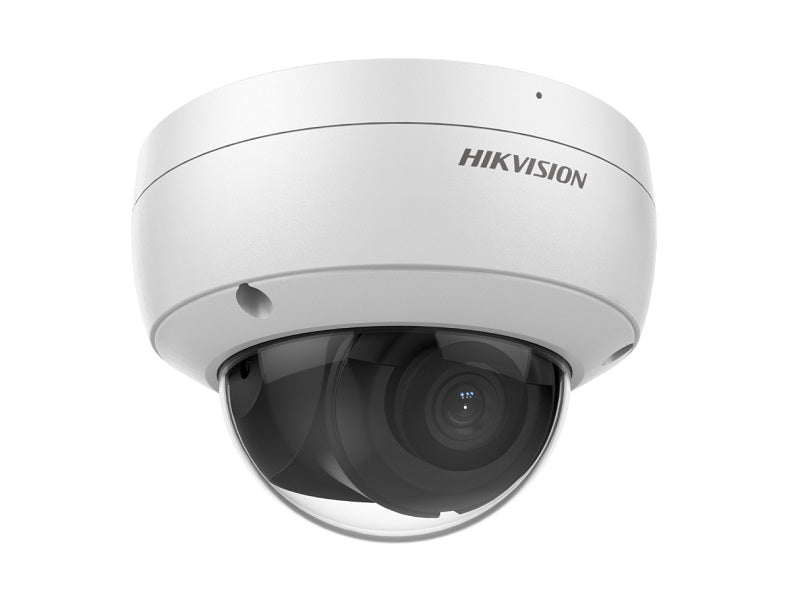

HIKVISION Ip Dome 8Mp-2.8Mm Acusense

Clear imaging against strong back light due to 120 dB true WDR technology. Focus on human and vehicle targets classification based on deep learning.

Key features

• Excellent low-light performance via powered-by-DarkFighter technology
• Water and dust resistant (IP67) and vandal resistant (IK10)
• Image Sensor
• Max. Resolution
• Min. Illumination
• Color: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
• Shutter Time
• Day & Night
• IR cut filter
• Angle Adjustment
• Pan: 0`b0 to 355`b0, tilt: 0`b0 to 75`b0, rotate: 0`b0 to 355`b0
• Fixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV
• 2.8 mm, horizontal FOV 111`b0, vertical FOV 59`b0, diagonal FOV 131`b0
• 4 mm, horizontal FOV 87`b0, vertical FOV 47`b0, diagonal FOV 102`b0
• Iris Type
• Fixed
• Dori
• 2.8 mm: D: 89.2 m, O: 35.4 m, R: 17.8 m, I: 8.9 m
• 4 mm: D: 99.4 m, O: 39.4 m, R: 19.9 m, I: 9.9 m
• Illuminator
• Supplement Light Type
• IR
• Supplement Light Range
• Smart Supplement Light
• Yes
• IR Wavelength
• Main Stream
• 50 Hz: 25 fps (3840 `d7 2160, 3200 `d7 1800, 2688 `d7 1520, 1920 `d7 1080, 1280 `d7 720)
• 30 fps (3200 `d7 1800, 2688 `d7 1520, 1920 `d7 1080, 1280 `d7 720)
• Sub-Stream
• 50 Hz: 25 fps (640 `d7 480, 640 `d7 360)
• 60 Hz: 30 fps (640 `d7 480, 640 `d7 360)
• Third Stream
• 50 Hz: 10 fps (1920 `d7 1080, 1280 `d7 720, 640 `d7 480, 640 `d7 360)
• 60 Hz: 10 fps (1920 `d7 1080, 1280 `d7 720, 640 `d7 480, 640 `d7 360)
• Third stream is supported under certain settings.
• Baseline Profile/Main Profile/High Profile
• Main Profile
• Bit Rate Control
• Cbr/vbr
• Scalable Video Coding (SVC)
• Region Of Interest (ROI)
• 1 fixed region for main stream and sub-stream
• Target Cropping
• U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
• Protocols
• Tcp/ip, icmp, http, https, FTP, dhcp, DNS, ddns, RTP, rtsp, NTP, upnp, smtp, igmp, 802.1X, qos, ipv4, ipv6, UDP, bonjour, ssl/tls, pppoe, snmp, ARP
• Simultaneous Live View
• API
• Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
• User/Host
• Up to 32 users. 3 user levels: administrator, operator and user
• Security
• Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
• Client
• Web Browser
• Image
• Image Parameters Switch
• Image Settings
• Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• Day/Night Switch
• Day, Night, Auto, Schedule
• Wide Dynamic Range (WDR)
• SNR
• Image Enhancement
• 1 RJ45 10 M/100 M self-adaptive Ethernet port
• Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
• 1 output (line out), max. output amplitude: 3.3 vpp, output impedance: 100 `d9, interface type: non-equilibrium, mono sound
• Alarm
• S: 1 input, 1 output (TTL: max. 12 VDC, 30 mA)
• Reset Key
• Event
• Basic Event
• Motion detection (human and vehicle targets classification), video tampering alarm, exception
• Deep Learning Function
• Face Capture
• 12 VDC `b1 25%, 0.5 A, max. 6 W, `d85.5 mm coaxial power plug
• PoE: 802.3af, Class 3, 36 V to 57 V, 0.25 A to 0.15 A, max. 7.5 W
• `d8121.4 mm `d7 92.2 mm (`d84.8" `d7 3.6")
• 150 mm `d7 150 mm `d7 141 mm (5.9" `d7 5.9" `d75.6")
• Approx. 590 g (1.3 lb.)
• Approx. 850 g (1.9 lb.)
• 30 `b0C to 60 `b0C (-22 `b0F to 140 `b0F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions
• Language
• English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
• Approval
• EMC
• Ce-emc (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);
• Safety
• CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
• Ce-lvd (EN 60950-1:2005 + am 1:2009 + am 2:2013, IEC 62368-1:2014)
• CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
• Protection

Specifications

• Ds-2cd2186g2-i2.8mm
• 4K Acusense Fixed Dome Network Camera
• High quality imaging with 8 MP resolution
• Efficient H.265+ compression technology
• 1/1.8" Progressive Scan CMOS
• 3840 `d7 2160
• 1/3 s to 1/100,000 s
• Lens
• Lens Type
• Lens Mount
• M12
• Aperture
• F1.6
• Up to 30 m
• 850 nm
• 60 Hz: 24 fps (3840 `d7 2160)
• Main stream: H.265/H.264/H.264+/H.265+
• Sub-stream: H.265/H.264/MJPEG
• Third stream: H.265/H.264
• 32 Kbps to 16 Mbps
• H.264 Type
• H.265 Type
• H.264 and H.265 encoding
• U: mono sound
• U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
• U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• U: Yes
• Up to 6 channels
• iVMS-4200, Hik-Connect, Hik-Central
• Plug-in required live view: IE 10+
• Plug-in free live view: Chrome 57.0+, Firefox 52.0+
• Local service: Chrome 57.0+, Firefox 52.0+
• 120 dB
• ≥ 52 dB
• BLC, HLC, 3D DNR
• 33 languages
• FCC (47 CFR Part 15, Subpart B);
• RCM (as/nzs cispr 32: 2015);
• KC (KN 32: 2015, KN 35: 2015)
• UL (UL 60950-1);
• IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
