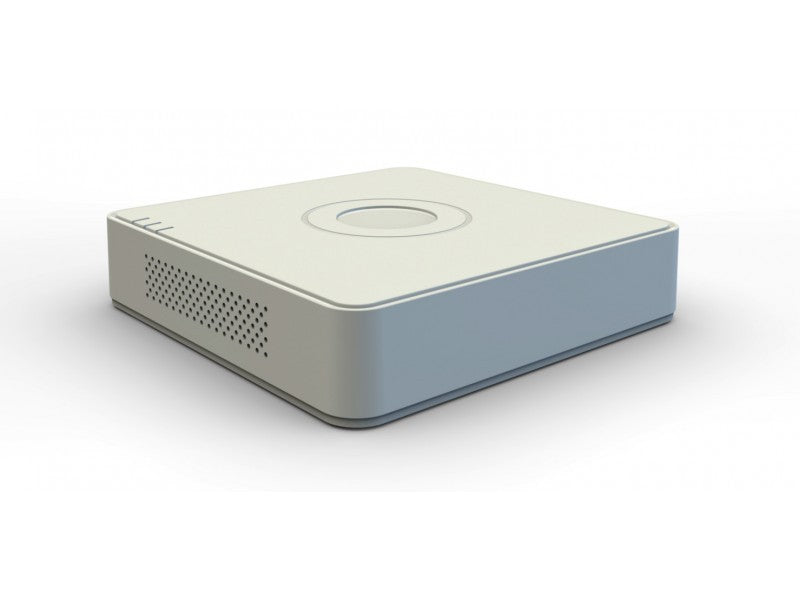

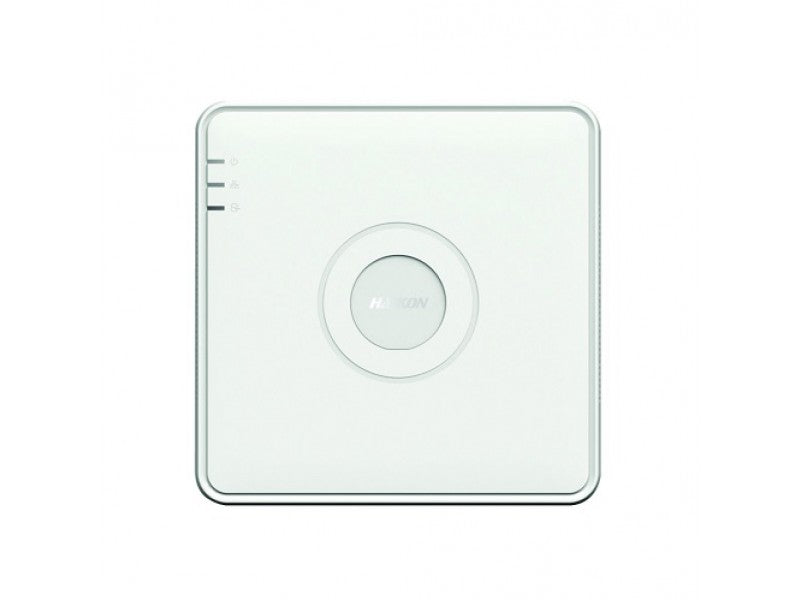

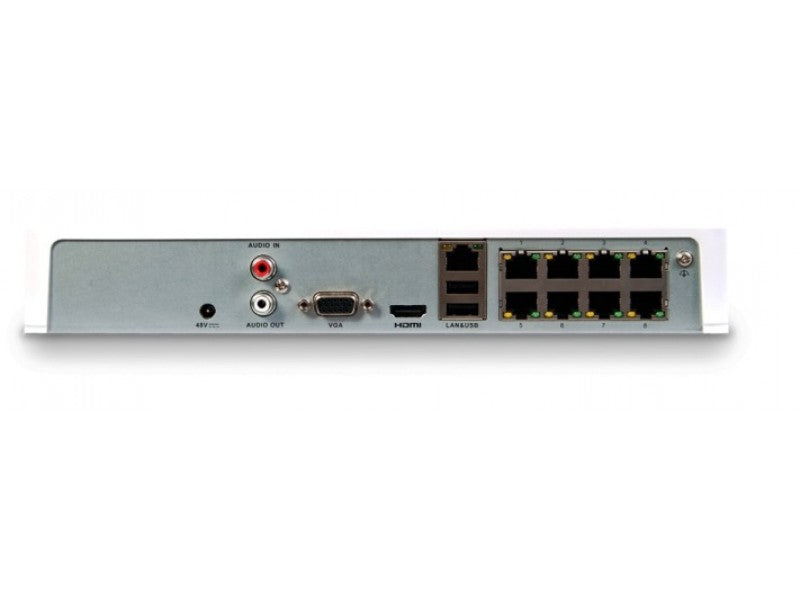

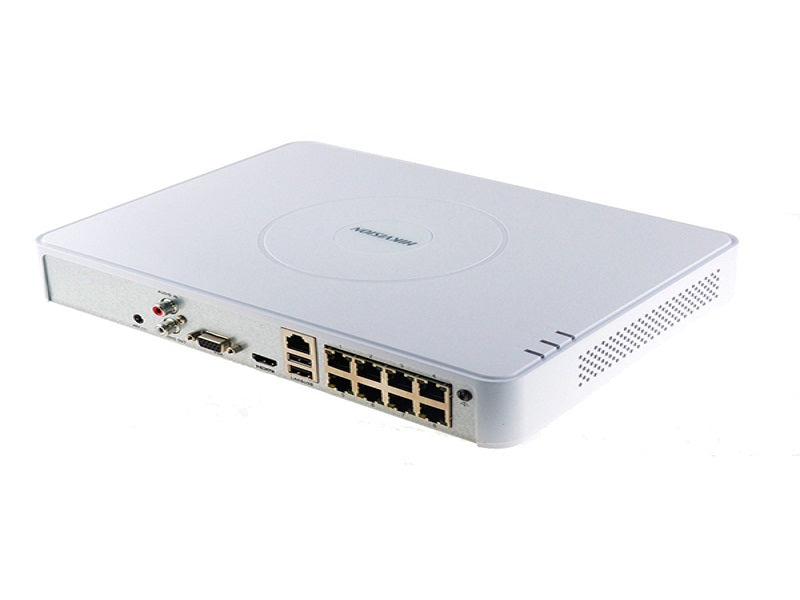

HIKVISION Nvr 8Ch 50Mbps 8 Poe 1 Sata

DS-7100NI-SN/P series NVR (Network Video Recorder) is a new generation recorder developed by Hikvision independently. Combined with multiple advanced technologies, such as audio and video decoding technology, embedded system technology, storage technology, network technology and intelligent technology. It can both work alone as a recorder and cooperate with other device to form a comprehensive surveillance system. The DS-7100NI-SN/P series NVR are widely applied in the areas of finance, public security, military, communication, transportation, education, etc..

Key features

• Connectable to the third-party network cameras like AXIS, ONVIF, PANASONIC,PSIA, SAMSUNG and SANYO.
• Up to 16 network cameras can be connected.
• Support live view, storage, and playback of the connected camera with up to the resolution of 2 megapixels.
• Simultaneous HDMI and VGA outputs at up to 1920`d71080 resolution.
• New GUI and support starting record with one key;
• Holiday recording;
• Realize instant playback for assigned channel during multi-channel display mode.
• Up to 8-ch synchronous playback at 4CIF resolution.
• Customization of tags, searching, and playing back by tags.
• Locking and unlocking record files.
• Support HDD quota mode; different capacity can be assigned to different channel.
• 1 SATA hard disk can be connected.
• For DS-7104&7108NI-SN/P, 1 self-adaptive 10M/100M network interface is provided, and for DS-7116NI-SN/P, 1 self-adaptive 10M/100M/1000M network interface is provided.
• Up to 8 independent 10 /100 Mbps PoE network interfaces are provided;
• Support Hikvision DDNS (Dynamic Domain Name System);
• Support network detection, including network delay, packet loss, etc.
• HDMI/VGA Output : 1 Channel Resolution; 1920 `d7 1080P /60Hz, 1280 `d7 1024 /60Hz, 1280 `d7 720 /6
• Decoding
• Live View / Playback Resolution : 1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF
• Capability : 8-ch @ 4CIF, 4-ch @ 720P, 2-ch@1080P
• Hard disk
• Network Interface : 1 RJ-45 10 /100 Mbps self-adaptive Ethernet interface
• PoE
• Interface : 8 independent 10 /100 Mbps PoE Ethernet interfaces
• Others
• Consumption (without hard disk and PoE) : ≤ 10W

Specifications

• 1080p-usb backup-hdmi-smart search
• IP Video Input : 8 Channe;
• Two-way Audio Input : 1-ch, RCA (2.0 Vp-p, 1k'd9)
• Incoming Bandwidth : 25Mbps
• Outgoing Bandwidth : 40Mbps
• Remote Connection : 128
• Audio Output : 1-ch, RCA (Linear, 1k'd9)
• SATA : 1 SATA interface for 1 HDD
• Capacity : Up to 4TB for each disk
• USB interface : 2 `d7 USB 2.0
• Max. Power : 100W
• Supported Standard : AF
• Power Supply : 48V DC
• Working Temperature : -10°C~+55°C
• Working Humidity : 10 % ~ 90 %
• Chassis : 1U chassis
• Dimensions : 285 `d7 210 `d7 45 mm
• Weight : ≤ 1 Kg ( without hard disk)
