HIKVISION Ptz 720P 23X-30Fps 120 Mtr

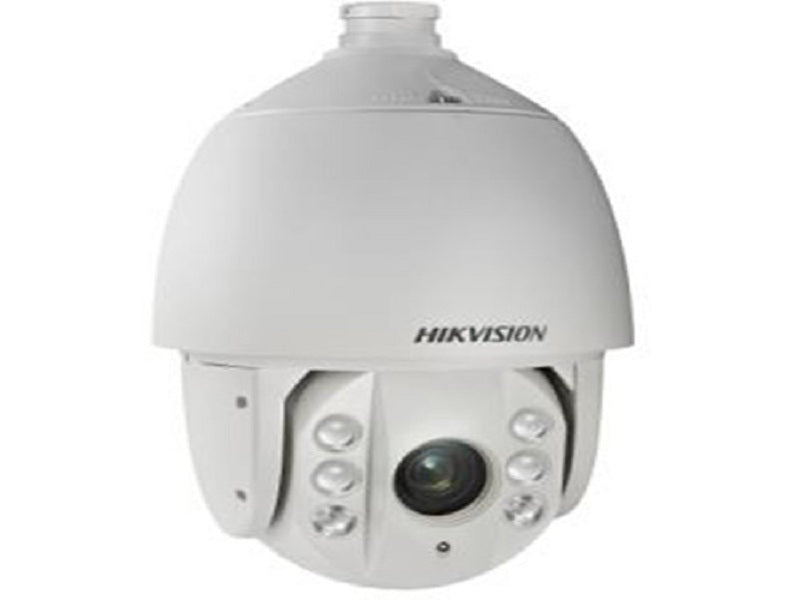

PAL and NTSC compatible, the TurboHD DS-2AE7123TI-A 1.3MP Outdoor PTZ Dome Camera from Hikvision is a versatile surveillance camera that can be used in a myriad of security solutions. This camera provides high-definition video over coaxial cables, allowing you to upgrade an existing surveillance setup while still keeping your BNC wiring. With a 1/3" CMOS sensor, the camera features 1280 x 720 video resolution, and it uses a 4-92mm varifocal lens for a 49 to 2.2`b0 horizontal field of view. You can pan the camera 360`b0, tilt it from -15`b0 to 90`b0, and optically zoom the camera up to 23x to choose the exact area you would like to monitor. You can also digitally zoom up to 16x for focusing within your field of view. IR LEDs provide up to 393.7` of night vision for use at all times, and the LEDs automatically adjust their light intensity depending on your zoom ratio setting. Backlight compensation, digital noise reduction, automatic gain control, and adjustable white balance enhancements assist in providing clear video footage, regardless of changing light levels. Furthermore, there are up to eight simultaneously programmable privacy masking areas for personalizing the camera to your specific requirements. The camera's housing is IP66-rated weatherproof for use outdoors, and it is protected against lightning, power surges, and transient voltage for additional security. Power-off memory function: restore PTZ & Lens status after reboot.

Key features

• Hikvision ds-2ae7123ti-a 1.3MP IR outdoor PTZ cctv analog security camera
• 1/3" high performance CMOS, up to 1280x720 resolution
• Lightning protection, surge protection and voltage transient protection
• Scheduled PTZ movement
• UTC(Up the Coax) function
• IR light MTBF reaching up to 30,000 hours
• Auto focus, auto white balance, backlight compensation and auto/manual day & night switch
• Privacy masks programmable
• PTZ
• Digital Wide Dynamic Range
• Night Vision (IR)
• True Day/Night
• Weatherproof
• No
• Yes
• White Balance: | Auto / Manual / ATW / Indoor / Outdoor
• Pan & Tilt
• Proportional Zoom: | Rotation speed can be adjusted automatically according to zoom multiples
• Patrol: | 8 patrols, up to 32 presets per patrol
• Pattern: | 4 patterns, with the total recording time not less than 10 minutes
• Park Action: | Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
• Infrared
• TVS 4,000V lightning protection, surge protection and voltage transient protection
• Mount Option: | Long-arm wall mount: DS-1602ZJ;Corner mount: DS-1602ZJ-corner; Pole Mount: DS-1602ZJ-pole; Power box mount:DS-1602ZJ-box

Specifications

• Key features of Hikvision DS-2AE7123TI-A
• 23x Optical Zoom
• IR Range up to 393 ft
• 3D intelligent positioning function
• 0 Lux minimum illumination
• Up to 120m IR distance
• 3D DNR, digital WDR
• IP66 rated.
• Manufacturer: Hikvision
• Product Type: Cameras
• Warranty: 3-year Manufacturer Warranty
• Color: White
• Environmental: Outdoor
• Night Vision Range (ft): 393ft
• 2
• 49
• Lens Size: 4~92mm
• Lens Type : Motorized (Automatic Zoom) Lens
• Max. FPS and Resolution: 30fps at 1280 x 720
• Resolution: 1.3MP
• Sensor Size: 1/3"
• Sensor Type: CMOS
• Technology: CCTV (Analog)
• Optical Zoom: 23x Optical Zoom
• Image Sensor: | 1/3" Progressive Scan CMOS
• Effective Pixels: | 1280(H)x720(V)
• Signal System: | PAL/NTSC
• Minimum Illumination: | Color: 0.05Lux@(F1.4,AGC ON)
• B/W: 0.005Lux@(F1.4,AGC ON)
• 0 lux with IR
• AGC: | Auto/Manual
• BLC: | on/off
• WDR: | dwdr
• Shutter Time: | PAL: 1-1/10,000s
• NTSC: 1-1/10,000s
• Day& Night: | ICR
• Privacy Masking: | 8 privacy masks programmable
• Lens
• Focal Length: | 4-92mm, 23x
• Zoom Speed: | Approx.3.0s(Optical Wide-Tele)
• Angle of View: | 49-2.2 degree(Wide-Tele)
• Minimum Working Distance: | 10-1000mm (Wide-Tele)
• Aperture Range: | F1.4-F3.5
• Pan Range: | 360`b0endless
• Pan Speed: | Pan Manual Speed: 0.1`b0-160`b0/s,
• Pan Preset Speed: 240`b0/s
• Tilt Range: | -15`b0-90`b0 (Auto Flip )
• Tilt Speed: | Tilt Manual Speed: 0.1`b0-120`b0/s,
• Tilt Preset Speed: 200`b0/s
• Number of Preset: | 256
• Power loss recovery: | Support
• PTZ Position Display: | ON/OFF
• IR irradiation distance: | 120m
• IR irradiation angle: | Adjustable by zoom
• Turbo HD Output: | 1 turbo HD720p output, BNC
• RS-485 Protocols: | HIKVISION, Pelco-P, Pelco-D, self-adaptive
• Menu Language: | English
• Power Supply: | 24V AC
• Power Consumption: | Max. 30W(IR: 9W, Heater: 6W)
• Working Temperature/Humidity: | -30 `b0C-65`b0C(-22`b0F-149`b0F)
• 90% or less
• Protection Level: | IP66 standard (outdoor dome)
• Dimensions: | `d6220`d7353.4mm (`d68.66”`d713.91”)
• Weight (approx.): | 4.5kg(9.92 Ibs)
