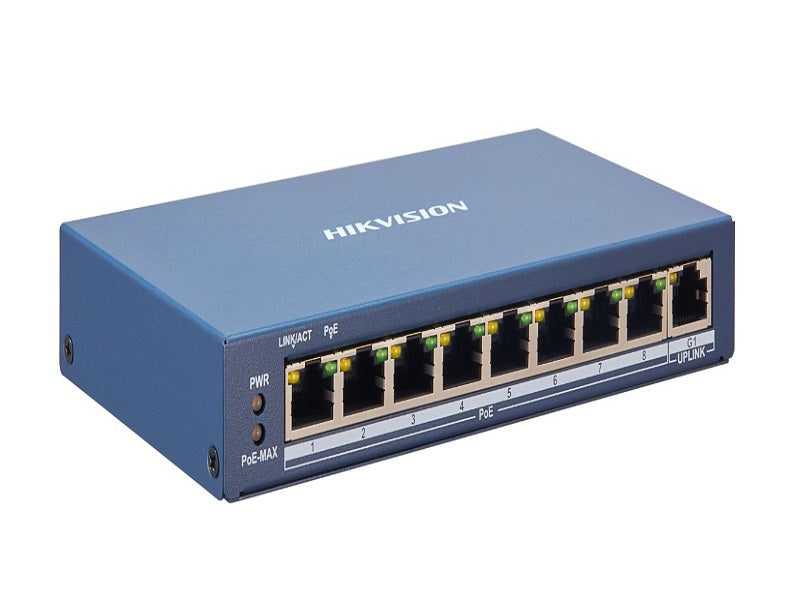

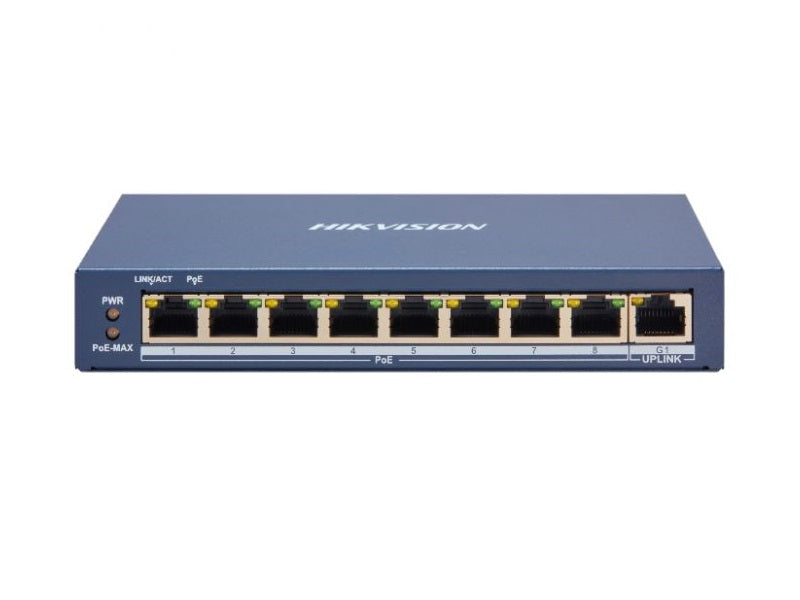

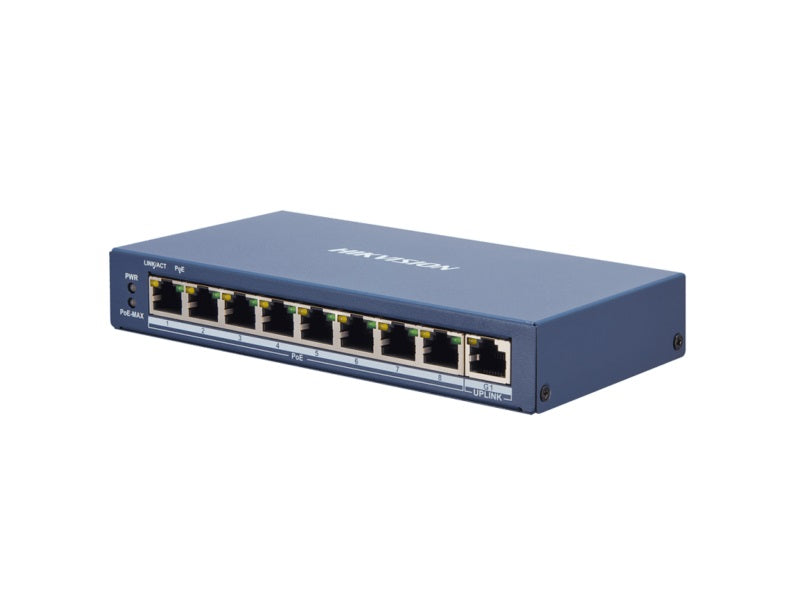

HIKVISION Smart Managed 8Port 100M Poe

8 `d7 100 Mbps PoE RJ45 ports, 1 `d7 gigabit network RJ45 port. IEEE 802.3at/af standard for PoE ports.

Key features

• Network topology management, alarm push, network health monitor.
• 6 KV surge protection for PoE ports.
• Up to 300 m long-range transmission.
• AF/AT camera can reach up to 300 m in extend mode.
• 8 `d7 10/100 Mbps PoE ports, and 1 `d7 Gigabit RJ45 port
• Working Mode
• Extend mode
• IEEE 802.3, IEEE 802.3u, IEEE 802.3x, and IEEE 802.3ab
• Forwarding Mode
• Store-and-forward switching
• MAC Address Table
• Internal Cache
• Switching Capacity
• Packet Forwarding Rate
• PoE Power Supply
• PoE Standard
• PoE Power Pin
• PoE Power Budget
• Software Function
• Support rate, flow control, and switch configuration
• Device Maintenance
• Support remote upgrade, recovering default parameters, viewing logs, configuring basic network parameters.
• PoE Function
• IEEE 802.3at/af device provides power supply.
• PoE Configuration
• PoE watchdog: Ports 1 to 8 auto detect and restart the cameras that do not respond.
• Shell
• Metal material, fan-free design
• 170 mm `d7 27.6 mm `d7 93.1 mm (4.76” `d7 3.47” `d7 1.09”)
• Relative Humidity
• Max. Power Consumption
• Approval
• EMC
• FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
• Safety
• UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
• Chemistry
• CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No.1907/2006)

Specifications

• 8 Port Fast Ethernet Smart POE Switch
• RJ45 port, full duplex, MDI/MDI-X adaptive
• Standard mode (default)
• Standard
• 16 K
• 4 Mbits
• 3.6 Gbps
• 2.6784 Mpps
• IEEE 802.3af, IEEE 802.3at
• End-span: 1/2(-), 3/6(+)
• Mid-span: 4/5(+), 7/8(-)
• 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
• Ports 1 to 8
• 30 W
• 110 W
• PoE enabling: Support
• 0.35 kg (0.77 lb)
• 1.114 kg (2.45 lb)
• Dimension (W `d7 H `d7 D)
• 0`b0C to 40`b0C (32`b0F to 104`b0F)
• 40`b0C to 85`b0C (-40`b0F to 185`b0F)
• 5% to 95% (no condensation)
• 48 VDC, 2.5 A
• 120 W
