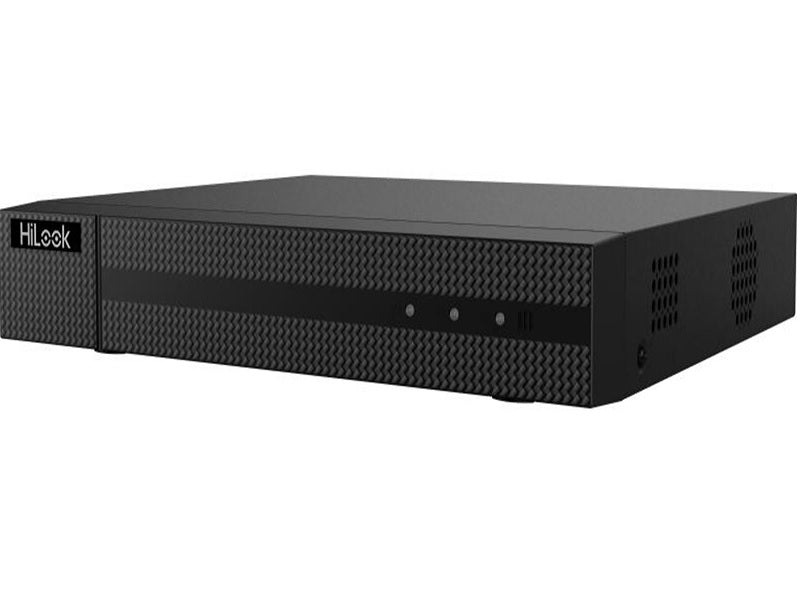

HILOOK 8Ch 1080P Lite 1U Dvr 208G

Supports 1080p lite, and when enabled the image effect is similar with 1080p. Smart search for efficient playback.

Key features

• Long distance transmission over UTP and coaxial cable
• Encoding abilty up to 1080p lite @ 12 fps
• One HDD for continuous video recording
• Perimeter Protection
• Line Crossing Detection/Intrusion Detection
• Recording
• Encoding Resolution
• Frame Rate
• Dual-Stream
• Support
• Stream Type
• BNC interface (1.0 Vp-p, 75 `d9), supporting coaxitron connection
• 1-ch, 1920 `d7 1080/60Hz, 1280 `d7 1024/60Hz, 1280 `d7 720/60Hz, 1024 `d7 768/60Hz
• Reuse the first audio input
• Synchronous Playback
• Remote Connection
• TCP/IP, PPPoE, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
• Sata
• Up to 6 TB capacity for each disk
• N/A
• Alarm In/Out
• Consumption
• Working Temperature
• 10 `b0C to 55 `b0C (14 `b0F to 131 `b0F)
• Working Humidity
• 260 `d7 222 `d7 45 mm (10.2 `d7 8.7 `d7 1.8 inch)

Specifications

• Dvr-208g-f1
• 8-ch 1080p Lite 1U H.264 DVR
• 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
• 1-ch
• H.264+/H.264
• When 1080p lite mode not enabled: 720p/WD1/4CIF/VGA/CIF
• When 1080p lite mode enabled: 1080p lite/HD 720p lite/WD1/4CIF/VGA/CIF
• 720p/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N)
• WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
• 1080p lite/HD 720p lite/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N)
• 32 Kbps to 4 Mbps
• G.711u
• 64 Kbps
• 2-ch (up to 10-ch)
• Up to 5 MP resolution
• Support H.264+/H.264 IP cameras
• 8-ch
• 1080p25, 1080p30, 720p25, 720p30
• 1-ch, RCA (2.0 Vp-p, 1 K'd9)
• 8-ch via coaxial cable
• 1-ch, RCA (Linear, 1 K'd9)
• 64
• 1, RJ45 10M/100M self-adaptive Ethernet interface
• 1 SATA interface
• Capacity
• Rear panel: 2 `d7 USB 2.0
• 12 VDC, 1.5 A
• ≤ 12 W
• 10% to 90%
• Dimension (W `d7 D `d7 H)
• ≤ 1 kg (2.2 lb)
