HILOOK 8Ch 2Mp eDVR 1024Gb Bullet Kit

8ch eDVR - 8 x2Mp Bullet - 8 x 20m Cable. HILOOK 8-ch 1080p Mini 1U H.265 AcuSense DVR - DVR-E08Q-B.

Key features

• Minimalist eSSD design brings low power consumption
• Integrated storage design provides the plug-and-play device use
• Scene-adaptive bitrate control technology would precisely allocate videos in eSSD according to the
• Actual scene
• Full channel recording at up to 3K/5 MP Lite resolution
• Smart Function;
• Smart search for efficient playback
• Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
• Quick search by object or event type is supported;
• Perimeter Protection;
• BNC interface (1.0 Vp-p, 75 d9), supporting coaxitron connection HDTVI Input - 5 MP@25 fps, 3K@25 fps, 4 MP@25 fps, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps, 720p@50 fps, 720p@60 fps AHD Input - 5 MP@25 fps, 3K@25 fps, 4 MP@25 fps, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps, 720p@50 fps, 720p@60 fps HDCVI Input - 5MP25, 4MP25, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60 CVBS Input - Support HDMI Output - 1-ch, 1920d7 1080/60 Hz, 1280 d7 1024/60 Hz, 1280d7 720/60 Hz
• VGA Output - 1-ch, 1920 d7 1080/60 Hz, 1280d7 1024/60 Hz, 1280 `d7 720/60 Hz
• Video Output Mode - HDMI/VGA simultaneous output
• Recording;
• 3K/5MPLITE @12FPSa3bb4 MP lite@15 fps; 1080p lite/720p/WD1/4CIF@25 fps (P)/30 fps (N)
• 5MP/3K lite@12fps; 4 MP lite/@15 fps; 1080p lite/720p/WD1/4CIF@25 fps (P)/30
• fps (N)
• Video Bitrate - According to the actual scene, scene-adaptive bitrate control technology would automatically allocates appropriate bitrate to ensure the stability of recording period.
• Note: In order to protect privacy, the device will only record video (without audio) by default. If you want to record audio, you shall manually enable audio recording. For operation details, refer to the user manual.
• Network;
• Network Protocol - TCP/IP, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP™, HTTPS
• Network Interface - 1, RJ45 10/100 Mbps self-adaptive Ethernet interface
• Auxiliary Interface;
• The device can store about 2 weeks videos for 8-ch analog cameras (default parameters), this estimation is for reference only.
• Alarm In/OutN/A
• High quality imaging with 2 MP, 1920 d7 1080 resolution Smart-Hybrid light, optimize your security with flexible lighting options 2.8 mm, 3.6 mm fixed focal lens Up to 20 m IR distance for bright night imaging Up to 20 m white light distance for bright night imaging One port for 4 switchable signals (TVI/AHD/CVI/CVBS) Water and dust resistant (IP66) Image Sensor 2 MP CMOS Max. Resolution 1920 (H)d7 1080 (V)
• Min. Illumination
• 0.02 Lux @ (F2.2, AGC ON), 0 Lux with IR
• Shutter Time
• PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
• Day & Night
• ICR
• Angle Adjustment
• Pan: 0 to 360b0, Tilt: 0 to 75b0, Rotate: 0 to 360b0 Signal System PAL/NTSC Lens Lens Type 2.8 mm, 3.6 mm fixed focal lens Focal Length & FOV 2.8 mm, horizontal FOV: 97b0, vertical FOV: 54b0, diagonal FOV: 113b0
• 3.6 mm, horizontal FOV: 77b0, vertical FOV: 43b0, diagonal FOV: 90`b0

Specifications

• Built In 1024Gb SSD
• Deep learning-based motion detection 2.0
• Motion Detection 2.0;
• Human/Vehicle Analysis - Up to 8-ch
• 2-ch
• Up to 6 MP resolution
• Support H.265+/H.265 IP cameras
• 8-ch
• Audio Input - 8-ch via coaxial cable
• Audio Output - 1-ch via HDMI
• Synchronous Playback - 4-ch
• Video Compression - H.265 Pro/H.265
• 5MPLite/3K/4MPLite/1080p/1080pLite/720p/WD1/4CIF;
• 5MP/3KLite/4MPLite/1080p Lite/720p/WD1/4CIF;
• 1080p/720p@15 fps; WD1/4CIF@25 fps (P)/30 fps (N)
• For 720p stream access: 720p/WD1/4CIF@25 fps (P)/30 fps (N)
• Audio Compression - G.711u
• 96 Mbps
• Incoming bandwidth: 8 Mbps
• Remote Connection - 64
• Built-in 1024 GB eSSD (960 GB available)
• USB Inter - faceRear panel: 2 `d7 USB 2.0
• Lens Mount
• M12

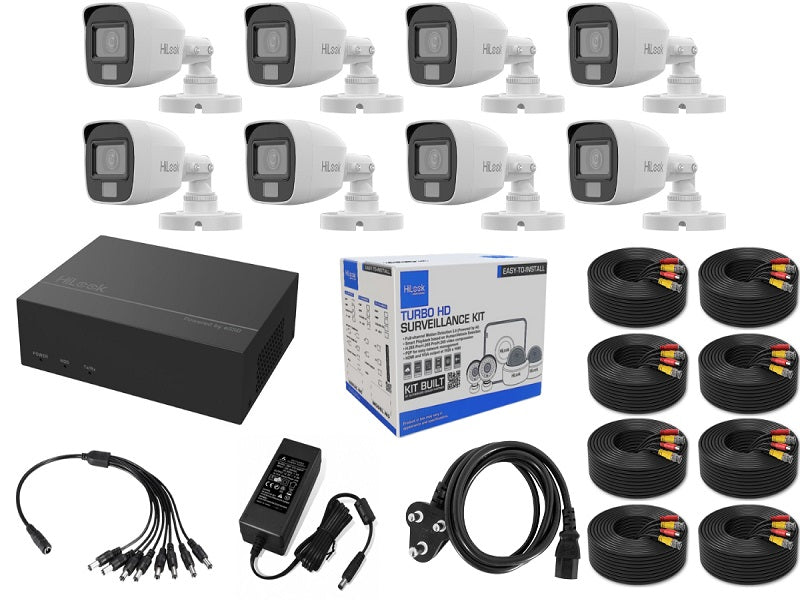

• 1 x E-DVR 1024gb Inbuilt
• 8 x Cameras
• 1 x Power Supply
• 1 x 1Way to 8way cable
• 1 x Power Cable
• 8 x CCTV Readymade Cables
