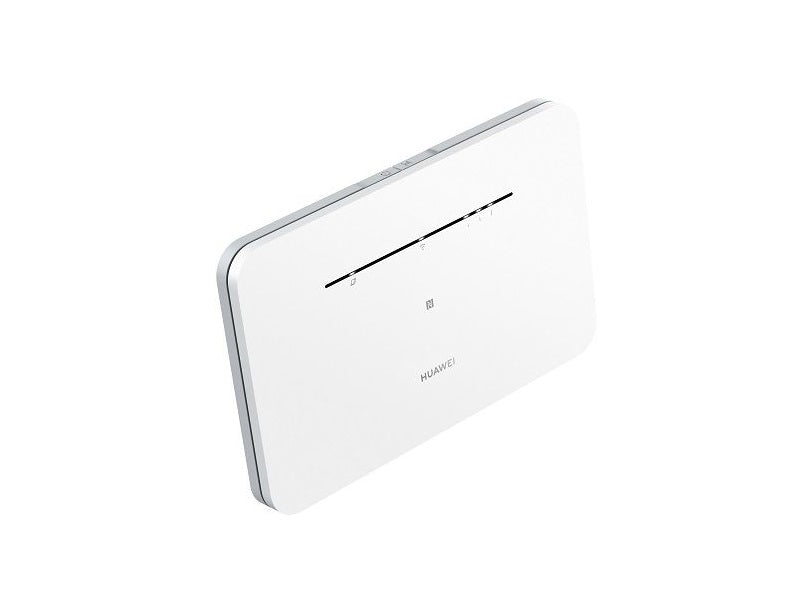

HUAWEI 4G Cpe 3S Router Lte 150Mbps

The HUAWEI LTE CPE B311B-853is a Long Term Evolution (LTE) wireless gateway for multiple users in household or small office environments. It enables users to access the Internet. The B311B-853supports 3GPP Release 9with LTE CAT4.The supported service functions are as follows:.

Key features

• Data service up to FDD LTEDL 150Mbpsand UL 50Mbps, TDD LTEDL 110Mbps and UL 10Mbps
• Wi-Fi: 802.11 b/g/nand 802.11n2.4GHz Wi-Fi2x2 MIMO up to 300Mbps. Maximum Users: 32
• 1 GE port for LAN/WAN, 3GE ports for LAN
• Routing mode: NAT enable (Default)/ Bridge mode (Customized support required)
• Customer management via WebUI or HUAWEI AI Life APP
• Huawei Firmware Over the Air (HOTA)
• Supports dual network dual pass and game speed acceleration
• Technical standard
• Working band/frequency

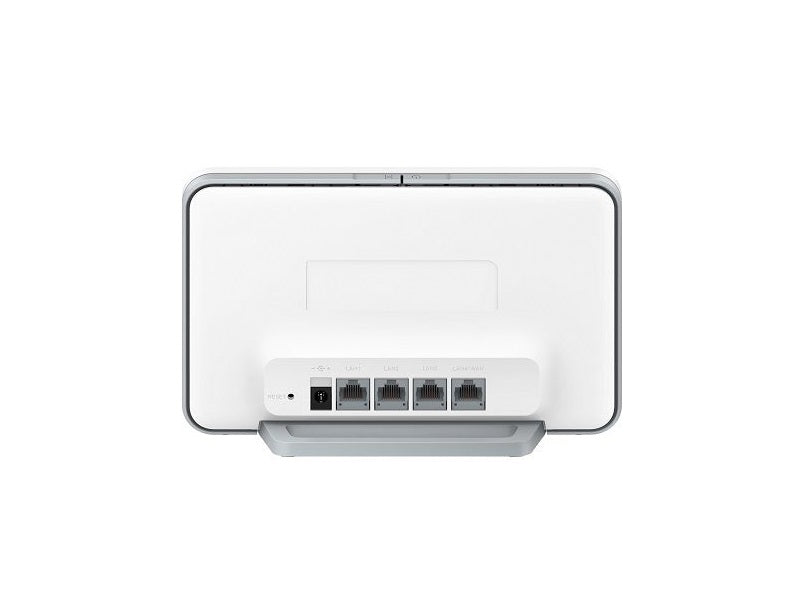

• One LAN/WAN port (RJ45), three LAN ports (RJ45)

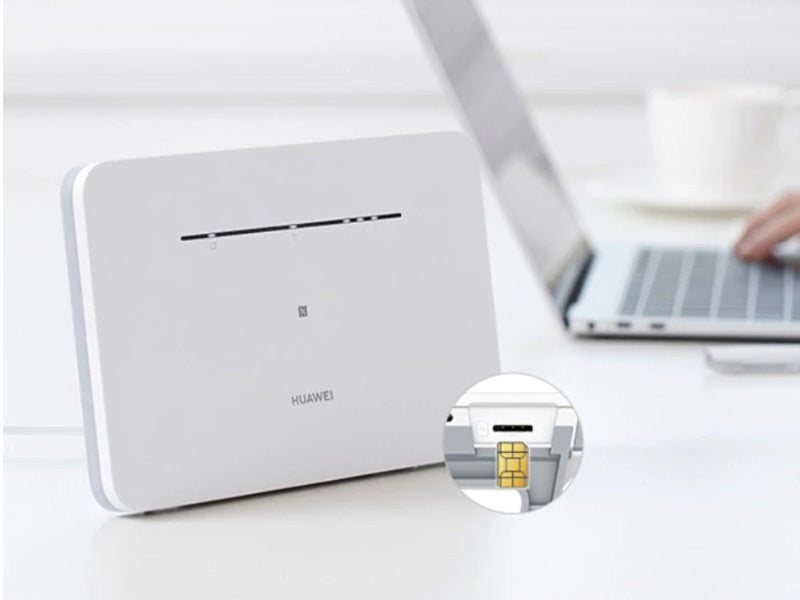

• One SIM card slot (nano-SIM)
• Antennas
• Built-in LTE/UMTS primary antenna
• Built-in LTE/UMTS secondary antenna
• Built-in NFC antenna
• LED Indicators
• One Network status indicator
• Steady on white: Connected to an LTE/UMTS/carrier broadband/ dual network dual pass enabled.
• Steady on red: Internet access wizard not completed/SIM card not detected/No network available.
• One Wi-Fi indicator
• Steady on white: Wi-Fi is enabled.
• Flash slowly white: A pairable HiLink device is detected.
• Flash quickly white: HiLink pairing is in progress/WPS connection is in progress.
• NOTE: The indicator starts to flash slowly only when B311B-853 detects a new HiLink device.
• HiLink devices include Honor routers, Honor set-up boxes, Honor handsets (EMUI 5.0 and later), and more.
• Three of signal strength indicators
• More signal bars indicate a stronger signal.
• Buttons
• One Power ON/OFF switch
• One H button
• The Wi-Fi indicator flashes slowly when the router detects a HiLink device. Press the H button to connect the HiLink device to the router's Wi-Fi.
• When the Wi-Fi indicator is steady on, press the H button to enable WPS.
• One Reset button
• AC/DC power supply
• 198 mm (Width) x 125 mm (High) x 25 mm (Deep)
• Certification/Compliance
• China Type Approval
• SRRC Type Approval
• RoHS
• Services and Applications
• Data Services
• The B311B-853can access the Internet through mobile networks and Ethernet networks. By connecting to the B311B-853using Wi-Fi or a network cable, users can obtain access to high-speed Internet services and establish a local area network (LAN).
• Accessing the Internet through a Mobile Network
• The B311B-853can access the Internet through mobile networks.
• Accessing the Internet through an Ethernet Network
• The B311B-853`sLAN/WAN port can be connected to a wall-mounted Ethernet port using a network cable.
• SMS
• The B311B-853supports message writing/sending/receiving and group sending (up to 50 -contacts at a time).
• Security Service
• The B311B-853supports comprehensive and robust security services. It provides a firewall function and PIN protection mechanisms. These features allow users to connect their computers to the Internet and simultaneously protect their computers against security threats from the Internet.
• Firewall Service
• The B311B-853supports the enabling or disabling of a firewall on the network connection, which protects the device and network from attacks by hackers on the Internet and controls access to the Internet.
• MAC Filtering
• The B311B-853supports configuration of the Media Access Control (MAC) address to restrict network access.
• The gateway supports the following user authentication protocols for Wi-Fi:
• No encryption
• VPN Function
• VPN Client
• VPN tunneling involves establishing and maintaining a logical network connection (that may contain intermediate hops). On this connection, packets constructed in a specific VPN protocol format are first encapsulated within some other base or carrier protocol, then transmitted between the VPN client and server, and finally decapsulated on the receiving side.
• The B311B-853supports L2TP and PPTP tunneling protocols.
• VPN Pass-Through
• The B311B-853supportsL2TP/PPTPVPN pass-through for the LAN side device. The LAN side device can create a VPN tunnel to the VPN server.
• HiLink
• Supports up to 5HiLink devices to connect to B311B-853 through the H button to create an expanded network.
• Supports quick connection between a HiLink device (such as Honor set-up boxes and Honor handsets running on EMUI 5.0 and later) and B311B-853through the H button.

Specifications

• Working band: LTE: B1/B3/B5/B8/B34/B38/B39/B40(2300~2390MHz)/B41(2545~2655MHz), UMTS: B1/B8
• VPN client service (L2TP, PPTP)
• WAN 3GPP Release 9
• LAN ieee 802.3/802.3u
• Wi-Fi IEEE 802.11b/g/n
• LTE b1/b3/b5/b8/b34/b38/b39/b40(2300~2390mhz)/b41(2545~2655mhz)
• Umts B1/B8
• Wi-Fi 2.422 GHz – 2.482 GHz
• Built-in Wi-Fi 2*2 2.4 GHz antenna
• Off: Wi-Fi is disabled.
• < 12 W
• AC (input): 200V-240V 50Hz/60Hz
• DC (output): 12V/1A
• About 246 g (excluding the power adapter)
• Temperature
• Working temperature: 0`b0C to 40`b0C
• Storage temperature: -20`b0C to +70`b0C
• Humidity
• 5% – 95% (non-condensing)
• 3C
• WEP, wpa2-psk(aes), wpa/wpa2-psk(tkip/aes).
• 1x Wireless Gateway
• 1x Power supply adapter
• 1x Quick Start
