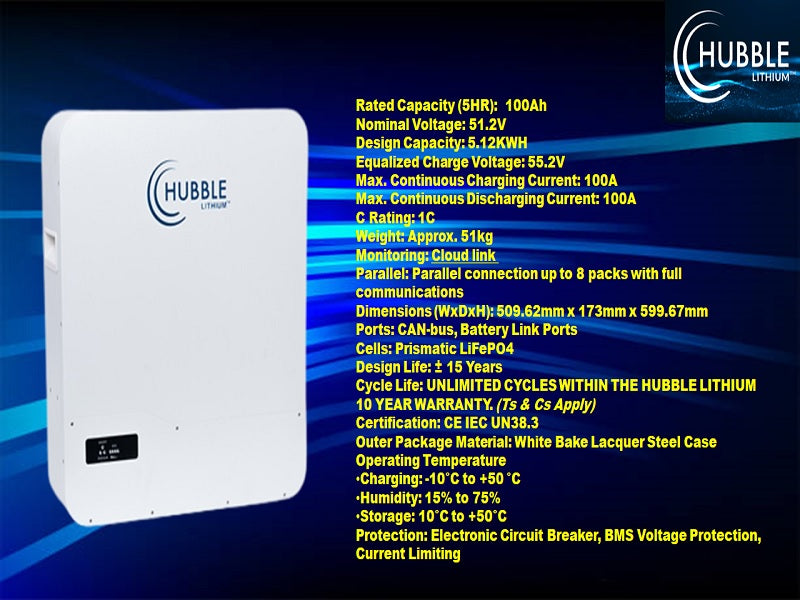

HUBBLE Am5 5.12Kwh 51.2V Li-Ion Battery

Heavy duty side handles for easy handling and mounting on the wall. CAN Bus, fully integrates and communicates with leading Inverter brands.

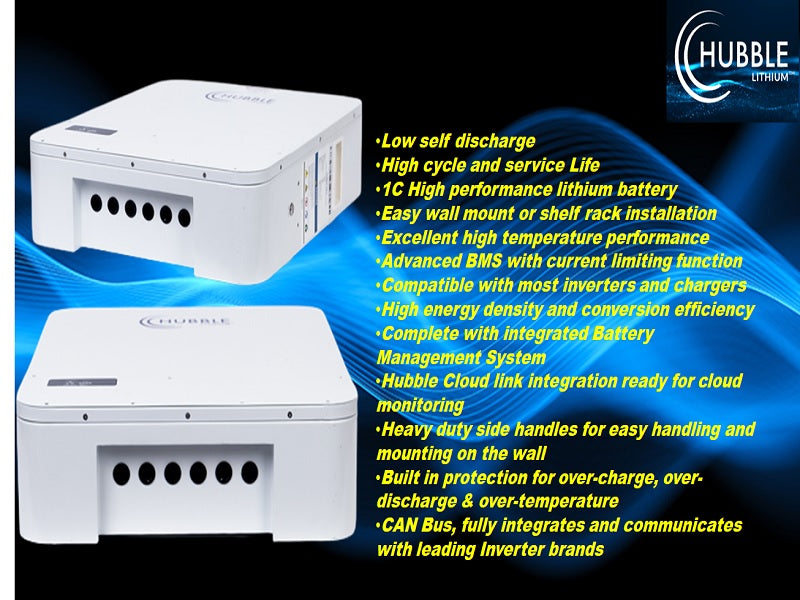

Key features

• Low self discharge
• High cycle and service Life
• Easy wall mount or shelf rack installation
• Excellent high temperature performance
• Advanced BMS with current limiting function
• Compatible with most inverters and chargers
• High energy density and conversion efficiency
• Complete with integrated Battery Management System
• Hubble Cloudlink integration ready for cloud monitoring
• Built in protection for over-charge, over-discharge & over-temperature
• Max. Continuous Discharging Current: 100A
• Parallel: Parrallel connection up to 8 packs with full communications
• Cycle Life: UNLIMITED CYCLES WITHIN THE HUBBLE LITHIUM 10 YEAR WARRANTY. (Ts & Cs Apply)

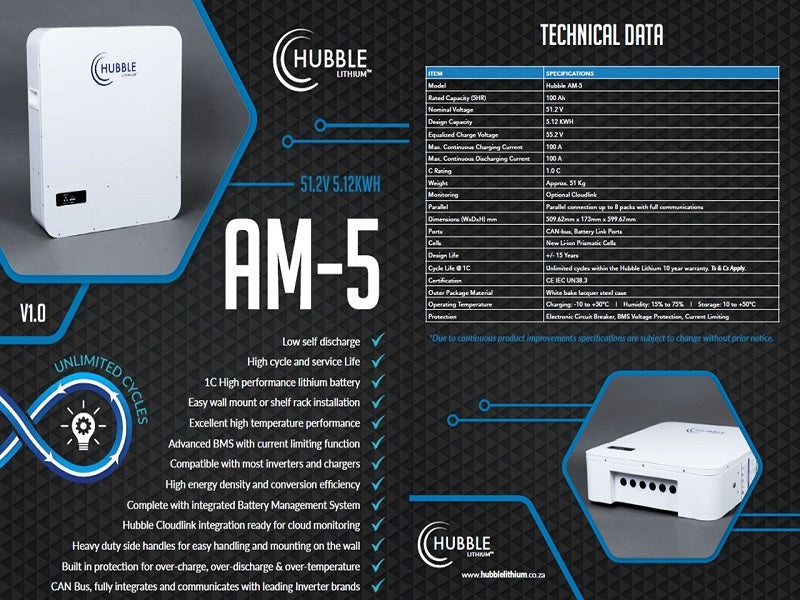

Specifications

• 1C High performance lithium battery
• Rated Capacity (5HR): 100Ah
• Nominal Voltage: 51.2V
• Design Capacity: 5.12KWH
• Equalized Charge Voltage: 55.2V
• Max. Continuous Charging Current: 100A
• C Rating: 1C
• Weight: Approx. 51kg
• Monitoring: Cloudlink
• Dimensions (WxDxH): 509.62mm x 173mm x 599.67mm
• Ports: CAN-bus, Battery Link Ports
• Cells: Prismatic LiFePO4
• Design Life: `b1 15 Years
• Certification: CE IEC UN38.3
• Outer Package Material: White Bake Lacquer Steel Case
• Charging: -10`b0C to +50 `b0C
• Humidity: 15% to 75%
• Storage: 10`b0C to +50`b0C
