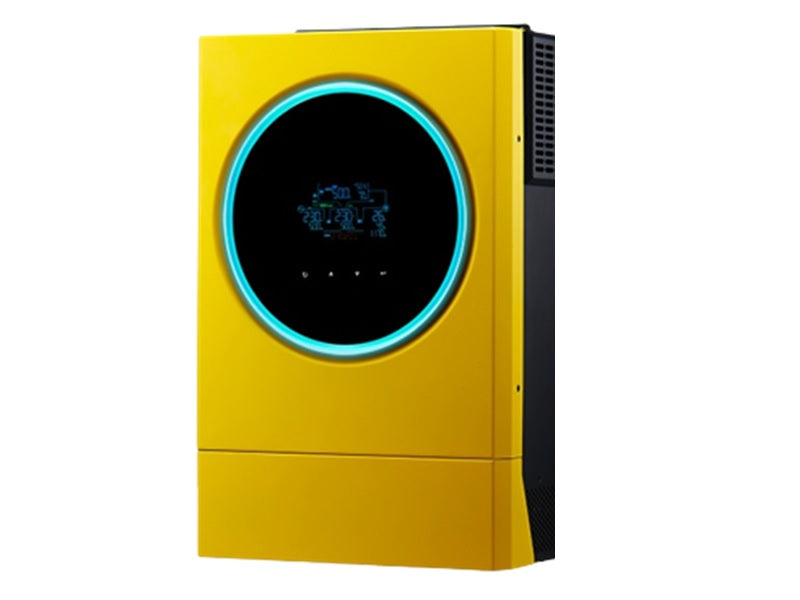

KODAK 6.2Kw 48V Solar Off-Grid Inverter

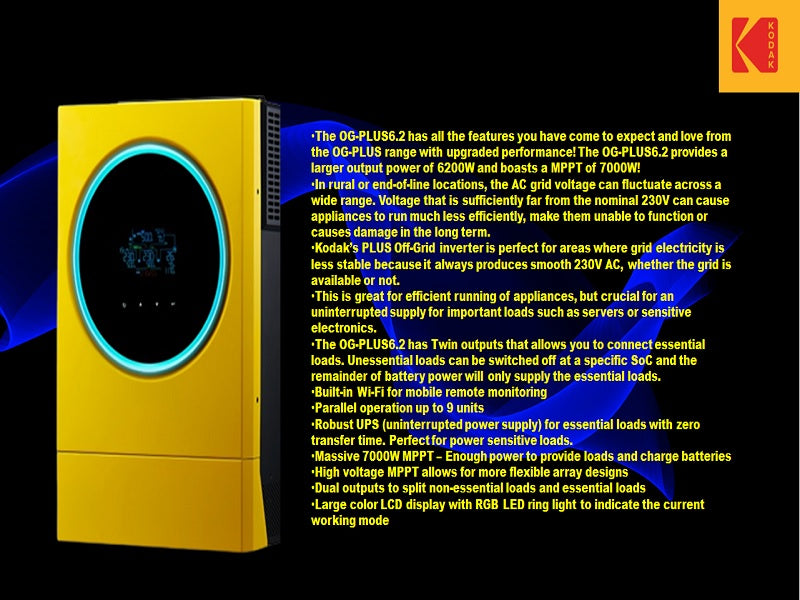

The OG-PLUS6.2 has all the features you have come to expect and love from the OG-PLUS range with upgraded performance! The OG-PLUS6.2 provides a larger output power of 6200W and boasts a MPPT of 7000W! In rural or end-of-line locations, the AC grid voltage can fluctuate across a wide range. Voltage that is sufficiently far from the nominal 230V can cause appliances to run much less efficiently, make them unable to function or causes damage in the long term.

Key features

• Kodak off-grid hybrid inverter
• Kodak’s PLUS Off-Grid inverter is perfect for areas where grid electricity is less stable because it always produces smooth 230V AC, whether the grid is available or not.
• This is great for efficient running of appliances, but crucial for an uninterrupted supply for important loads such as servers or sensitive electronics.
• The OG-PLUS6.2 has Twin outputs that allows you to connect essential loads. Unessential loads can be switched off at a specific SoC and the remainder of battery power will only supply the essential loads.
• Built-in Wi-Fi for mobile remote monitoring
• Robust UPS (uninterrupted power supply) for essential loads with zero transfer time. Perfect for power sensitive loads.
• Massive 7000W MPPT – Enough power to provide loads and charge batteries
• High voltage MPPT allows for more flexible array designs
• Dual outputs to split non-essential loads and essential loads
• Large color LCD display with RGB LED ring light to indicate the current working mode

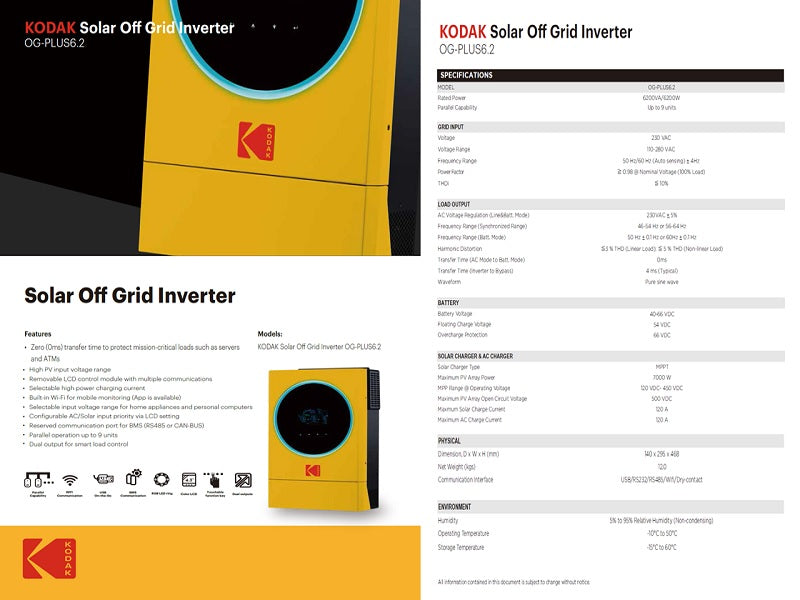

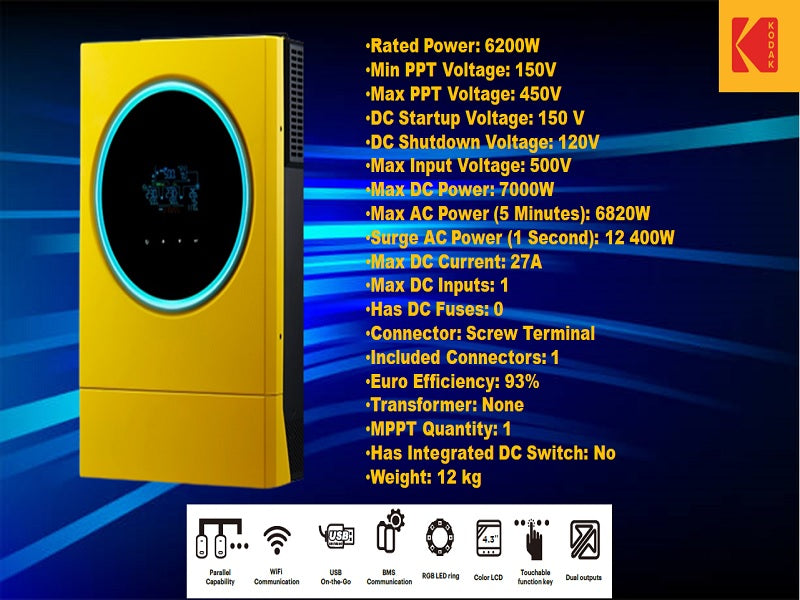

Specifications

• Rated Power: 6200W
• Min PPT Voltage: 150V
• Max PPT Voltage: 450V
• DC Startup Voltage: 150 V
• DC Shutdown Voltage: 120V
• Max Input Voltage: 500V
• Max DC Power: 7000W
• Max AC Power (5 Minutes): 6820W
• Surge AC Power (1 Second): 12 400W
• Max DC Current: 27A
• Max DC Inputs: 1
• Has DC Fuses: 0
• Connector: Screw Terminal
• Included Connectors: 1
• Euro Efficiency: 93%
• Transformer: None
• MPPT Quantity: 1
• Has Integrated DC Switch: No
• Weight: 12 kg
• Warranty: 3 years
• Parallel operation up to 9 units
