MECER 1200Va 720W

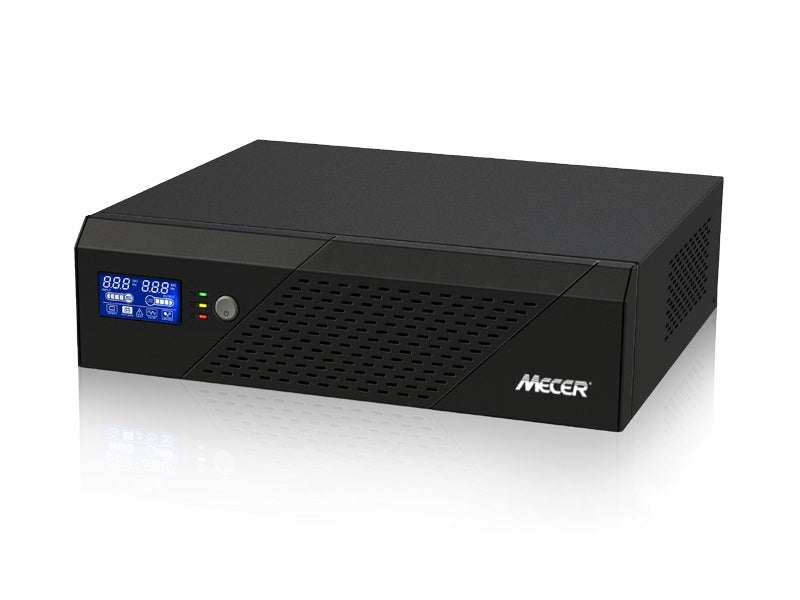

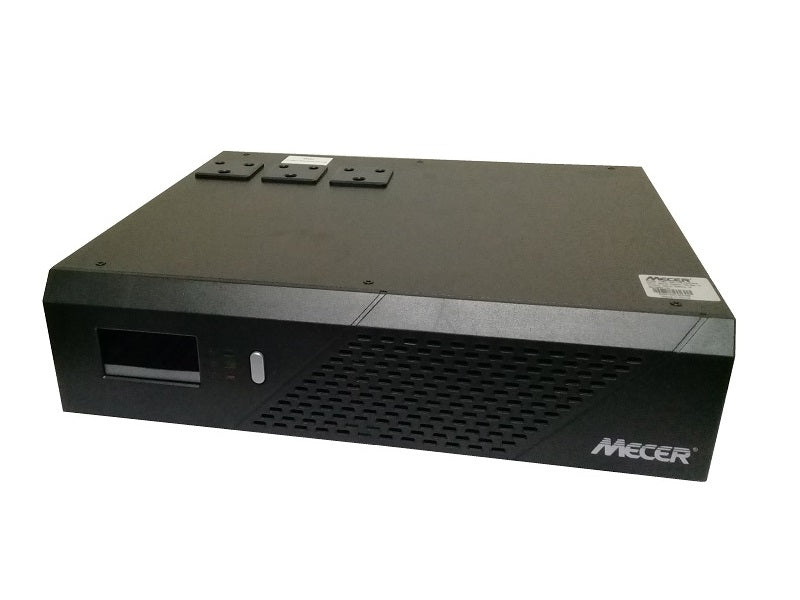

MECER 1200Va 720W 12V Inverter
MECER 1200Va 720W 12V Inverter

MECER 1200Va 720W 12V Inverter

GENERAL
R 2,699
Estimated delivery 2–4 working days
In stock
FREE NATIONWIDE DELIVERY
on orders over R 500
Quantity
In stock
  • Interest Free Payments available
  • Hassle Free Returns within 7 days
  • 6-month limited warranty
Price: R 2,699

Description

AVR mode:Output voltage = Input voltage 1.2 at Input voltage - Output Frequency Same as input. Bypass Mode (in VA and Watts) Load >110%+/-15% , alarm 5 mins then fault.

Key features

  • Simulated sine wave inverter
  • Built-in AVR for voltage regulation
  • Overload and short circuit protection
  • LCD display for comprehensive information
  • Waveform Modified Sine-wave
  • Load >130% +/-15%, fault immediately.
  • AVR Mode (in VA and Watts)at Input voltage > 170VAC Load >100%+/-15%, go to bypass mode
  • AVR Mode (in VA and Watts)at Input voltage < 170VAC Load >60%+/-15%, go to bypass mode
  • Battery Mode (in W) Load>110% +/-15%, overload alarm for 15s, and then will switch to fault mode for 10s. Then unit will re-start for 5 times Load>120% +/-15% , fault & cut off O/P immediately.
  • Line Mode Breaker
  • Acceptable Battery Type Rechargeable lead-acid battery, Deep discharge battery
  • Polarity Reserve Protection Yes
  • Dimension, D X W X H (mm) 350 x 90 x 300
  • Storage Temperature -15 degrees C to 50 degrees C

Specifications

  • Wide input voltage range: 90-280 VAC
  • 12VDC available
  • MODEL Mecer IVR-1200LBK
  • Capacity 1200 VA / 720 W
  • Power factor 0.8
  • Input Voltage range 90-280VAC
  • Bypass mode: 0utput voltage same as input voltage
  • Output Voltage 230Vac +/-10%
  • Transfer Time 20ms typical
  • Battery Mode Current limit +Firmware Protection
  • Battery Voltage 12VDC
  • Charger available I/P range 90 280V
  • Constant Current Charger Voltage 14.3VDC +/-2%
  • Floating Charge Voltage 13.7VDC +/-2%
  • Maximum Charge Current 10A or 20A
  • DC Start Voltage >11VDC
  • Net Weight (kgs) 4.5
  • Operating Humidity 0 to 90% Relative Humidity(Non-condensing)
  • Operating Temperature 0 degrees C to 40 degrees C

Frequently Bought Together Frequently bought

Product Information

Categories General / Solar Solutions
Brand Mecer
Model Mecer IVR-1200LBK
Capacity 1200 VA / 720 W
Power Factor 0.8
Input Voltage 90-280 VAC
Output Voltage 230 VAC +/-10% (Battery)
Waveform Modified Sine-wave
Transfer Time 20 ms typical
Battery Voltage 12 VDC
Battery Type Rechargeable lead-acid, Deep discharge
Max Charge Current 10A or 20A
Dimensions 350 x 90 x 300 mm
Weight 4.5 kg
Operating Temp 0 to 40 C
Barcode IVR-1200LBKS
