Description
Product Description

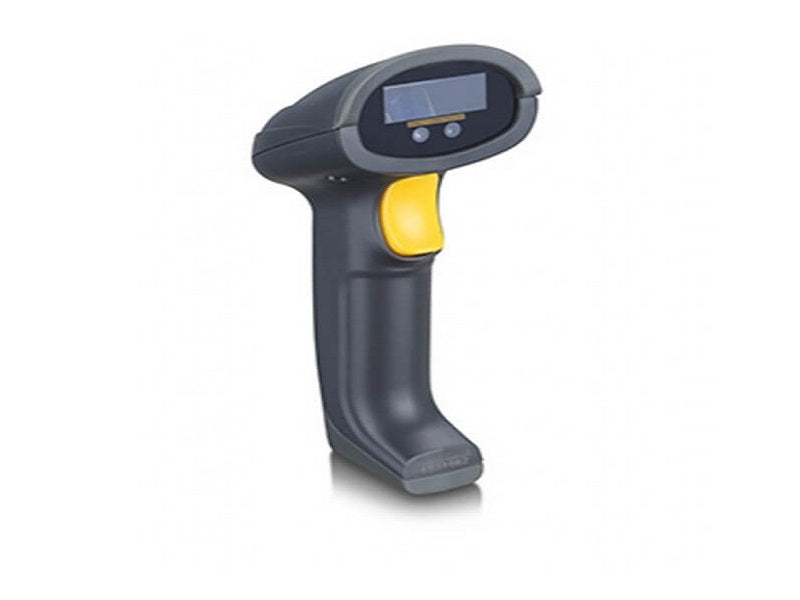

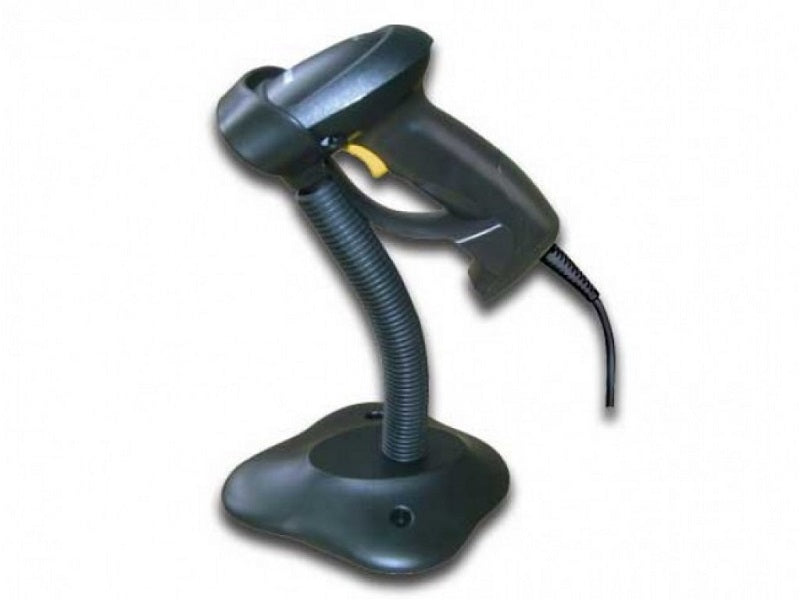

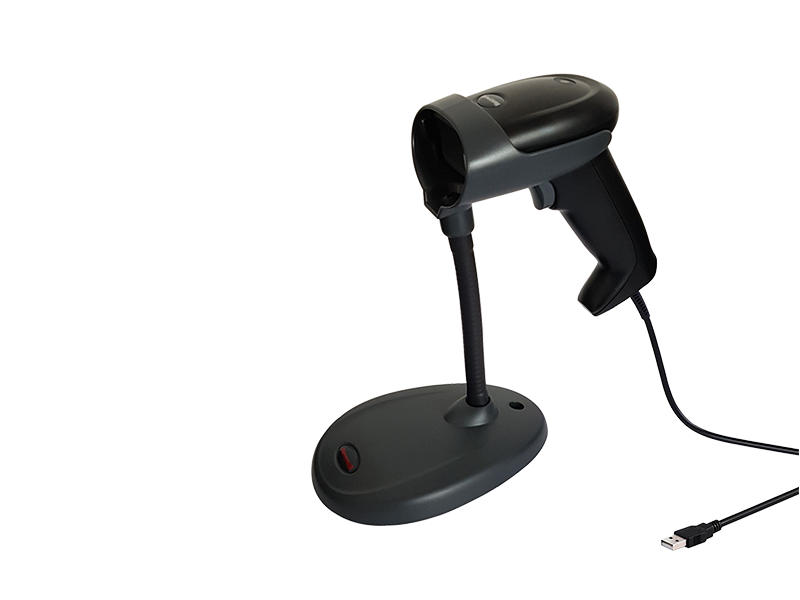

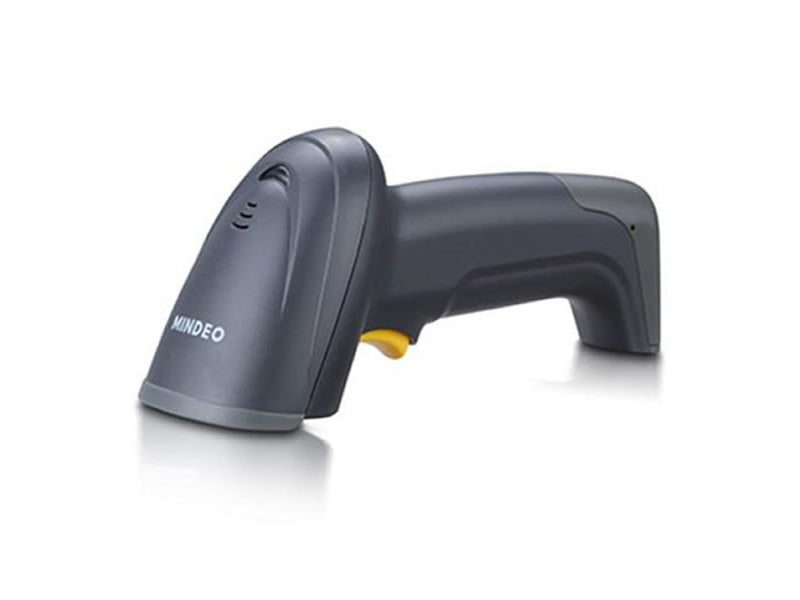

Mindeo® MD2000AT Hand Held Laser Scanner - USB Interface, Infra-Red Auto-Induction, Including Stand
Features
- Ergonomic, snappy and stylish design.
- Suitable to operate in diverse working environment.
- Read all major 1D symbols.
- Maximal decode rosulution at 3mil or 5mil.
- Infra-red auto-induction.
- Mirror surface reflection cancellation.
- Ready for all POS systems.
- Easy firmware upgrade.
Specifications
Input voltage 5 VDC ± 0.25 V
Power 150 mW (Standby); 525 mW (Operating); 850 mW (Max.)
Current 30 mA (Standby); 105 mA (Operating); 170 mA (Max.)
Laser 630-650 nm laser diode
Decoding rate 200 times/sec
Scanning angle ±65°, ±70°, ±42° (Skew, Pitch, Roll)
Print contrast 25% minimum reflection difference
Decode capability UPC-A, UPC-E, UPC-E1, EAN-13, EAN-8, ISBN (Bookland EAN), ISSN, Code
39, Code 39 full ASCII, Code 32, Trioptic Code 39, Interleaved 2 of 5, Industrial 2
of 5 (Discrete 2 of 5), Matrix 2 of 5, Codabar (NW7), Code 128, UCC/EAN 128
(GS1-128), ISBT 128, Code 93, Code 11 (USD-8), MSI/Plessey, UK/Plessey,
China Post, Telepen, GS1 DataBar (formerly RSS) variants
Indicator Beeper, LED
Interface supported RS-232, USB Keyboard, USB virtual COM
Operating mode Hand-held, Auto-detection (Optional accessory)
Dimensions Height × Width × Depth`a3° 76 mm `a1`c1 66.5 mm `a1`c1 168 mm
Weight 121 g, without cable
Cable Straight 2.0 m
Connector type RJ-45 phone jack connector
Case material ABS
Exit window material PC
Temperature 0`a1`e3 to 50`a1`e3C (32`a1`e3 to 122`a1`e3F), Operating; -40`a1`e3 to 60`a1`e3C (-40`a1`e3 to 140`a1`e3F), Storage
Humidity 5% to 95% (non-condensing)
Programming method Manual (reading special barcode)
Program upgrade Online
Decoding depth
& Min. element width (1 mil = 0.0254 mm)
3 mil: 27 - 65 mm
4 mil: 27 - 60 mm
5 mil: 18 - 132 mm
10 mil: 10 - 320 mm
13 mil: 16 - 380 mm
15 mil: 13 - 500 mm
20 mil: 19 - 620 mm
30 mil: 25 - 770 mm
Safety Laser safety: EN60825-1, Class 1
EMC: EN55022, EN55024
Electrical safety: EN60950-1
Drop resistance: 30+ times 2.0 m (6.5 ft) drops to concrete
Protection class: IP50
Frequently Bought Together Frequently bought
Product Information
| Categories | Point of Sale / Specials |
| Brand | Mindeo |
| Type | Handheld Laser Barcode Scanner |
| Model | MD2000AT |
| Interface | USB |
| Symbologies | All major 1D barcodes |
| Resolution | 3mil / 5mil |
| Light Source | 630-650nm Laser Diode |
| Decode Rate | 200 scans/sec |
| Feature | Infra-red auto-induction, includes stand |
| Warranty | 1 Year Warranty |
