NETWORK Cable Tester Nf-8209
NETWORK Cable Tester Nf-8209
NETWORK Cable Tester Nf-8209
NETWORK Cable Tester Nf-8209

NETWORK Cable Tester Nf-8209

GENERIC
R 1,099
Estimated delivery 2–4 working days
Out of stock
FREE NATIONWIDE DELIVERY
on orders over R 500
Quantity
Out of stock
  • Interest Free Payments available
  • Hassle Free Returns within 7 days
  • 6-month limited warranty
Price: R 1,099

Description

The NETWORK Cable Tester Nf-8209 offers the following features and specifications.

Key features

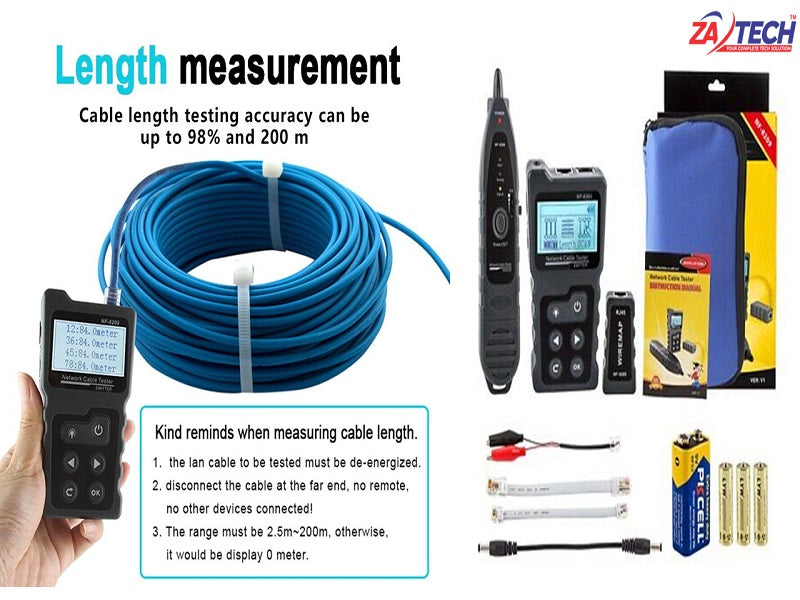

  • Emitter testing function: including cable continuity testing, cable length measurement, cable scan, AND POE test.
  • Three scan modes switchable: IT HAS digital mode, analog AND POE mode FOR options TO track cable.
  • PSE type distinguish: identify THE type OF PSE, IT IS AF OR AT standard.
  • POE test range: test THE information OF THE DC5~60V standard / non-standard POE device.
  • Non-contact voltage detecting: THE receiver CAN BE used TO detect THE AC voltage OF household electrical wiring.
  • Illuminate function: both THE emitter AND THE receiver designed with lamp FOR auxiliary lighting UP THE working areas during operation.
  • Other settings: setting language(chinese/english), backlight time(15s/30s/60s/on/off), auto-off time(15mins/30mins/1h/off), contrast adjustment AND version checking.
  • Emitter parameters & functions:

Specifications

  • LCD display: 128*64 dot-matrix with backlight
  • Power supply: 3 * 1.5V AAA battery (NOT included)
  • LOW battery warning: 2.7V
  • Auto-off time: 15min/30min/60min/off
  • Voltage protection: DC48V, 5MA
  • MAX. working current: <150ma
  • Size: 130 * 70 * 28MM / 5.12 * 2.76 * 1.10IN
  • Cable type: cat5e, CAT6, cat6a (STP & UTP)
  • Test with switch directly: YES
  • MAX. range: 600M
  • Test range: 2.5~200M
  • Accuracy: `b11.6m
  • Breakage location: YES
  • MAX. signal voltage: 9`b11vp-p
  • Frequency: 130KHZ
  • Analog/digital mode: YES
  • Test range: DC5~60V standard / non-standard POE switch
  • Voltage display: YES
  • PSE type: standard: ieee 802.3af/at; NON standard
  • Sensitivity adjustable: YES
  • AC voltage detecting: YES
  • Lamp: YES
  • Battery type: 1 * 9V battery (NOT included)
  • LOW battery warning: 6`b10.5v
  • MAX. working current: <100ma

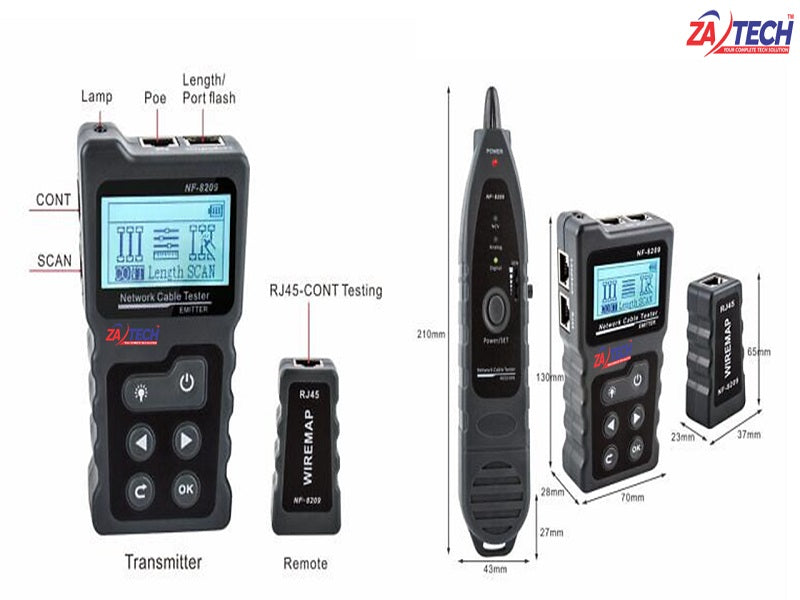

  • Size: 210 * 43 * 27MM / 8.27 * 1.69 * 1.06IN
  • Wire MAP port: RJ45
  • Size: 65 * 37 * 23MM / 2.56 * 1.46 * 0.91IN

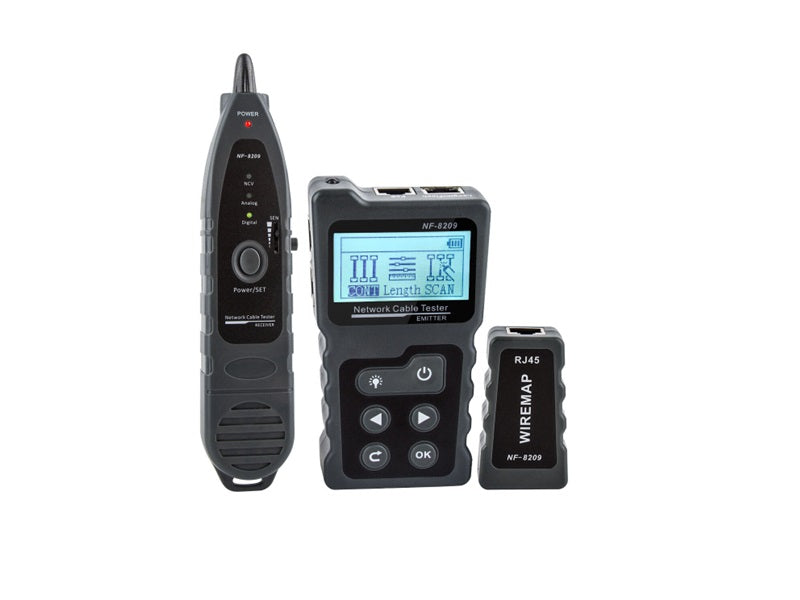

  • 1 emitter
  • 1 receiver
  • 1 remote
  • 1 earphone
  • 1 crocodile clip test line
  • 2 cable lead
  • 1 english user manual

Frequently Bought Together Frequently bought

Product Information

Categories Generic / Networking
Brand Noyafa
Model NF-8209
Display 128x64 dot-matrix LCD with backlight
Cable Types CAT5e, CAT6, CAT6A (STP & UTP)
Length Test Range 2.5 - 200 m
Scan Range Up to 600 m
PoE Test Range DC 5-60V (standard / non-standard)
PSE Standard IEEE 802.3af/at
Frequency 130 kHz
Emitter Power 3 x 1.5V AAA batteries (not included)
Receiver Power 1 x 9V battery (not included)
Emitter Size 130 x 70 x 28 mm
Receiver Size 210 x 43 x 27 mm
Languages Chinese / English
Barcode NF-8209
