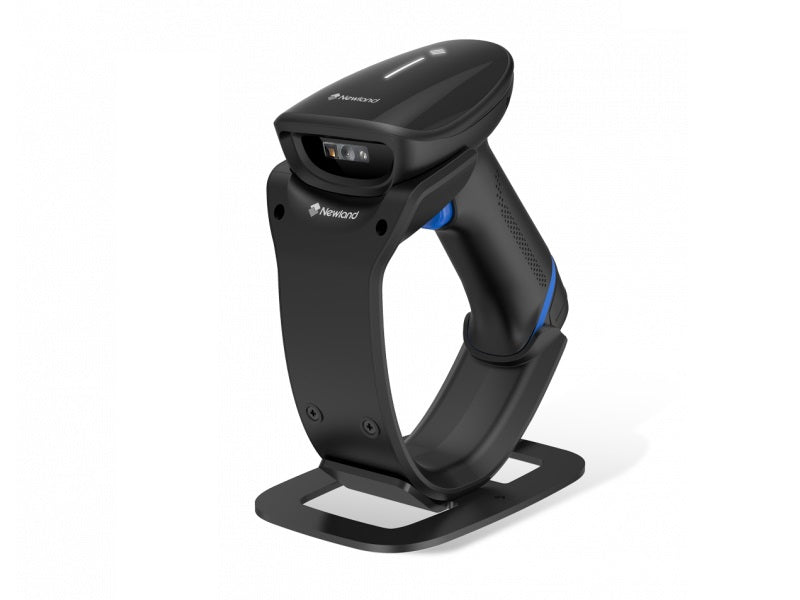

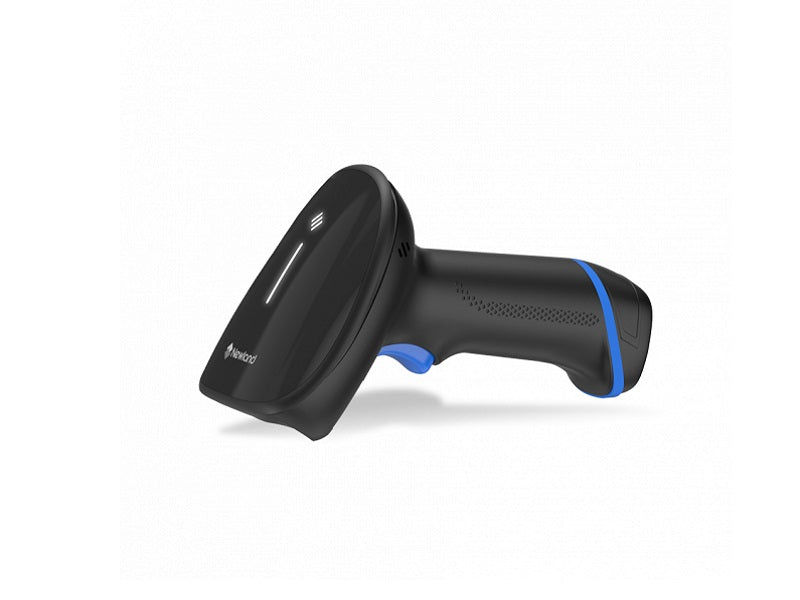

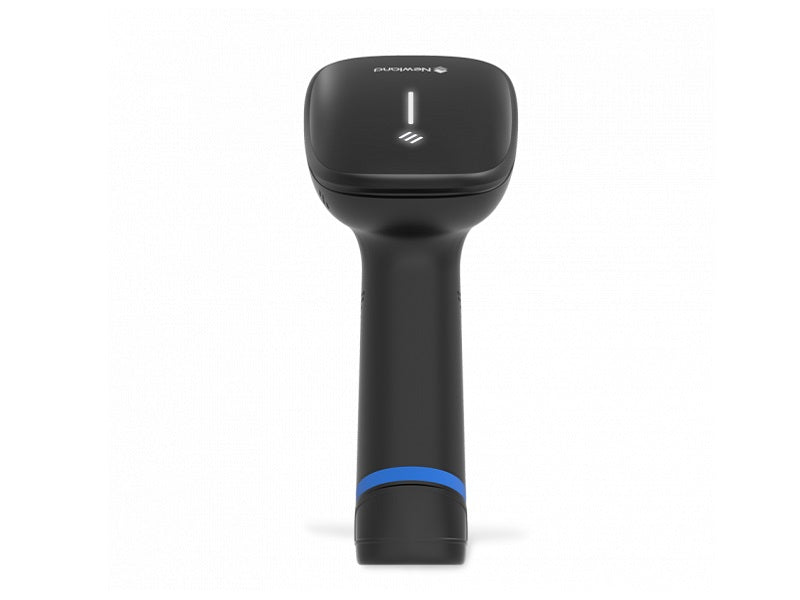

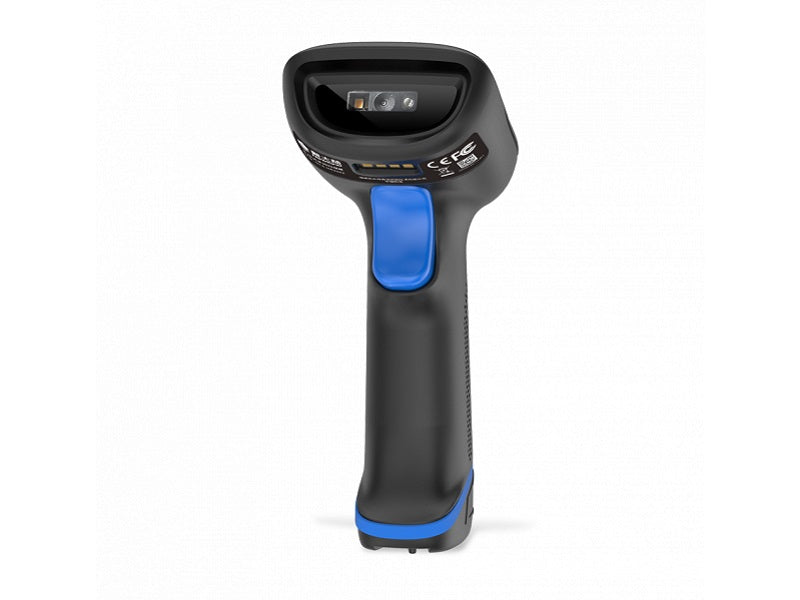

NEWLAND HR2300 2D BLUETOOTH SCANNER

The HR23 Dorada Bluetooth offers the best cordless 2D scanning at the price of a 1D scanner, thanks to Newland’s advanced decoding technology. With its blended ergonomics and creative design, the HR23 Dorada offers comfort and productivity for quickly capturing barcodes. The HR23 Dorada Bluetooth is ideal for intensive handheld scanning, from high-density to damaged, vague, and distorted barcodes. If the 12 hours of continuous use the battery gives the HR23 is not enough, the latest Bluetooth device in the Dorada series comes with an easily removable battery, which allows for uninterrupted usage and enhances operational efficiency. Furthermore, the device has a new charging contact design ensures reliable and long-lasting connections, significantly improving the battery life-cycle compared to its predecessor.

Key features

• Dorada's replaceable Battery
• The HR23 Dorada, like the HR22, comes with Bluetooth 5.0 connectivity. However, we have taken it up a notch and increased its wireless range up to 100 meters in open spaces to enhance our customers` flexibility. Moreover, the HR23 Dorada ensures seamless synchronous, asynchronous, and batch communication modes for all scanning requirements.
• Rugged Reliability
• With an IP52 rating and the ability to survive a 1.5m drop onto concrete, the HR23 Dorada is well-suited to any environment and is an ideal companion for demanding scanning tasks.
• Advanced Scanning
• The HR23 Dorada is a scanning device equipped with the latest Newland key decoding technology. It can scan all types of barcodes, even those that are distorted, damaged, or high-density. The device's field of view covers both horizontal and vertical directions. Additionally, the HR23 Dorada offers a seamless scanning experience, allowing for a smooth transition from 1D to 2D scanning. All these features come at an entry-level price, making it an affordable option for those looking for a reliable and efficient scanning device.
• Stylish and comfortable
• The HR23 Dorada boasts a well-balanced and ergonomic design, allowing the scanner to fit perfectly in the user's hand. Its lightweight and simple yet innovative design provides comfort and high productivity for tasks performed with efficiency.
• Easyset Compatible
• The HR23 Dorada comes with EasySet, a configuration software developed by Newland. This software simplifies the scanner configuration process, making it easy and efficient for users. They can send the configuration directly to the scanner, save it for future deployment on other scanners, or display it as a series of barcodes in a single document.
• Data Capture
• 1D Code 11, Code 128, Code 39, GS1-128(UCC/ENA-128), AIM 128, ISBT 128, Codabar, Code 93, UPC-A, UPC-E, Coupon, GS1 Composite, EAN-13, EAN-8, ISSN, ISBN, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, ITF-6, ITF-14, Standard 2 of 5, China Post 25, MSI-Plessey, Plessey, GS1Databar(RSS)
• 2D PDF417, QR Code, Aztec, Data Matrix, Micro PDF417, Micro QR, Chinese Sensible Code
• Aiming Red LED
• Illumination White LED
• Performance
• Memory Flash ≥16,384 code entries (above 60 bytes)
• Physical
• Expected Battery Life ≥16 hours of continuous operation (scan once per 6 seconds)
• Interfaces USB (Type A), support USB-KBW, USB-CDC, HID-POS
• Notifications Beep, LED, Vibration
• Wireless
• Communication Modes Synchronous, asynchronous and batch mode
• Storage Temperature -40 to 70`b0C (-40`b0F to 158`b0F)
• Charge Temperature 0`b0C to 45`b0C (32`b0F to 113`b0F)
• Electro Static Discharge (ESD) `b18 KV (contact discharge); `b115 KV (air discharge)
• Hardware CE Red, FCC ID, RoHS 2.0, IEC62471

Specifications

• Image Sensor 640x480 CMOS
• Resolution ≥3mil
• Depth of Field EAN 13 (13mil) 50mm-280mm
• Depth of Field Code 39 (5mil) 50mm-120mm
• Depth of Field PDF417 (6.7mil) 40mm-120mm
• Depth of Field DataMatrix (10mil) 30mm-125mm
• Field of View Horizontal 45`b0
• Field of View Vertical 34`b0
• Scan Angle Roll 360`b0
• Scan Angle Pitch `b160`b0
• Scan Angle Skew `b160`b0
• Minimal Print Contrast 20%
• Battery Type 2600mAh lithium-ion battery
• Dimensions (mm) Cradle: 140x90x144,5mm
• Dimensions (mm) Scanner: 117,5x67,5x144mm
• Expected Charge Time ≤6 hours
• Input Voltage 5V DC'b15%
• Weight Cradle: 340,5g
• Weight Scanner: 209g
• Radio Technology Bluetooth 5.0
• Wireless Distance (max.) ≥100m (in open space)
• Operating Temperature -10`b0C to 50`b0C (14`b0F to 122`b0F)
• Humidity 5%~95% (non-condensing)
• Drop Scanner: 1.5m drops to concrete (cradle: 1,2m)
• IP Rating IP52
• Standard Charging cradle
