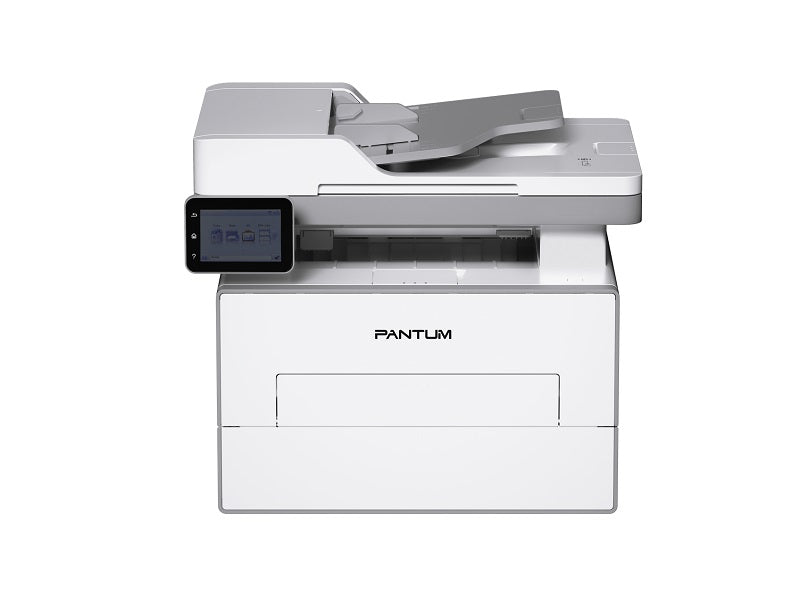

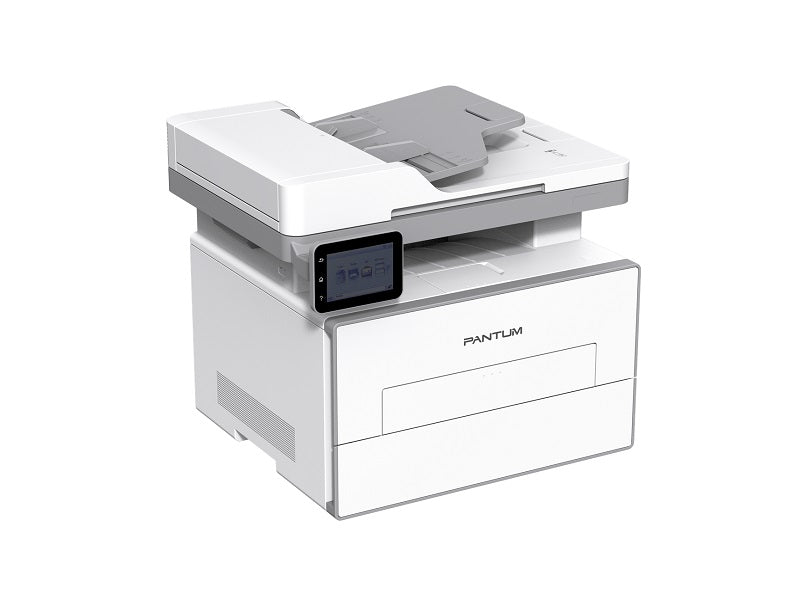

Pantum BM4305ADW A4 Multifunction Mono

Boost your productivity with the Pantum Efficient Pro series swift printing speeds of up to 33 ppm (A4) / 35 ppm (Letter). Enjoy the convenience of automatic duplex printing, save paper and costs, and meet the needs of demanding office environments. Equipped with DADF scanner, it supports double-sided scanning or copying in one feeding, simplifies the operation steps, and is suitable for users who process a lot of documents every day.

Key features

• Boosts efficiency with duplex high-speed printing
• Engineered for uninterrupted printing with lower paper jams
• Paper sensitive duplexing auto document feeder (50-sheet DADF)
• Maximum toner yield up to 11, 000 pages
• High-Speed and Auto-Duplex Efficiency
• Hard disk NA
• Bluetooth
• Print
• Auto Duplex Printing YES
• Mobile Printing Airprint Mopria Pantum APP NFC ios not support
• Operating System WindowsServer2012 64 bit /Server2016 64 bit /Server2019 64 bit / Server2022
• xSupports both 32bit and 64bit, unless otherwise specified
• Ubuntu 16.04 32 bit/64 bit /18.04 64 bit /20.04(64 bit)/22.04(64 bit)
• Other Printing Functions Brochure print
• poster print
• N-up print
• Skip blank pages in printing
• confidential printing
• U-disk printing
• Copy
• Duplex copy Automatic
• Copy mode Auto default Text Image Text+Image
• Copy Resolution Max. 600 x 600dpi
• Copy function Standard copy
• Receipt copy
• ID copy
• N-up copy
• Clone copy
• poster copy
• Automatic ID card correction
• Collated copy
• Watermark copy
• Scan
• Scan technology CIS
• Scanner type FB+DADF
• Scan mode color gray mono
• ADF scan Speed 24ppm(A4 300 x 300 dpi gray mode) 25pp Letter
• Duplex Scan Speed ADF duplex scan 300g :24ppm 48ipm
• Scan to Scan to PC Email FTP SMB U flash drive
• Pantum scan application YES
• Other scan function Support pull scan OCR
• Paper Handling
• Paper Output Detection NO
• Media type Plain, Thick, Transparency, Cardstock, Label Envelope Thin
• Media Size A4, A5, JIS B5, IS0 B5 , A6, Letter, Legal,Executive , Folio, Oficio, Statement, Japanese Postcard, Monarch Env, DL Env, C5 Env, C6
• Env, No.10 Env, ZL, Big 16K, Big 32K, 16K,32K, B6 Yougata4, Postcard, Younaga3, Nagagata3, Yougata2
• Consumable
• Consumable Type Toner Cartridge & Drum Unit
• Packaging parameters
• Machine Dimension DxWxH 415(Touch screen convex 5MM not included x 358 x 352mm
• Printer Net Weight 10.3kg (without starter cartridge) 11.7kg (with starter cartridge )
• Cartridge Dimension DxWxH

Specifications

• BM4305ADW Mono laser multifunction printer
• Printing speed: 33ppm
• Connection method: USB+NET+Wi-Fi
• Basic function: Print+Copy+Scan
• Product Specifications: BM4305ADW
• Control panel 3.5 inch touch screen
• Processor speed 800MHz
• Memory 512M
• Recommended Monthly Page Volume 1000~10000pages
• Maximun Monthly duty cycle 80,000 pages
• Connectivity USB2.0 High Speed
• IEEE802.3 10/100Base-Tx Ethernet
• IEEE802.3az EEE
• 2.4G+5G dual-band WiFi 802.11a/b/g/n
• Power 110V model:100-127VAC 50/60Hz 9A
• 220V model:220-240VAC 50/60Hz 4.5A
• Power Consumption Print Average: 550W
• Off: 0.4w
• Standby: 50W
• Dormant:<1W
• Energy Star Energy Star 3.0
• Noise Print: 52dB A
• Copy: 54dB A
• Scan: 52dB A
• Standby: 30dB A
• Print Environment Operating Temperature:10 32
• Relative Humidity:20%~80%RH
• Altitude: 3000m
• Print speed(A4/LTR) 33ppm(A4) 35ppm(Letter) 57ppm(A5 Long Edge)
• Duplex print speed 15ipm
• First print out time 8.5s
• Printer language PCL5e PCL6 PS3 GDI PDF1.7
• 64 bit /XP/Win7/Win8.1/Win10/win11 64 bit
• Mac10.10 14.0
• Chrome:99.0.4844.57 and 103.0.5060.114 and above
• Android 8.0-13.0
• HarmonyOS 2.0 and above
• ios 13.0-17.0
• Copy speed 33cpm(A4) 35cpm(Letter)
• First copy out time FB: 10s
• ADF: 12s
• Copy reduce / enlarge settings 25%-400%
• Max.copy page 99 pages
• ADF capacity 50 pages 80g/
• Max. Resolution FB:Max. 1200 x 1200dpi
• ADF 600`d7600dpi
• DADF: 300`d7300dpi
• Max. Scan size FB:216`d7297mm
• ADF: 216 x 356 mm
• Scan format push scan:PDF, JPG, TIFF, OFD
• pull scan: BMP JPG PNG TIFF PDF, OFD
• Paper Input Capacity 250 pages A4:80g/m
• Paper Output Capacity 120 pages 80g/m
• min: 105x148mm max:216x356mm
• Media Weight Standard tray: 60-105g/
• Multipurpose tray: 60-200g/
• Starter toner capacity (1) TL-x4201:1500pages
• Starter drum unit lifetime(2) DL-x4201:25000pages
• Standard toner capacity (1) TL-x4201H:3000pages
• TL-x4201X:6000pages
• TL-x4201U:11000pages
• Standard drum unit lifetime (2) DL-x4201:25000pages
• Machine Package Dimension DxWxH 548`d7429`d7461mm
• Printer Gross Weight 14.2kg
• 283x116x52mm 3K
• 283x116x65mm 6K
• 283x116x96mm 11K
• Drum unit:282x192x62mm
• 322x108x144mm 3K/6K
• 322x177x144mm 11K
• Drum unit:359x106x224mm
• 0.52KG 3K
• 0.565KG 6K
• 0.95KG 11K
• Drum unit:0.45KG 25K
• 0.715KG 3K
• 0.75KG 6K
• 1.19KG 11K
• Drum unit:0.725KG 25K
• Operating Temperature 10 32
• Relative Humidity: 20%~80%RH
• 1 x Printer
• 1 x AC Power cable
• 1 x Manual
• 1 x Starter Toner
