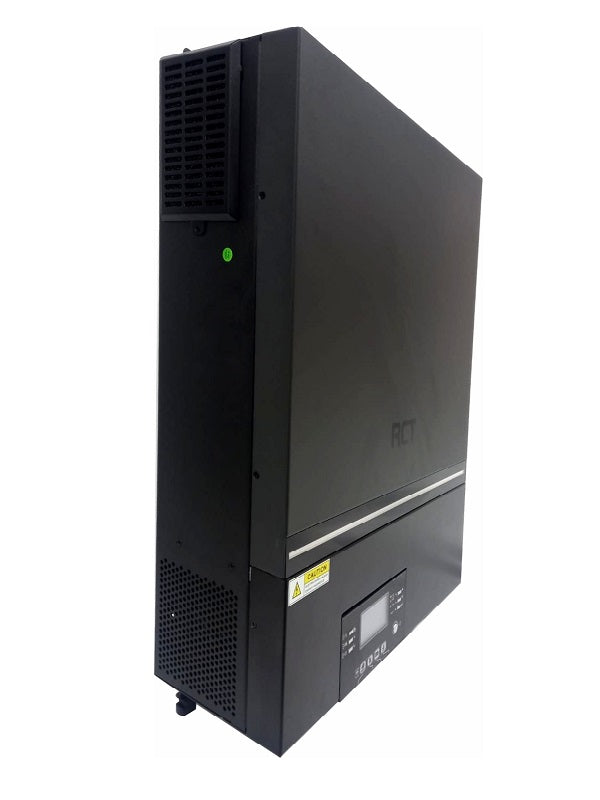

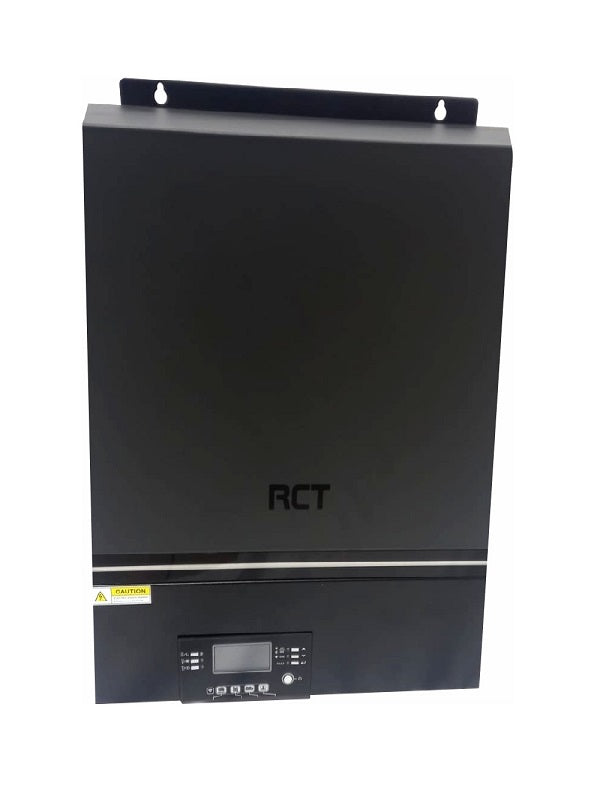

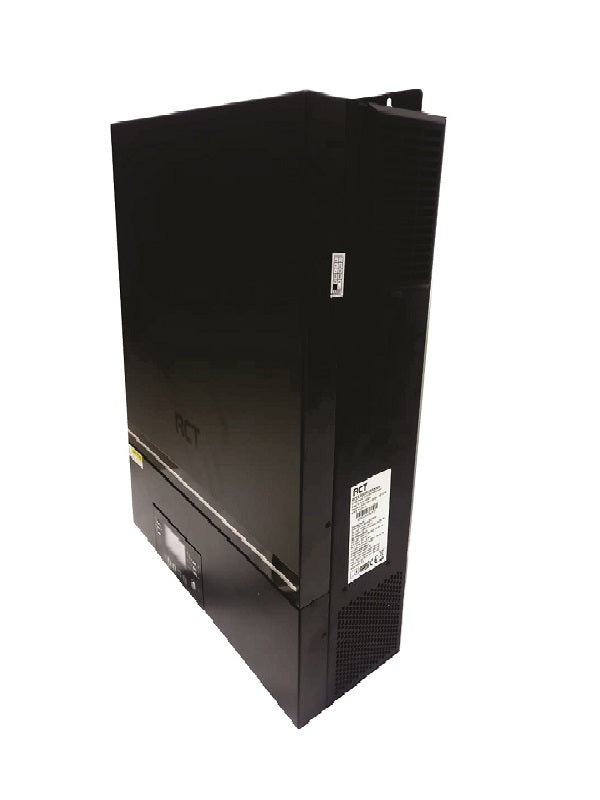

RCT Axpert Max 8Kva/8Kw Inverter-48V

Status indication with RGB lights. Built-in wi-fi for mobile monitoring (Android / iOS App is available).

Key features

• 8000W dual mppt built IN wifi AND BMS
• Supports USB On-the-Go function.
• Reserved communication port for BMS (RS485, CAN-BUS or RS232).
• Replaceable fan design for ease of maintenance.
• Configurable AC / PV output usage timer and prioritization.
• Selectable high power charging current.
• Selectable input voltage range for home appliances and personal computers.
• Compatible to utility mains or generator input.
• Built-in anti-dust kit.
• Built-in DC output for DC fan, LED bulb, router and so on.
• Parallel operation with 6 units.
• Selectable Voltage Range: 170-280 VAC (For Computers), 90-280 VAC (For Home Appliances)
• TRANSFER TIME: 15ms (For Personal Computers) 20ms (For Home Appliances)
• Solar charger & AC charger
• Maximum PV array power: 8000 W (4000 W x 2)
• Maximum PV array open circuit voltage: 500 VDC

Specifications

• Battery independent design.
• 8000VA / 8000W Rated Power
• Voltage: 230 VAC
• AC voltage regulation (batt. mode): 230 VAC `b1 5%
• Surge power: 16000 VA
• Efficiency (peak): 93%
• WAVEFORM: Pure sine wave
• NO load power consumption: < 75W
• DC voltage: 12 VDC `b1 5%, 100W
• Battery voltage: 48 VDC
• Floating charge voltage: 54 VDC
• Overcharge protection: 63 VDC
• Mppt range @ operating voltage: 90~450 VDC
• Maximum solar charge current: 150A
• Maximum AC charge current: 120A
• Maximum charge current: 150A
