RCT Axpert Vm3

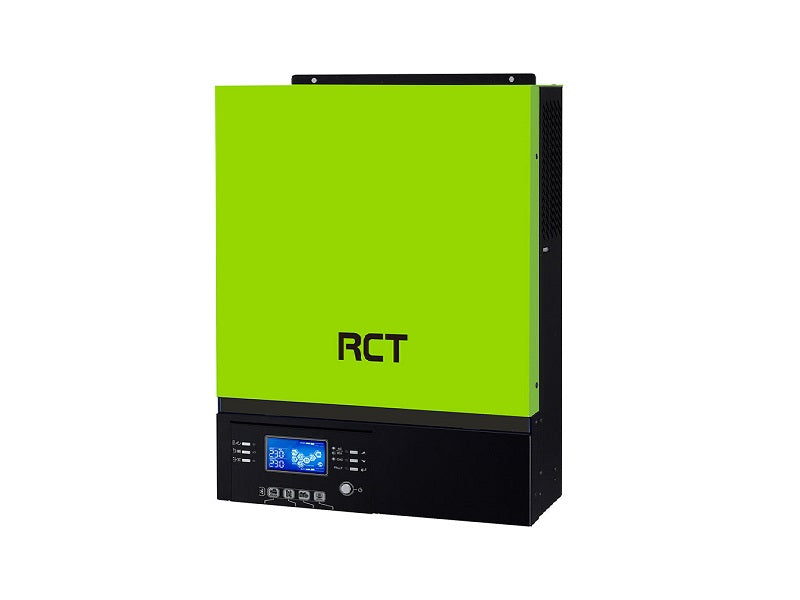

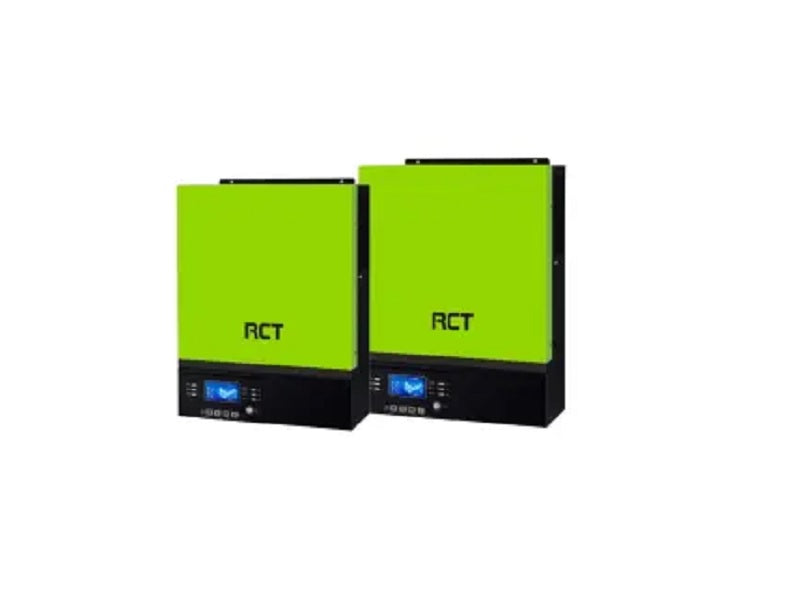

RCT Axpert Vm3 5Kva Inverter 48V
RCT Axpert Vm3 5Kva Inverter 48V

RCT Axpert Vm3 5Kva Inverter 48V

RCT
R 11,999
Estimated delivery 2–4 working days
Out of stock
FREE NATIONWIDE DELIVERY
on orders over R 500
Quantity
Out of stock
  • Interest Free Payments available
  • Hassle Free Returns within 7 days
  • 6-month limited warranty
Price: R 11,999

Description

RCT Axpert VM III is third generation off-grid inverter with rich new functions and its detachable LCD control module can be turned into a remote panel. With an integrated Bluetooth interface ready for mobile monitoring and supports USB on the go function to facilitate data upload / download. Battery independency design enhances this inverter to operate without a battery connected provided there is a grid connection. Detachable LCD control module with multiple communications.

Key features

  • RCT Axpert VM3 5K48 5kVA 5kW 48V Hybrid Inverter
  • Built-in Bluetooth for mobile monitoring (Android App is available).
  • Supports USB On-the-Go function.
  • Reserved communication port for BMS.
  • Replaceable fan design for ease of maintenance.
  • Supply load from Grid or PV, even if battery is not available.
  • Configurable AC/PV output usage timer and prioritization.
  • Selectable high power charging current.
  • Selectable input voltage range for home appliances and personal computers.
  • Compatible to Utility Mains or generator input.
  • Auto restart while AC is recovering.
  • Cold start function.
  • Selectable Voltage Range: 170-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances).
  • Frequency Range: 50 Hz/60 Hz (Auto sensing).
  • AC Voltage Regulation: 230 Vac `b1 5%.
  • Surge Power: 10 000VA for 5 sec.
  • Efficiency (Peak): 93 % at Line Mode, 90% at Battery Mode.
  • Transfer Time: 10 ms (For Personal Computers); 20 ms (For Home Appliances).
  • Floating Charge Voltage: 54 Vdc.
  • Solar Charger & AC Charger
  • Maximum PV Array Open Circuit Voltage: 500 Vdc.
  • Maximum PV Array Power: 5000 W.
  • MPP Range @ Operating Voltage: 120 ~ 450 Vdc.
  • Maximum Solar Charge Current: 80 A.
  • Maximum AC Charge Current: 60 A.
  • Maximum Charge Current: 80 A.
  • Physical
  • Dimension, D x W x H (mm): 115 x 300 x 400.

Specifications

  • 5000W mppt solar charger
  • (RS485, CAN-BUS or RS232).
  • Model: RCT-AXVM3-5K48V.
  • Rated Power: 5000VA/5000W.
  • Parallel Capability: No.
  • Voltage: 230 VAC.
  • Waveform: Pure sine wave.
  • Battery
  • Battery Voltage: 48 Vdc.
  • Overcharge Protection: 63 Vdc.
  • Solar Charger Type: MPPT.
  • Net Weight (kgs): 10.
  • Communication Interface: USB/RS232/RS485/Bluetooth/Dry contact.

Frequently Bought Together Frequently bought

Product Information

Categories RCT / Solar Solutions
Brand RCT
Model RCT-AXVM3-5K48V
Rated Power 5000VA / 5000W
Voltage 230 VAC
Frequency Range 50/60 Hz (Auto)
Battery Voltage 48 VDC
Surge Power 10000VA for 5s
Efficiency 93% Line / 90% Battery
Transfer Time 10ms (PC) / 20ms (Home)
Waveform Pure Sine Wave
Max PV Power 5000 W
MPPT Range 120-450 VDC
Max PV Open Circuit 500 VDC
Max Solar Charge Current 80 A
Dimensions 115 x 300 x 400 mm
Weight 10 kg
