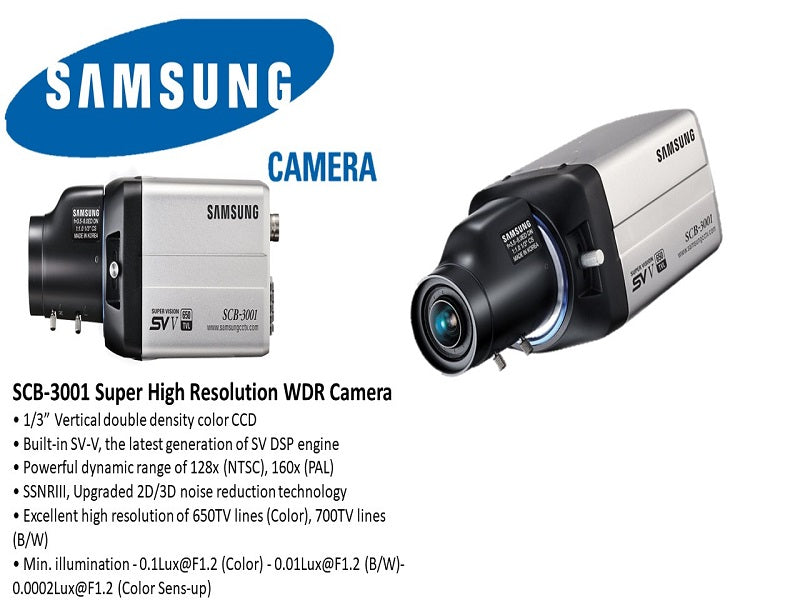

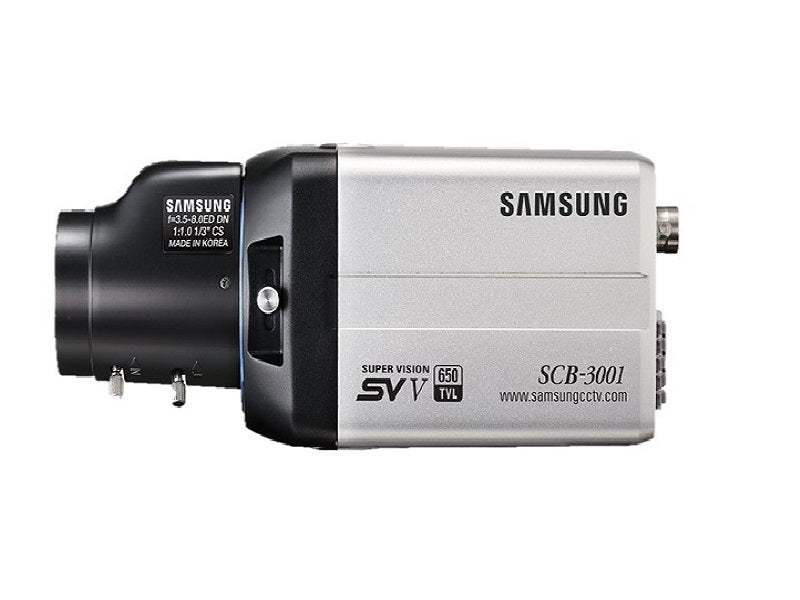

SCB-3001P Box Cam Samsung Wdr 700Tvl

Excellent high resolution of 650TV lines (Color), 700TV lines (B/W). Min. illumination 0.1Lux@F1.2 (Color) / 0.01Lux@F1.2 (B/W) / 0.0002Lux@F1.2 (Color sens-up).

Key features

• Built-in SV-V, the latest generation of SV DSP engine
• Powerful dynamic range of 128x (NTSC), 160x (PAL)
• True Day & Night (ICR)
• VPS (Virtual Progressive Scan)
• Privacy masking with 12 programmable zones (Polygonal mosaic)
• Intelligent video analysis
• SSDR (Samsung Super Dynamic Range)
• HLC (Highlight Compensation)
• DIS (Digital Image Stabilization)
• Multi-language OSD
• The Samsung SCB-3001 is a high resolution, high performance camera featuring our latest SV-V DSP chipset. This camera combines WDR (Wide Dynamic Range) capabilities with excellent low light sensitivity of 0.3Lux, making it perfect for demanding applications.
• Imaging Devise : 1/3" Super HAD CCD II (Double scan)
• Video Min Illumination 1 : Colour : 0.1Lux@F1.2 (50IRE), 0.0002Lux (Sens-up, 512x)
• Video Min Illumination 2 : B/W : 0.01Lux@F1.2 (50IRE), 0.00002Lux (Sens-up, 512x)
• Video Output : CVBS : 1.0 Vp-p / 75Ω composite
• Lens Type : Manual / Auto iris (Video / DC)

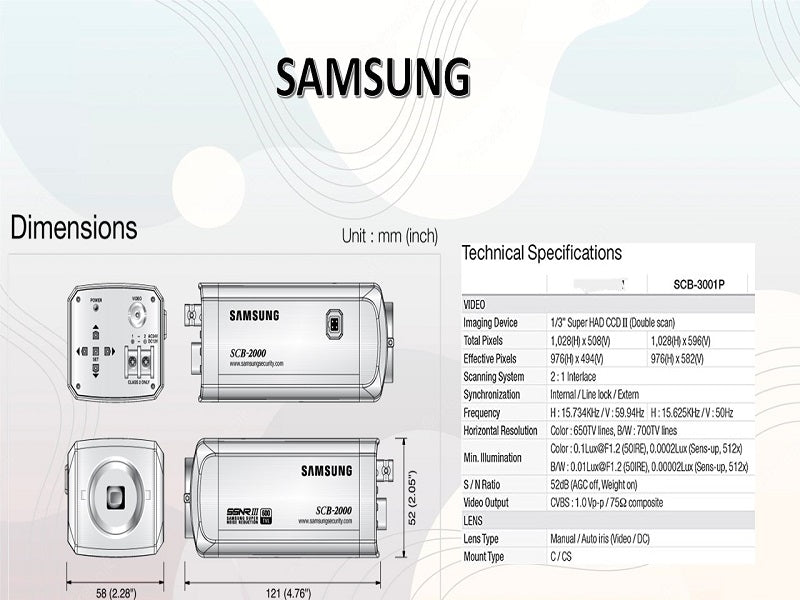

• Dimensions WxHxD OR WxH : 66.0 x 61.0 x 102.0mm (2.6" x 2.4" x 4.02")
• Chipset
• Operational
• On Screen Display : English, French, German, Spanish, Italian, Chinese, Russian, Polish, Czech, Romanian, Serbian, Swedish, Danish, Turkish, Portuguese
• Day and Night : Auto (ICR) / External / Colour / B/W
• Backlight Compensation : Off / User BLC / HLC / SSDR / WDR
• Privacy Masking : Off / On (12 programmable zones with polygonal masking)
• White Balance : ATW / Outdoor / Indoor / Manual / AWC (1,700K'b0 ~ 11,000K'b0)
• Intelligent Video : Fixed / Moved / Fence / Tracking / Detection / Counting
• Protocol1 : RS-485 : Samsung-T/E, Pelco-D/P, Panasonic, Bosch, Honeywell, Vicon
• Reverse : Off / H-Rev / V-Rev / HV-Rev
• Profile : Basic / Day & Night / Backlight / ITS / Indoor / User
• Electrical
• Input Voltage-Current : Dual (24V AC & 12V DC `b110%)

Specifications

• Scb-3001p
• SCB-3001P Key Features
• 1/3” Vertical double density color CCD
• SSNRIII, Upgraded 2D/3D noise reduction technology
• Coaxial & RS-485 control
• 512x sens-up support
• S/N ratio of 52dB
• 12/24v
• SCB-3001P Description
• SCB-3001P Specification
• Total Pixels : 1,028(H) x 596(V)
• Effective Pixels : 976(H) x 582(V)
• Scanning System : 2 : 1 Interlace
• Synchronisation : Internal / Line lock / Extern
• Frequency : H : 15.625KHz / V : 50Hz
• Horizontal Resolution : B/W : 700TV lines
• S-N Ratio : 52dB (AGC off, Weight on)
• Lens
• Mount Type : C/CS
• Colour Material : Dark Grey, Silver / Aluminium, Steel
• Weight : 310g (0.68 lb)
• Chipset : SV-V
• Camera Title : Off / On (Displayed 15 characters)
• Wide Dynamic Range : 160x
• Contrast Enhancement : SSDR
• Digital Noise Reduction : SSNRIII (Off/On)
• Digital Image Stabilization : Off / On
• Motion Detection : Built-in
• Sens-up frame integration : 2x ~ 512x
• Gain Control : Off / Low / High
• Electronic Shutter Speed : 1/50 ~ 1/120,000sec
• Alarm : 1 Out
• Digital Zoom : Off / On (1x ~ 16x)
• Protocol : Coax : Pelco-C (Coaxitron)
• VPS : Off/On
• Communication : Coaxial control (SPC-300 compatible), RS-485
• PIP : Off / On
• Power Consumption : Max. 4.0W
