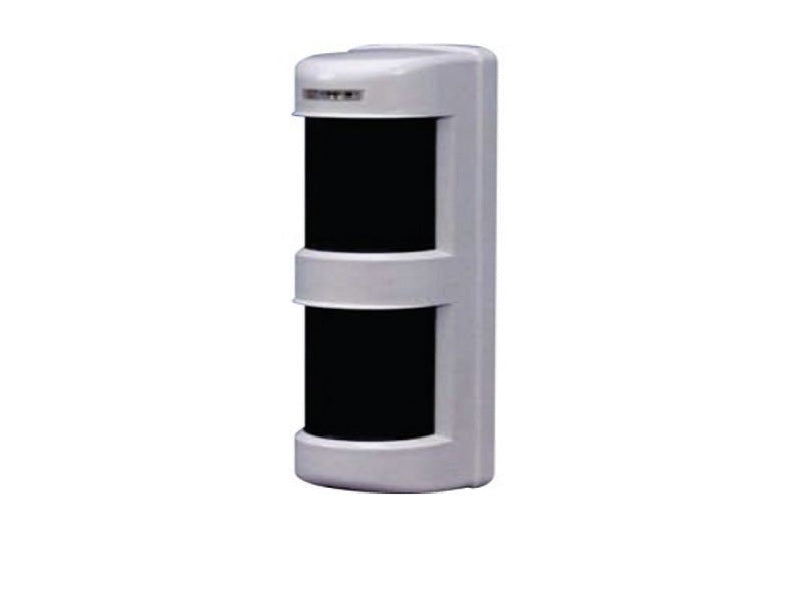

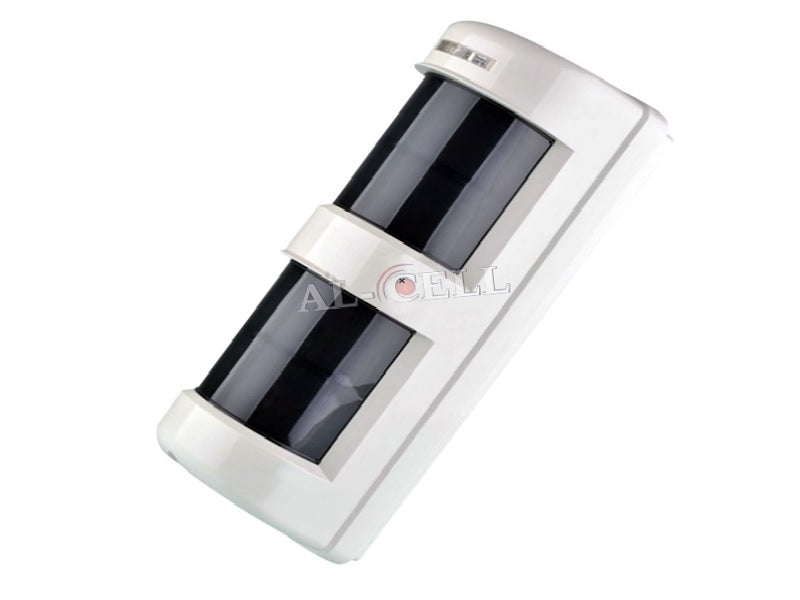

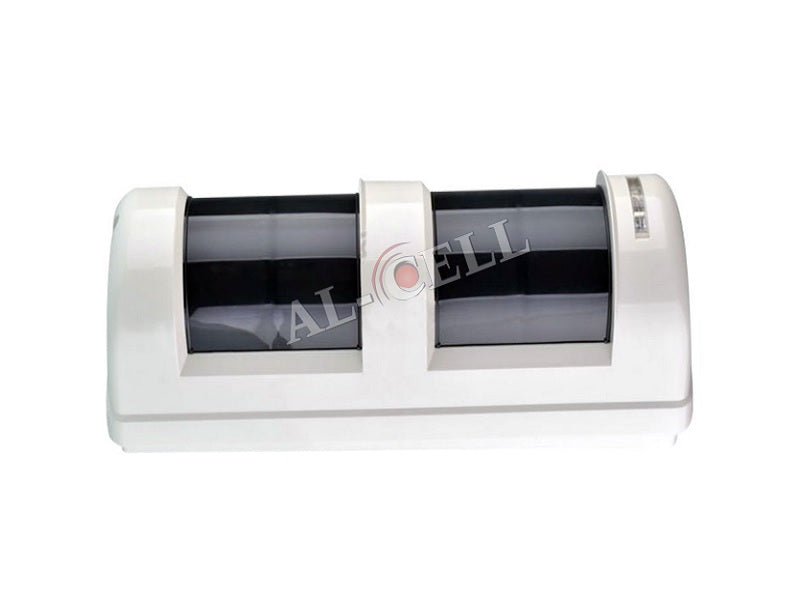

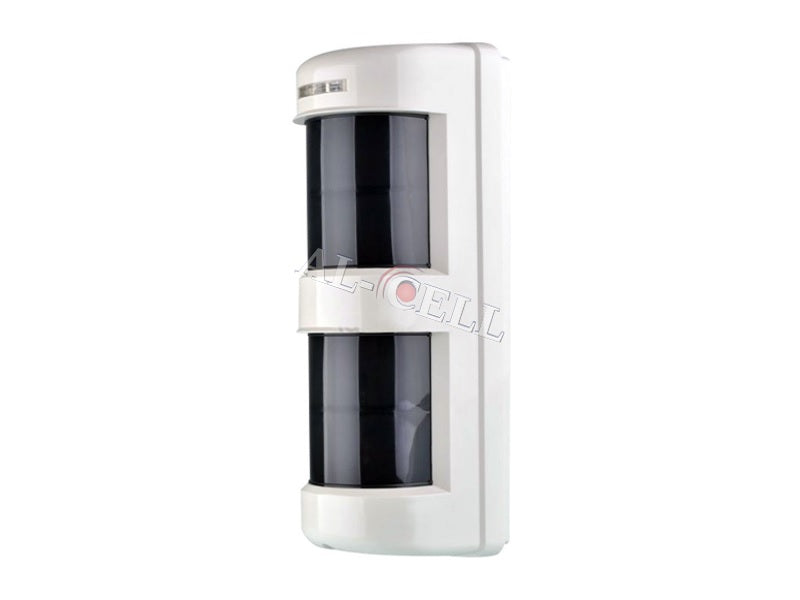

TAKEX Ms-12Te Dual Zone Outdoor Pir In

Detection settings Daylight : Night (10 lux) - Day and Night. Pulse count settings once / three times (with a switch).

Key features

• Both horizontal & downward zone
• Detection system Passive Infrared
• Coverage When horizontal detection
• Coverage adjustment
• (By adjusting vertical angle of downward zone)
• Alarm output Dry contact relay output N.C./N.O. selectable
• (2sec. -5min. approx.)
• Tamper output Dry contact relay output N/C
• Operation LED Red LED
• Blinking at warming up (LED disabled)
• Lighting at alarm (LED disabled)
• Sensitivity adjustment Approx. 30% (L) - Approx. 170% (H) (By potentiometer)
• Connection Terminals
• Ambient temperature -4F to +122F (-20C to +50C'a3`a9
• Mounting position Indoor / Outdoor

Specifications

• Angle : 90`b0
• Detection distance : 40ft (12m)
• Horizontal zone : 7 zones
• Downward zone : 7 zones
• Horizontal : +/-90`b0
• Detection distance : 10` to 40` (3 to 12m)
• Supply voltage 12 to 30V DC (non-polarity)
• Current consumption 35mA MAX.
• Contact capacity : 30V (AC`81`45DC), 0.5A MAX. (Resistive load)
• Contact operation : Detection time + off delay
• Contact capacity : 30V (AC/DC), 0.5A MAX. (Resistive load)
• Weight 13.7oz (390g)
• Appearance Body : AES resin
• Lens : PE resin
• Accessories Tapping screw : 2
• Area masking sheet : 1
