TENDA 10km 5GHz
TENDA 10km 5GHz 16dBi 11AC Gigabit
TENDA 10km 5GHz 16dBi 11AC Gigabit
TENDA 10km 5GHz 16dBi 11AC Gigabit
TENDA 10km 5GHz 16dBi 11AC Gigabit

TENDA 10km 5GHz 16dBi 11AC Gigabit

TENDA
R 1,099
Estimated delivery 2–4 working days
In stock
FREE NATIONWIDE DELIVERY
on orders over R 500
Quantity
In stock
  • Interest Free Payments available
  • Hassle Free Returns within 7 days
  • 6-month limited warranty
Price: R 1,099

Description

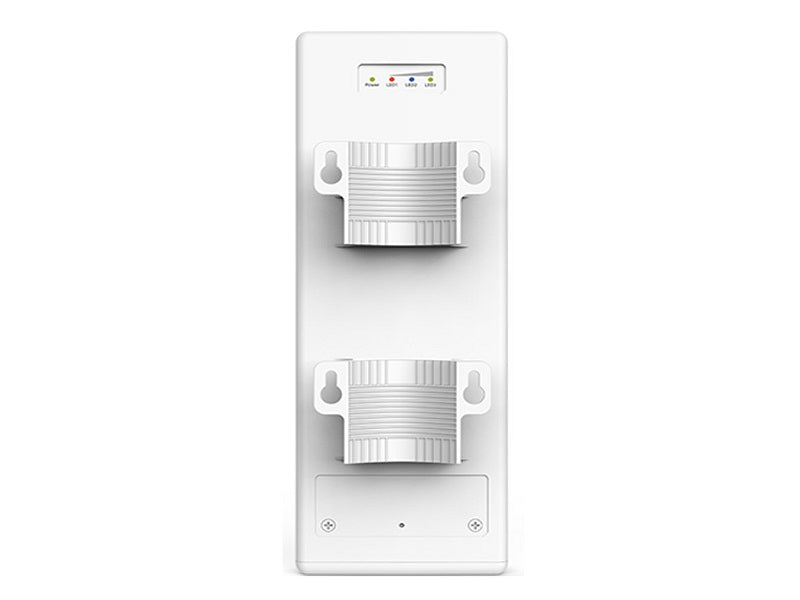

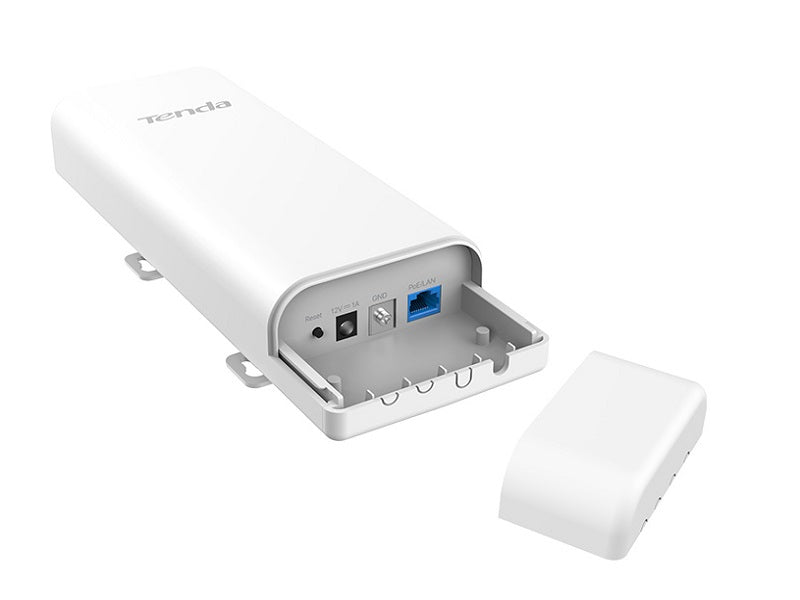

O6 5GHz Outdoor CPE is designed to PtP&P2MP solutions for video surveillance transmission and wireless broadband access. Adopts of 11ac wireless technology and gigabit ethernet Port design, the maximum throughput for ptp connection can be up to 450Mbps. It features with 16dBi dual polarization directional antenna to provide an efficient way to pick up and maintain a stable long range connection. Application Scenarios PtP and PtMP wireless connection for Privated ISP access or CCTV Surveillance.

Key features

  • Outdoor CPE
  • Deployment Pole/Wall Mount
  • Private TDMA Protocol TD-MAX
  • Antenna Polarization Dual Polarization
  • PoE 802.3af/at Power over ethernet up to 100 meters
  • Passive PoE Passive power over ethernet via PoE/LAN (+4,5pins-7,8pins ) up to 60 meters
  • TDMA Support
  • Enable/Disable Wireless Radio Support
  • SSID Hidden Support
  • Wireless Client isolation Support
  • SSID Isolation Support
  • Channel Shift Support
  • Client Limitation For SSID Support
  • Wireless Access Control Support
  • Weak Signal Client Limitation Support
  • WMM Capable Support
  • APSD Capable Support
  • Transparent Bridge Support
  • VLAN Tagging for SSID Support
  • DHCP Server Support
  • VPN Pass-Through Support
  • Remote Web access Support
  • Schedule Reboot Support
  • Page Timeout Support
  • Ping Watchdog Support
  • Dyndns noip, dyndns.org
  • Network Diagnoses Ping, Traceroute, Signal Scan
  • Time and Date Setting Support
  • Firmware upgrade Support
  • Backup/Restore Configuration Support
  • Username Managerment Support
  • Managed By Controller PC Software CPE Assistant
  • Package Contents 1*5GHz 16dBi 11AC Gigabit Outdoor CPE
  • Default Login Username admin
  • Default Login Password admin

Specifications

  • Model O6
  • Dimension 270*94.86*67.5mm
  • Frequency Range 5GHz
  • Compliant Standards IEEE 802.11b/a/n/ac
  • Maximum Wireless Rate 867Mbps
  • Interfaces 1*10/100/1000Mbps Ethernet Port
  • Antennas Gain 16dBi
  • Antenna Beamwidth Horizontal: 30`b0 Vertical: 30`b0
  • GND 1*GND
  • Reset Button 1*Reset Button
  • Power Consumption 6.5W
  • Waterproof Level IP65
  • LED Indicator PoE/LAN, LED1, LED2, LED3
  • Power Method PoE 802.3af/at
  • 24V0.5A Passive PoE
  • 12V 1A DC
  • Lightning Protection 6000V
  • Voltage range: 21-25V DC
  • Reception Sensitivity 11a 6Mbps -91dBm'b11.5dBm
  • 11n MCS7 HT20 -72dBm'b11.5dBm
  • 11ac MCS9 -62dBm'b11.5dBm
  • Channel Bandwidth 20/40/80MHz
  • Transmission Power Adjustable power by 1dBm
  • Wireless Security 64/128 WEP, WPA-PSK, WPA2-PSK, WPA
  • 1*PoE Power Adapter
  • 1*Quick Installation Guide
  • Operation Temperature -30℃ ~ 60℃
  • Storage Temperature -40℃ ~ 70℃
  • Operating Humidity 10%~90% non-condensing
  • Storage Humidity 10%~90% non-condensing
  • Default login IP 192.168.2.1

Frequently Bought Together Frequently bought

Product Information

Categories Networking / Tenda / Tenda Access Points
Brand Tenda
Model O6
Frequency 5GHz
Standard IEEE 802.11b/a/n/ac
Wireless Rate Up to 867Mbps
Antenna Gain 16dBi Dual Polarization
Ports 1 x 10/100/1000Mbps Ethernet
Power Method PoE 802.3af/at, 24V Passive PoE, DC
Power Consumption 6.5W
Lightning Protection 6000V
Waterproof IP65
Deployment Pole/Wall Mount
Dimensions 270 x 94.86 x 67.5mm
Operating Temperature -30 to 60C
Certification FCC, CE, RoHS
Barcode 6932849429206
