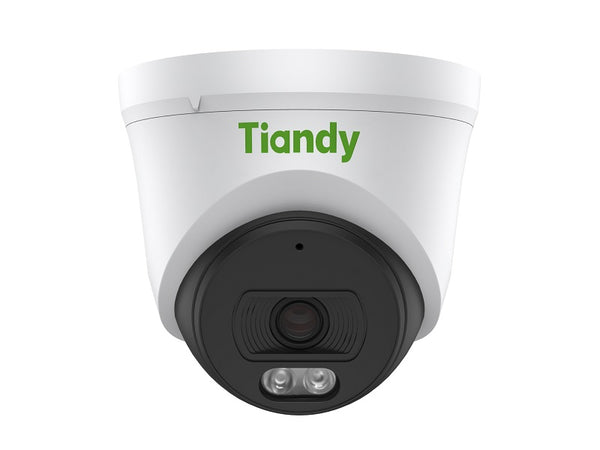

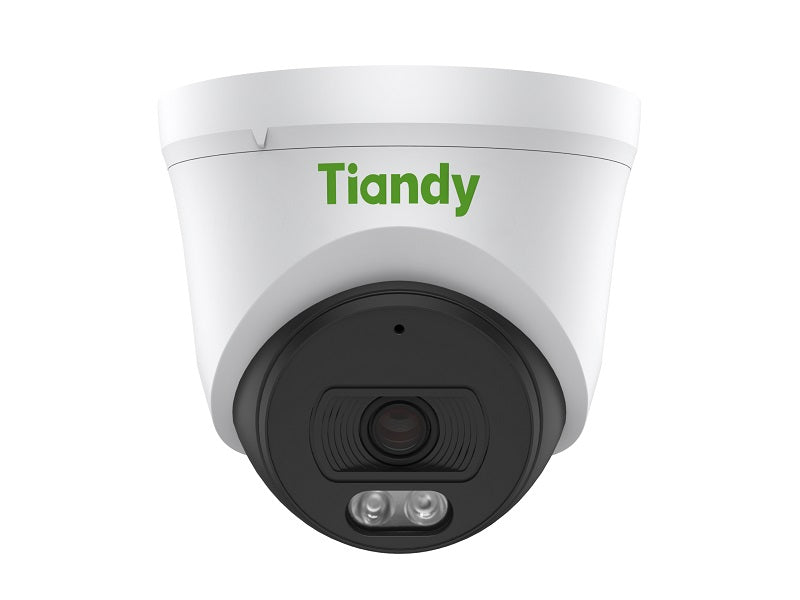

Tiandy Colorvu 2mp Ip Dome Camera 2.8m

OSD Overlay of additional characters in 1 regions, 1 line, with a maximum of 48 characters or 16 Chinese. Protocols HTTP; HTTPS; TCP/IP; UDP; UPnP; ICMP; DHCP; DNS; DDNS; Easy DDNS; NTP; TLS v1.2; QoS; IPv4; SSH;.

Key features

• Metal+plastic housing
• Built-in Mic
• Day&Night IR-cut filter with auto switch (ICR)
• Smart IR Yes
• WDR dwdr
• Illuminator
• Compression Standard
• Image
• Max. Resolution 2MP,1920`d71080@30fps
• BLC Yes
• HLC Yes
• AGC Yes
• White Balance Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/Filament Lamp/Lock
• White Balance
• Defog Yes
• Feature
• General Alarm Motion Detection; Mask Alarm
• Exceptions Alarm IP Address Conflict
• Linkage Method Trigger Warmlight; Trigger Capture; Alarm Output
• Scene
• Unicast; FTP
• System Compatibility P2P(Mutually exclusive with Profile G); ONVIF(Profile S/T) ; SDK; CGI; Milestone; RTSP
• Moblie Client EasyLive Plus
• Built-in Mic Yes
• Simple Chinese/Traditional Chinese/English/Spanish/Korean/Italian/Turkish/Russian/Thai/French/
• Polish/Dutch/Hebrew/Arabic/Vietnamese/German/Ukrainian/Portuguese/Albanian

Specifications

• I3w/e/y/2.8mm/v4.2
• Up to 2MP,1920`d71080@30fps
• S+265/h.265/h.264b/h.264m/h.264h
• Color:0.02Lux@(F1.6,AGC ON),B/W:0Lux with IR
• IR range up to 30m
• Operating conditions -30℃~60℃(-22℉~140℉), ≤95%RH
• DC12V'b125%,Max. 6.5W, PoE:IEEE 802.3af,Max. 7W
• Image Sensor 1/2.8"CMOS
• Min. Illumination Color:0.02Lux@(F1.6,AGC ON),B/W:0Lux with IR
• Shutter Time 1s~1/100000s
• S/N >39dB
• Angle Adjustment 0~340`b0(P); 0~75`b0(T); 0~360`b0(R)
• Lens
• Lens Type Fixed focal lens
• Focal Length 2.8mm
• Lens Mount M12
• Aperture Range F1.6
• Aperture Type Fixed
• Field of View 104.9`b0(H); 56.5`b0(V); 119.2`b0(D)
• DORI Distance Detect:38.6m
• Observe:15.3m
• Recognize:7.7m
• Identify:3.8m
• IR LEDs 2
• IR Distance Up to 30m
• Wavelength 850nm
• White LEDs 2
• Whitelight Distance 15m
• Video Compression S+265/H.265/H.264B/H.264M/H.264H
• Video Bit Rate 32k~6Mbps
• Audio Compression G.711A/G.711U/ADPCM_D
• Audio Sampling Rate 8kHz/32kHz/48kHz
• Main Stream PAL:25fps(1920`d71080, 1280`d7720, 640`d7480, 704`d7576)
• NTSC:30fps(1920`d71080, 1280`d7720, 640`d7480, 704`d7480)
• Sub Stream PAL:25fps(704`d7576, 704`d7288, 640`d7360, 352`d7288)
• NTSC:30fps(704`d7480, 704`d7240, 640`d7360, 352`d7240)
• 3D DNR Yes
• 2024.06.24
• ROI 8 rectangular static areas
• characters per region; 16*16/32*32/48*48
• Privacy Mask 4 black static areas
• Rules of Behavior Analyse In 1
• 2
• Remote Connection ≤2
• Client Easy7 VMS
• Web IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+
• Communication Interface 1*RJ-45 (10/100 Base-T)
• Web Client Language 19 languages
• Operating Temperature -30℃~60℃(-22℉~140℉)
• Operating Humidity ≤95%RH
• Storage Temperature -30℃~60℃(-22℉~140℉)
• Storage Humidity 10%~95%RH(non-condensing)
• Power Supply DC12V'b125%,Max. 6.5W; PoE:IEEE 802.3af,Max. 7W
• Protection Surge4000V; ESD6000V
• Boundary Dimensions 117(L)117(W)96(H)mm
• Package Dimensions 140(L)140(W)120(H)mm
• GrossWeight 0.35Kg
