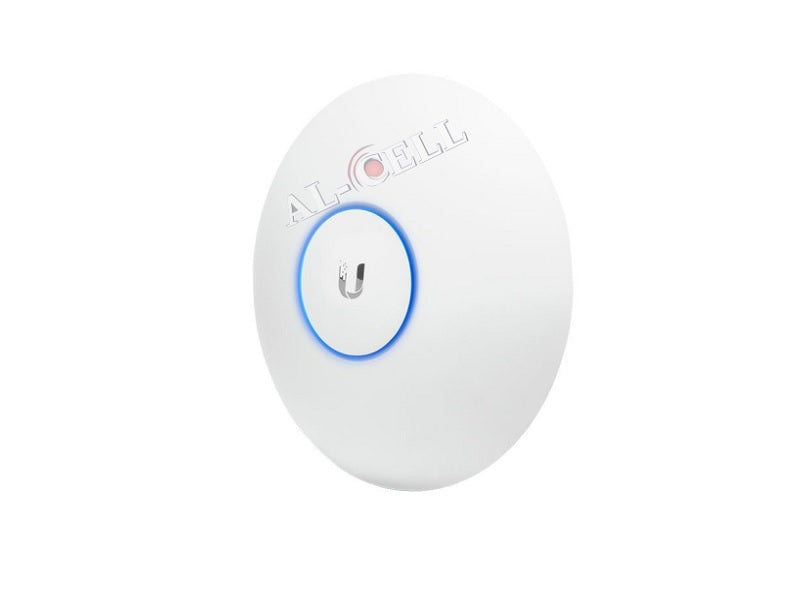

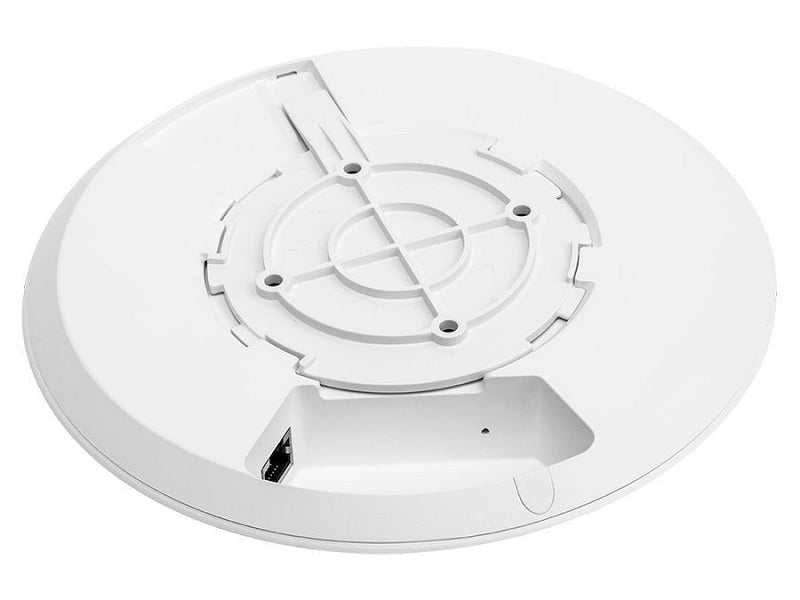

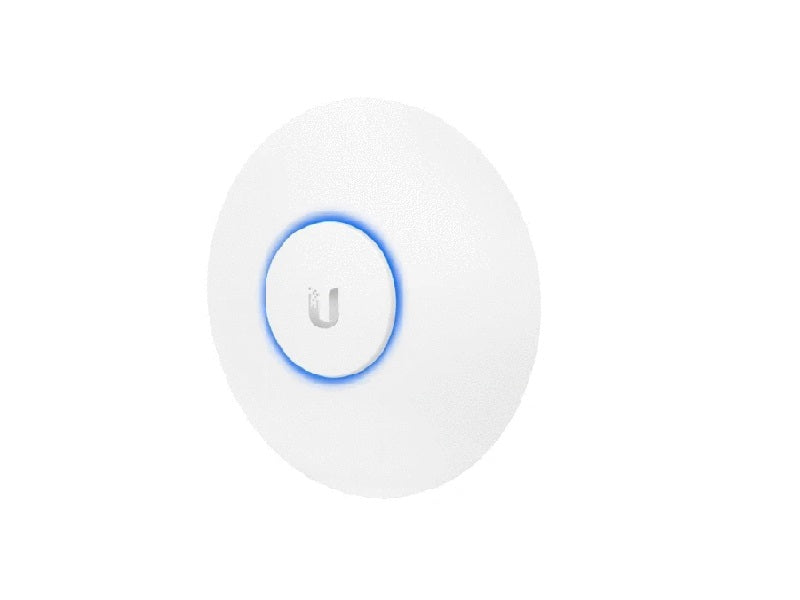

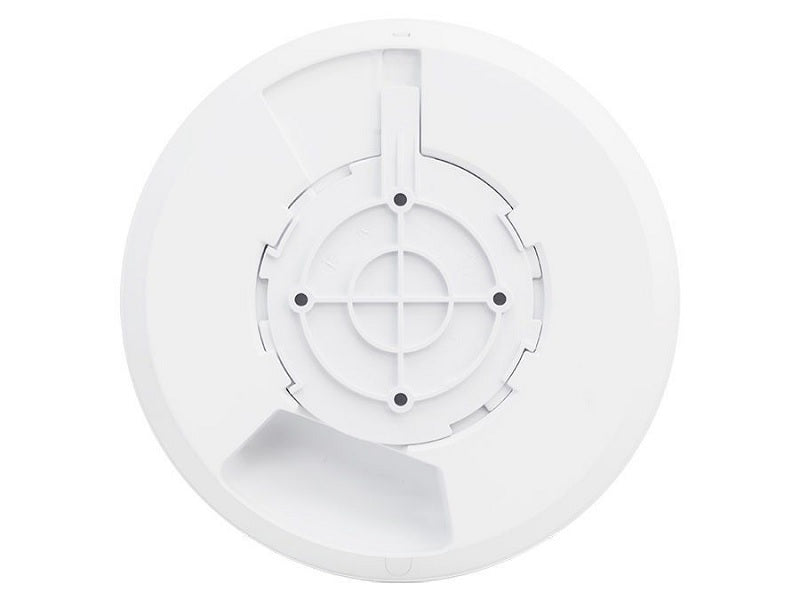

UBIQUITI Unifi Ac Long Range Dual Band

UniFi® is the revolutionary Wi-Fi system that combines enterprise performance, unlimited scalability, and a central management controller. UniFi 802.11AC Dual?Radio Access Points (APs) have a refined industrial design and can be easily installed using the included. Easily accessible through any standard web browser and the UniFi mobile app (iOS or Android), the UniFi Controller software is a powerful software engine ideal for high?density client deployments requiring low latency and high uptime performance.

Key features

• Access point ub-uap-ac-lr
• Ubiquiti Unifi AC Dual - Radio Access Points
• Uap-ac-lr
• Scalable Enterprise Wi-Fi Management
• mounting hardware.
• Use the UniFi Controller software to quickly configure and administer an enterprise Wi-Fi network - no special training required. RF map and performance features, real-time status, automatic UAP device detection, and advanced security options are all seamlessly integrated.
• Save Money and Save Time
• Unlike traditional enterprise Wi-Fi systems that use a hardware controller, UniFi comes bundled with a non-dedicated software controller that can be deployed on an on-site PC, Mac, or Linux machine; in a private cloud; or using a public cloud service.
• Powerful Hardware
• The UniFi 802.11AC Dual-Radio APs feature the latest in Wi-Fi 802.11AC MIMO technology.
• Intuitive UniFi Controller Software
• Configure and manage your APs with the easy-to-learn user interface.
• Expandable
• Unlimited scalability: build wireless networks as big or small as needed. Start with one (or upgrade to a three?pack) and expand to thousands while maintaining a single unified management system.
• Extend Your Coverage
• With the UniFi Controller software running in a NOC or in the cloud, administrators can manage multiple sites: multiple,distributed deployments and multi-tenancy for managed service providers. Below are some deployment examples.
• UniFi Controller
• Use the UniFi Controller to provision thousands of UniFi APs, map out networks, quickly manage system traffic, and provision additional UniFi APs.
• Breakthrough RF Map
• Use the RF map to monitor and analyze radio frequencies for optimal AP placement, configuration, and troubleshooting.
• Advanced RF performance and configuration features include spectral analysis, airtime fairness, and band steering.
• Detailed Analytics
• Use the configurable reporting and analytics to manage large user populations and expedite troubleshooting.
• Wireless Uplink
• Wireless Uplink functionality enables wireless connectivity between APs for extended range. One wired UniFi AP uplink supports up to four wireless downlinks on a single operating band, allowing wireless adoption of devices in their default state and real-time changes to network topology.
• Guest Portal/Hotspot Support
• Easy customization and options for Guest Portals include authentication, Hotspot setup, and the ability to use your own external portal server. Use UniFi’s rate limiting for your Guest Portal/Hotspot package offerings. Apply different bandwidth rates
• (download/upload), limit total data usage, and limit duration of use.
• All UniFi APs include Hotspot functionality:
• Built-in support for billing integration using major credit cards.
• Built-in support for voucher-based authentication.
• Built-in Hotspot Manager for voucher creation, guest management, and payment refunds.
• Full customization and branding of Hotspot portal pages.
• Multi-Site Management
• A single UniFi Controller running in the cloud can manage multiple sites: multiple, distributed deployments and multi-tenancy for managed service providers. Each site is logically separated and has its own configuration, maps, statistics, guest portal, and administrator read/write and read-only accounts.
• WLAN Groups
• The UniFi Controller can manage flexible configurations of large deployments. Create multiple WLAN groups and assign them to an AP’s radio.
• Dashboard
• UniFi provides a visual representation of your network’s status and delivers basic information about each network segment.
• RF Map
• Monitor UniFi APs and analyze the surrounding RF environment.
• Statistics
• UniFi visualizes network traffic in clear and easy?to?read graphs.
• UniFi Mobile App
• Manage your UniFi devices from your smartphone or tablet.
• Easy Mounting
• Sleek design for seamless integration into any environment (all accessories included).
• LED
• Unique provisioning and status LED provides administrator location tracking and alerts for each device.
• Includes PoE functionality. Each single-pack - except for the UniFi AC In-Wall AP, In?Wall Pro AP, and Pro AP - includes a PoE adapter.
• PoE Switching
• UniFi Switch with PoE
• You can power your UniFi devices with a UniFi PoE Switch (sold separately). Available in 8, 16, 24, and 48?port versions with multiple power output options, the UniFi PoE Switch conveniently offers auto?sensing IEEE 802.3af PoE/802.3at PoE+.
• PoE Standards
• The UniFi AC EDU, In-Wall, In-Wall Pro, and Pro APs are compatible with an 802.3at PoE+ compliant switch. The UniFi AC Pro AP can also use 802.3af PoE.
• Ideal for long-range deployments, the UniFi AC LR AP offers simultaneous, dual-band operation with 3x3 MIMO in the 2.4 GHz band and 2x2 MIMO in the 5 GHz band.
• The innovative antenna design provides a long-range, symmetrical-link coverage area, and the antenna gain of the UniFi AC LR AP performs better than one-way, high transmit power does for connecting distant clients.
• Dimensions : 175.7 x 175.7 x 43.2 mm (6.92 x 6.92 x 1.70")
• : 24V Passive PoE (Pairs 4, 5+; 7, 8 Return)
• Antennas : (1) Dual-Band Antenna, Tri-Polarity, 2.4 GHz: 3 dBi, 5 GHz: 3 dBi
• Operating Temperature : -10 to 70`b0 C (14 to 158`b0 F)
• Advanced Traffic Management
• Supported Data Rates (Mbps)
• 802.11ac : 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
• 802.11n : 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)
• 802.11a : 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11g : 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• UniFi AP AC LR
• Mounting Bracket
• Ceiling Backing Plate
• Flat Head Screws (Qty. 4)
• Keps Nuts (Qty. 4)
• Screws (Qty. 4)
• Screw Anchors (Qty. 4)
• with Mounting Bracket
• Quick Start Guide

Specifications

• Weight : 240 g (8.5 oz)
• With Mounting Kits : 315 g (11.1 oz)
• Networking Interface : (1) 10/100/1000 Ethernet Port
• Buttons : Reset
• Power Method : 802.3af/A PoE
• Power Supply : 24V, 0.5A Gigabit PoE Adapter*
• Maximum Power Consumption : 6.5W
• 2.4 GHz : 24 dBm
• 5 GHz : 22 dBm
• Wi-Fi Standards : 802.11 a/b/g/n/ac
• Wireless Security : WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
• BSSID : Up to 8 per Radio
• Mounting : Wall/Ceiling (Kits Included)
• Operating Humidity : 5 to 95% Noncondensing
• Certifications : CE, FCC, IC
• Vlan : 802.1Q
• Advanced QoS : Per-User Rate Limiting
• Guest Traffic Isolation : Supported
• WMM : Voice, Video, Best Effort, and Background
• Concurrent Clients : 250+
• Standard Data Rates
• 802.11b : 1, 2, 5.5, 11 Mbps
• Gigabit PoE* (24V, 0.5A)
