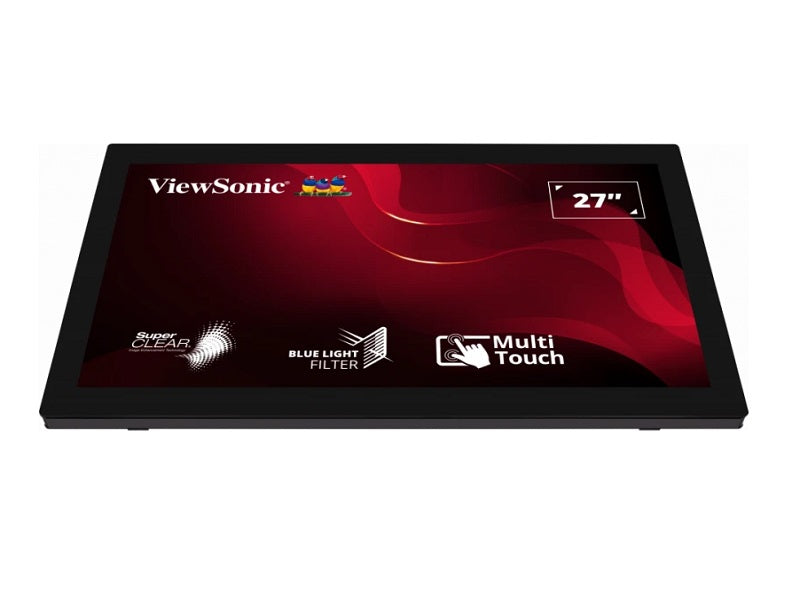

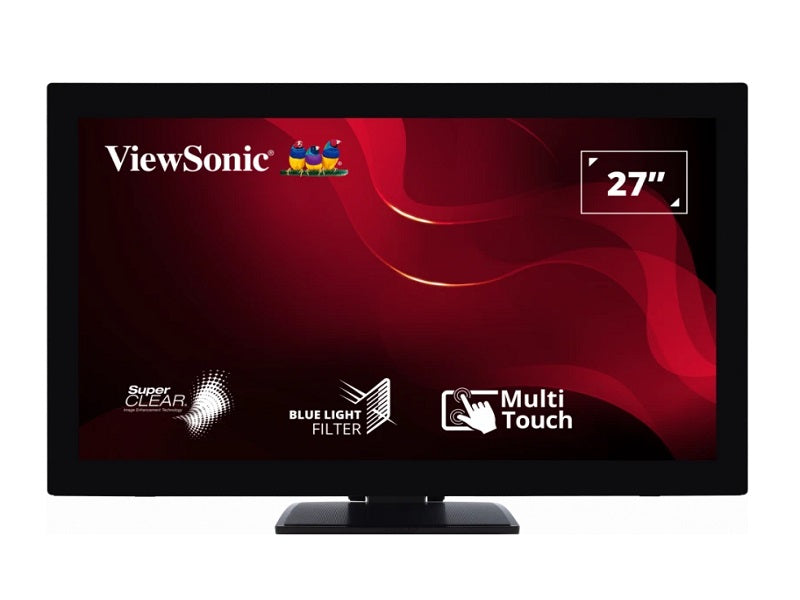

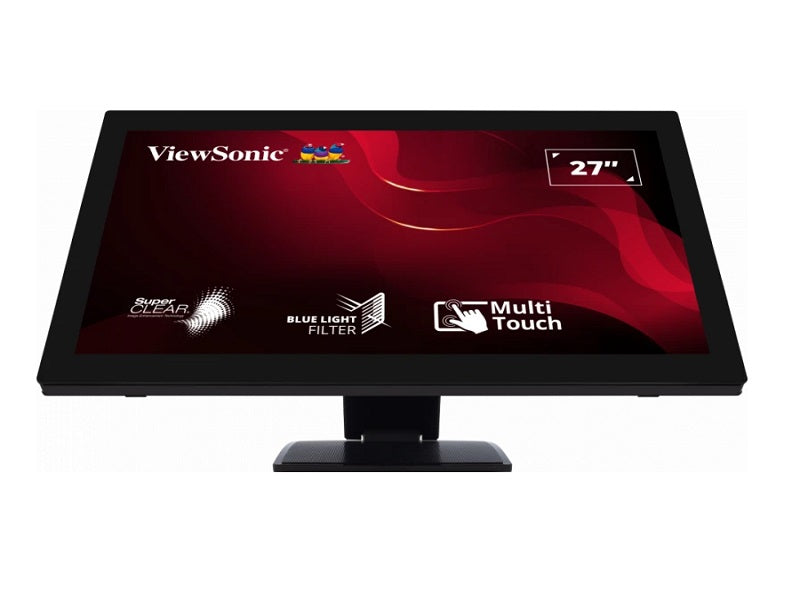

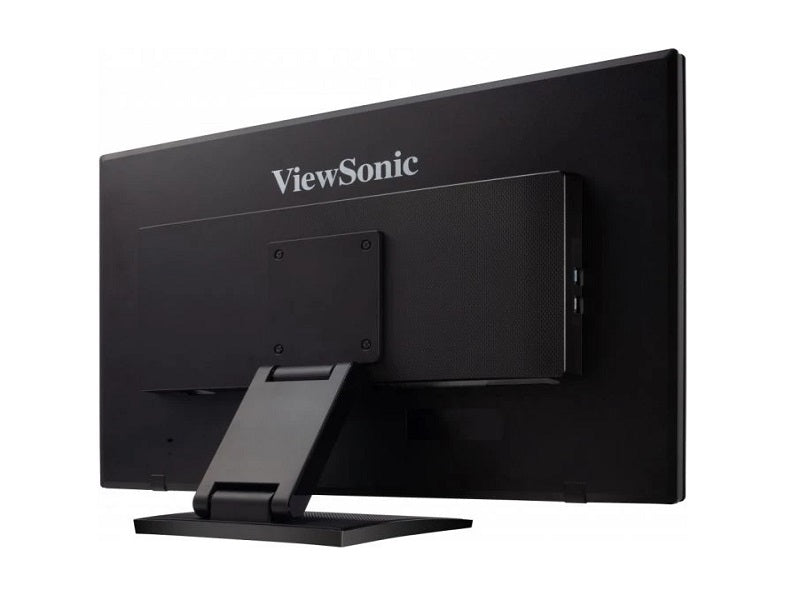

VIEWSONIC 27" VA Type LCD Touch Monitor

The ViewSonic TD2760 is an ideal solution for both commercial and consumer touch screen applications. With an intuitive 10-point multi-touch display and a full 1080p HD resolution, the 27-inch TD2760 delivers a versatile solution for use in the office or at home, as well as for use as an information kiosk in public areas, retail, and corporate sectors. SuperClear® technology with ultra-wide viewing angles and 50M:1 MEGA Dynamic Contrast Ratio bring greater definition and clarity to multimedia content. For added convenience, cross-platform compatibility works with operating systems such as Windows 10/11, Linux, Chrome, and Android.* Built-in connectivity options include DisplayPort, HDMI, and VGA ports along with a VESA mount design, offering additional convenience for use as a wall-mount display. Additionally, the RS232 port provides local control for other RS232 connected devices, while HDMI CEC offers local control of multiple connected devices such as HD set-top boxes, media players, and sound systems. Even more, the ergonomic stand makes it easy for the user to tilt and raise the monitor, or lay it flat for the most natural position, and create a comfortable working environment. Lastly, low power consumption with Energy Star certification saves energy costs while reducing carbon emission. *Supports Windows 7/8/10/11, the latest Linux Kernel 4.X/3.X, the latest Chrome version, and Android 6.0 & 7.0. On Screen Display: Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall.

Key features

• Pixel Size: 0.311 mm (H) x 0.311 mm (V)
• Compatibility
• Additional Hardware
• Controls
• Wall Mount
• Digital Sync: TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.2)
• Regulations: cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BIS
• PACKAGE CONTENTS: TD2760 x1, 3-pin Plug (IEC C13 / CEE22) x1, VGA Cable (Male-Male) x1, HDMI Cable (v1.4; Male-Male) x1, Audio Cable (Male-Male) x1, USB A/B Cable (v3.2; Male-Male) x1, Quick Start Guide x1
• Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.

Specifications

• Display Size (in.): 27
• Viewable Area (in.): 27
• Panel Type: VA Technology
• Resolution: 1920 x 1080
• Resolution Type: FHD (Full HD)
• Static Contrast Ratio: 3,000:1 (typ)
• Dynamic Contrast Ratio: 50M:1
• Light Source: LED
• Brightness: 250 cd/m'b2 (typ)
• Colors: 16.7M
• Color Space Support: 8 bit (6 bit + Hi-FRC)
• Aspect Ratio: 16:9
• Response Time (Typical GTG): 6ms
• Response Time (GTG w/OD): 6ms
• Response Time (Typical Tr+Tf): 12ms
• Viewing Angles: 178° horizontal, 178° vertical
• Backlight Life (Hours): 30000 Hrs (Min)
• Curvature: Flat
• Refresh Rate (Hz): 60
• Low Blue Light: Software solution
• Flicker-Free: Yes
• Color Gamut: NTSC: 72% size (Typ)
• sRGB: 102% size (Typ)
• Touch Screen: Projected Capacitive, 10-point multi-touch
• Surface Treatment: Anti-Glare, Hard Coating (≧6H)
• Cover Glass Thickness: 1.88mm
• PC Resolution (max): 1920x1080
• Mac® Resolution (max): 1920x1080
• PC Operating System: Windows 7/8/8.1/10/11 certified; macOS tested
• Mac® Resolution (min): 1920x1080
• Connector
• VGA: 1
• USB 3.2 Type A Down Stream: 2
• USB 3.2 Type B Up Stream: 1
• 3.5mm Audio In: 1
• 3.5mm Audio Out: 1
• Hdmi 1.4: 1
• DisplayPort: 1
• Power in: 3-pin Socket (IEC C14 / CEE22)
• RS232 In: 1
• Internal Speakers: 2Watts x2
• Eco Mode (Conserve): 19W
• Eco Mode (optimized): 22W
• Consumption (typical): 26W
• Consumption (max): 28W
• Voltage: AC 100-240V
• Stand-by: 0.3W
• Power Supply: Internal Power Supply
• Kensington Lock Slot: 1
• Physical Controls: 1, 2, Up, Down, Power
• Temperature: 32`b0F to 104`b0F (0`b0C to 40`b0C)
• Humidity (non-condensing): 20% to 90%
• VESA Compatible: 100 x 100 mm
• Frequency Horizontal: 15 ~ 90KHz
• Frequency Vertical: 50 ~ 76Hz
• Analog Sync: Separate/Composite/SOG - RGB Analog
• Tilt (Forward/Back): -4° / 90°
• Net (lbs): 17.4
• Net Without Stand (lbs): 12.2
• Gross (lbs): 22.6
• Net (kg): 7.9
• Net Without Stand (kg): 5.5
• Gross (kg): 10.2
• Packaging (in.): 29.6 x 20.7 x 8
• Physical (in.): 26 x 17.5 x 9.4
• Physical Without Stand (in.): 26 x 16.2 x 2.3
• Packaging (mm): 753 x 525 x 204
• Physical (mm): 660 x 443 x 239
• Physical Without Stand (mm): 660 x 410 x 58
• Warranty: *Warranty offered may differ from market to market
• Power Management: Energy Star standards, EPEAT
