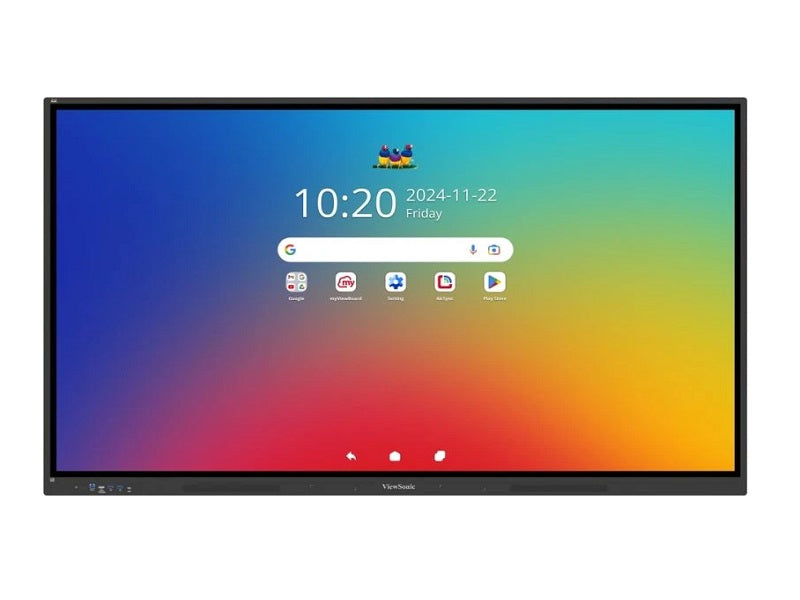

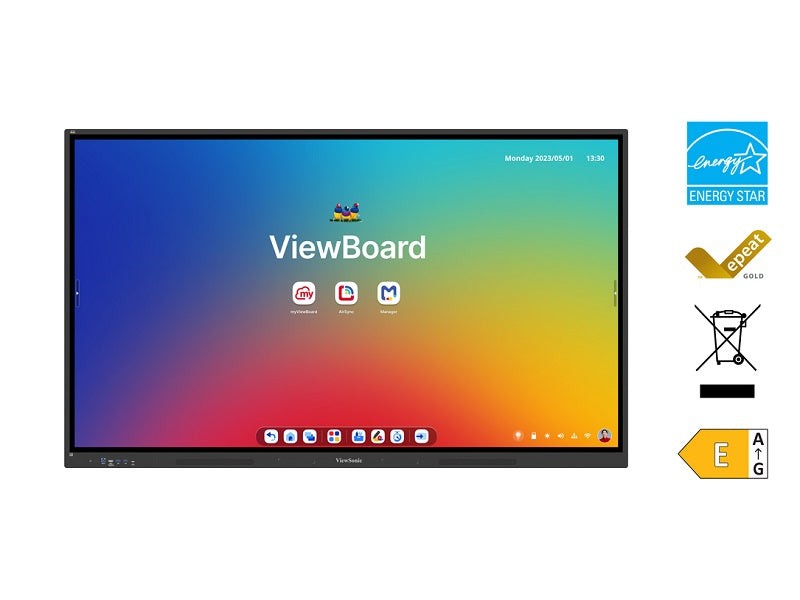

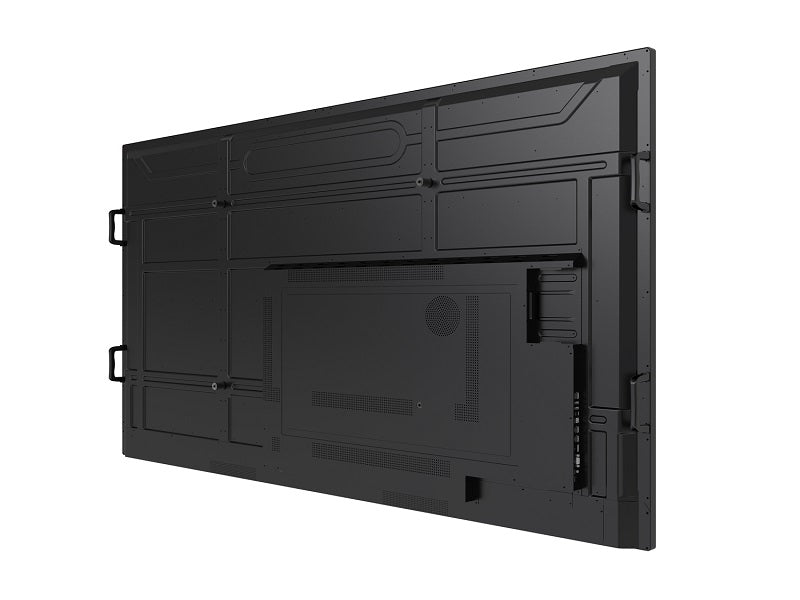

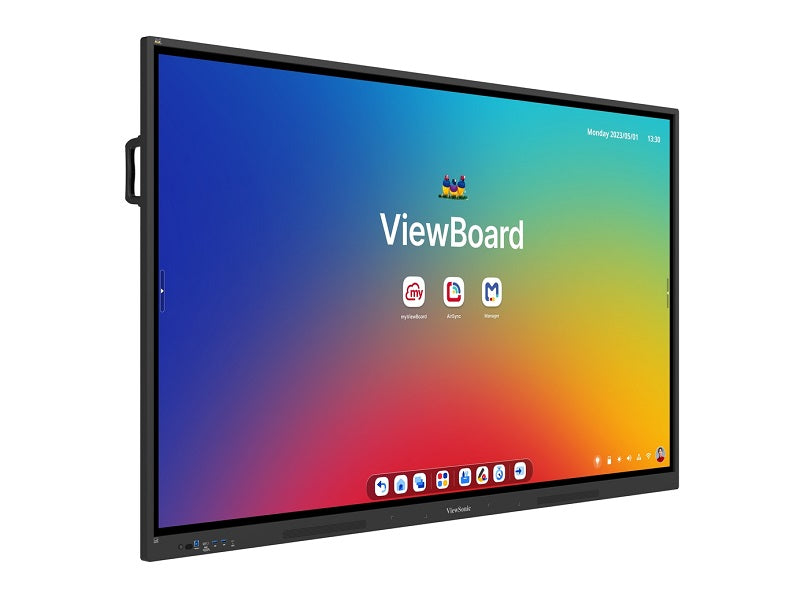

Viewsonic ViewBoard 86" 4K Interactive

Start your EdTech journey right with the ViewBoard IFP34 Series, designed with enhanced writing functionality and optimized power efficiency to meet the needs of K12 and higher education. Powered by EDLA-certified Android 14, it offers a smooth, secure user experience with full access to the Play Store for endless educational and productivity apps. Integrated ViewSonic Education Software takes it even further, adding powerful tools for digital whiteboarding, wireless casting, and centralized device management. Together, these features empower educators to create engaging, interactive learning environments, all while simplifying classroom workflows. Panel Type: TFT LCD Module with DLED Backlight.

Key features

• Backlight Life: 50,000 Hours (8 hours of use per day)
• Touch
• HDMI: x3 (Front x1: HDMI2.0/HDCP 2.2/CEC; Rear x 2:HDMI2.0/HDCP 2.2/CEC/ARC for HDMI 2)
• Type A: USB3.2 Gen 1 x 4 (Front x 2; Rear x 2 )
• Type B: USB 3.0 x2 (Rear x1 + Front x1)
• Type C: Front*1 [PD65W (15W with OPS, 65W without OPS)+ DP1.2 + Data + 10M/100M sharing)]
• Top Camera Plate
• Yes
• Bundled Software
• Pro Annotation Software: myViewBoard for Windows (Embedded in optional Windows Slot-in PC)
• All-in-one USB port: (combine slot-in PC/Android/HDMI USB port) Front “SmartPort™ USB” to all channels.
• Simple LAN sharing between IFP and slot-in device: 10/100M for Android & Slot-in PC
• Physical (inch / mm): 77.2 x 45.8 x 3.45 (in.) / 1961.8 x 1163.9 x 87.7 (mm)
• Packaging (inch / mm): 82.48 x 49.8 x 7.28(in.)/ 2095 x 1265 x 185 (mm)
• FCC/ICES003, EPEAT, CE EMC, LVD or CB, RoHS Green BOM, & RoHS DoC, ErP, REACH SVHC List, & DoC, EEL, WEEE, BSMI,BIS
• Energy Star version
• EEI rating
• F
• 3m power cord by ship area 2. Remote control with AAA battery 3. 3m touch USB cable 4. Touch pen x 2 (VB-PEN-009) 5. Quick Start Guide + Compliance statement 6. RS232 adapter 7. Clamp x 5 8. Camera Plate 9. Screw x 8 (camera 2+2, wall mount 4) 10. HDMI cable 3m
• Compatible Slot-in PC
• Note
• Product specifications are subject to change without notice.

Specifications

• 8gb/128gb
• Panel Size: 86"
• Display Area (mm): 1895.04(H) x 1065.96V)
• Aspect Ratio: 16:9
• Resolution: UHD 3840x2160(Pixels)
• Colors: 1.07B colors
• Brightness: 350 nits
• Contrast Ratio: 5000:1 (max. with DCR enabled)
• Response Time: 8ms
• Viewing Angles: H=178, V=178
• Surface Treatment: Hardness: 7H Anti-glare coating
• Orientation: Landscape
• Processor: Quad-core
• RAM: 8GB DDR4
• Storage: 128 GB
• Type/ Tech: Ultra Fine Touch Technology
• Touch Resolution: 32767 x 32767
• Touch Point: 40 points touch
• Palm Rejection: Yes
• RGB / VGA: x1
• DisplayPort: x1
• Audio: x1
• RS232: x1
• Sd/sdhc: x1
• OPS: x1 (Optional Intel Standard OPS)
• WiFi: x1 (Optional VB-WIFI-002/VB-WIFI-004/VSB-050)
• Hdmi: hdmi 2.0 x1
• SPDIF: x1
• RJ45: x2
• USB 2.0x1 (Rear)
• Rear *1 (PD15W +Data)
• 16W x 2
• Android 14 EDLA
• Basic Annotation Software: myViewBoard
• Wireless Presentation: AirSync
• Device Management: Manager
• ViewSonic Launcher: Yes
• Light Sensor: Yes
• Voltage: 100-240V AC
• Consumption: On:114.15W ; Off: ≤ 0.5W
• Wall Mount (VESA® ): 800*600
• Temperature (° C): 0`b0C to 40`b0C
• Humidity: 20% ~ 80% RH non-condensing
• Dimensions (W x H x D)
• Net (lb / kg): 137.35 lb / 62.3 kg
• Gross (lb / kg): 170.42 lb / 77.3kg
• 8.0
• Vpc3x, vpcf5-2a, vpcf5, vpc2x, vpc-a31-o1
