ZATECH VGA-2002 2-Port VGA Splitter - 1920x1440, 200MHz, 30m, 1 In 2 Out

Send the same VGA signal to two displays at once with the ZATECH VGA-2002 2-port VGA splitter. It takes a single VGA input and duplicates it across two VGA outputs, making it easy to mirror a presentation, monitor feed or signage display to a second screen without needing a graphics card with multiple outputs.

Rated for a 200MHz bandwidth and resolutions up to 1920 x 1440, the splitter maintains a sharp, stable image on both connected displays. It can transmit the signal over distances of up to 30 metres, making it suitable for boardrooms, classrooms, retail signage and other setups where the source and displays aren't right next to each other.

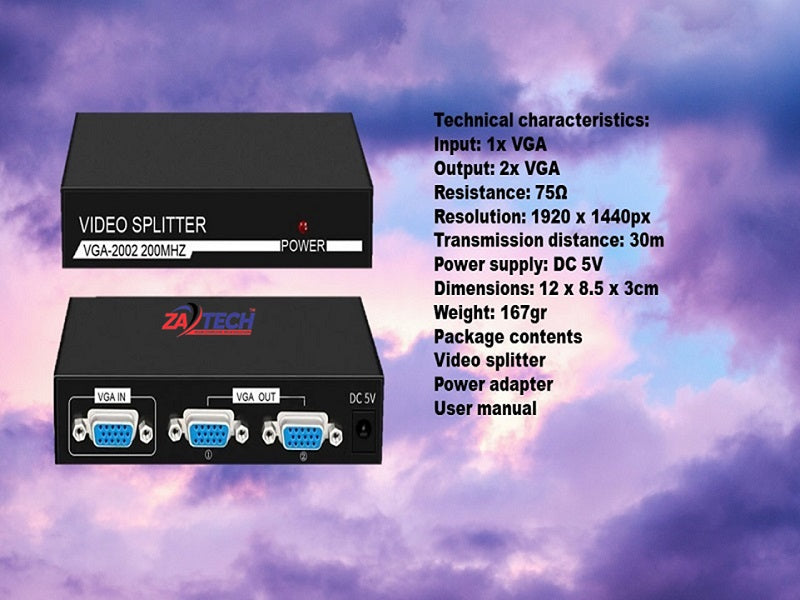

Key features

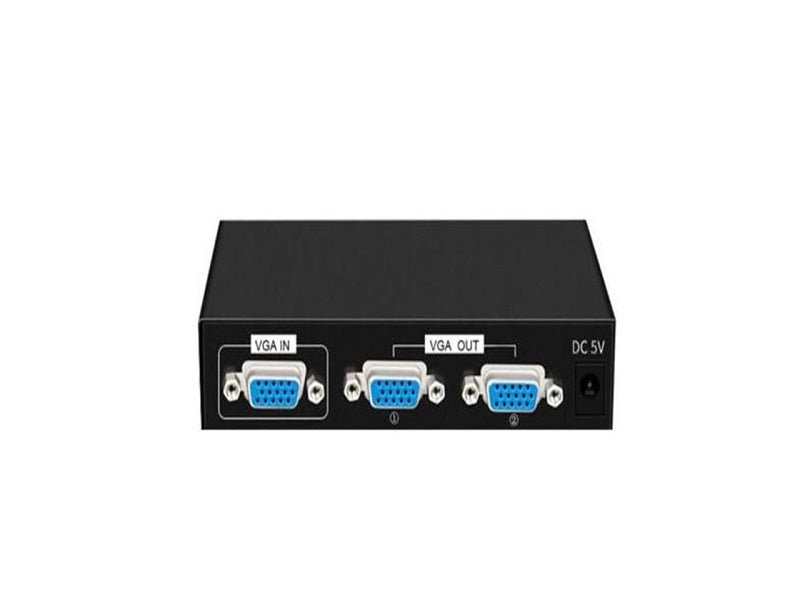

• 1 x VGA input, 2 x VGA outputs
• 200MHz bandwidth for a stable, sharp signal
• Supports resolutions up to 1920 x 1440
• 75-ohm impedance for consistent signal quality
• Transmission distance of up to 30 metres
• Powered via DC 5V power supply
• Compact dimensions of 12 x 8.5 x 3cm

Ideal for

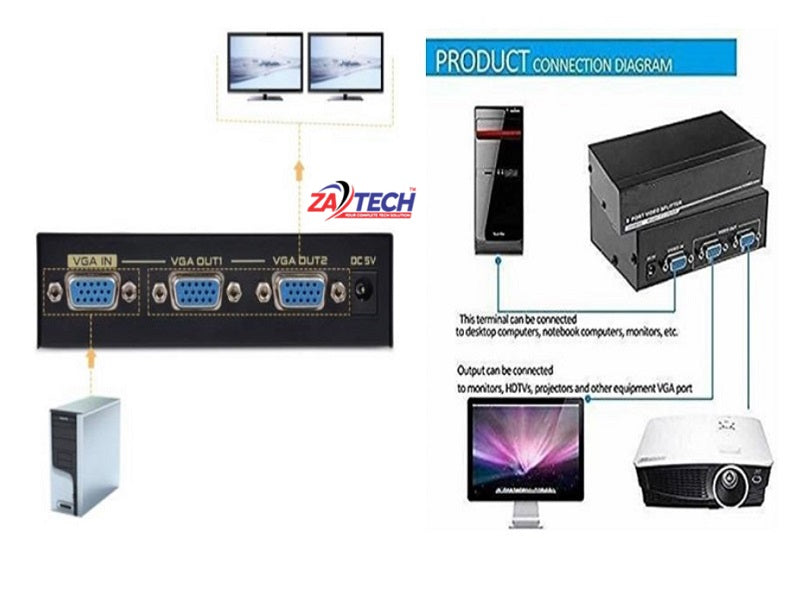

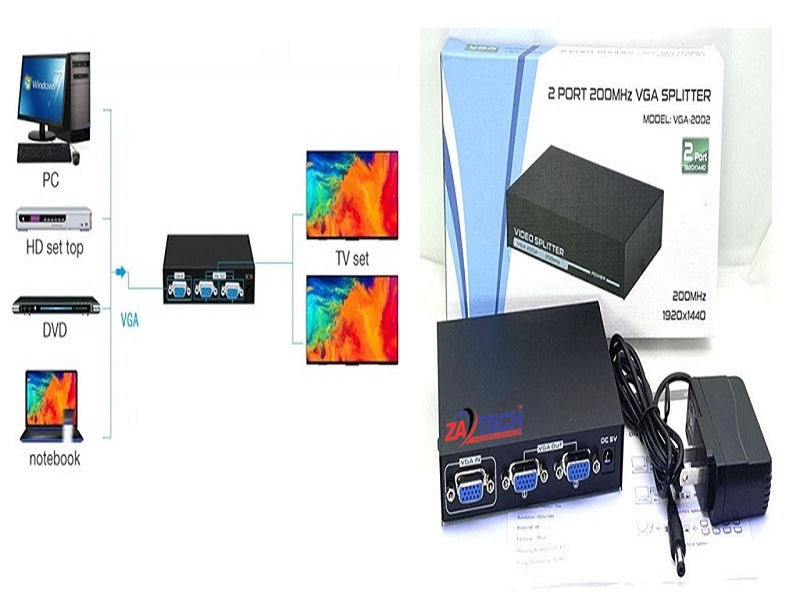

• Mirroring a presentation to two VGA displays or projectors
• Classrooms, boardrooms and retail signage setups
• Extending a VGA signal over longer cable runs

Good to know

This is a splitter, not a switch — both outputs display the same source signal simultaneously rather than letting you select between different sources. A user manual is included to guide setup and connection.
