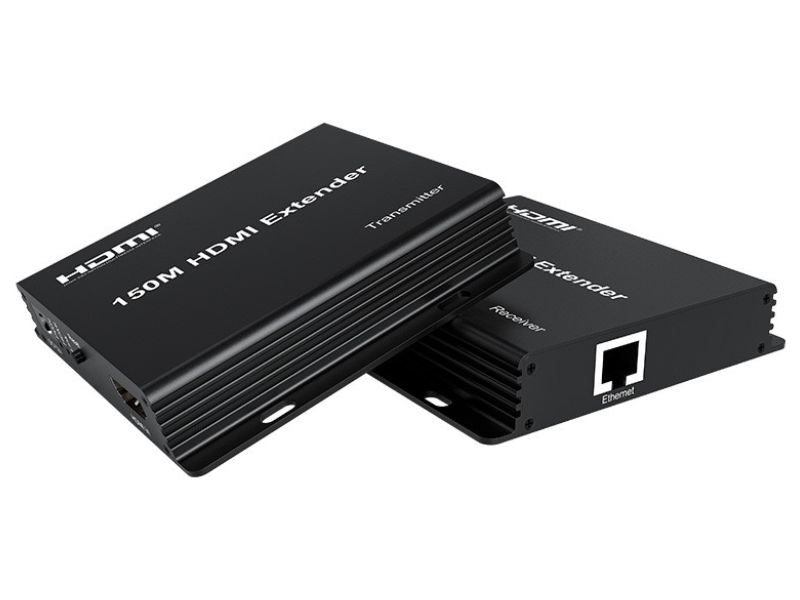

ZATECH Hdmi Extender 150 Mtr

The Extender uses single cat5e or cat6(recommended) cables instead of HDMI. cable to transmit high definition signal up to 150 meters, cutting down the cost. The.

Key features

• High Quality 1080P HDMI Extender 150M HDMI Extender
• Extender is designed to supply for long distance transmission of high definition signal.

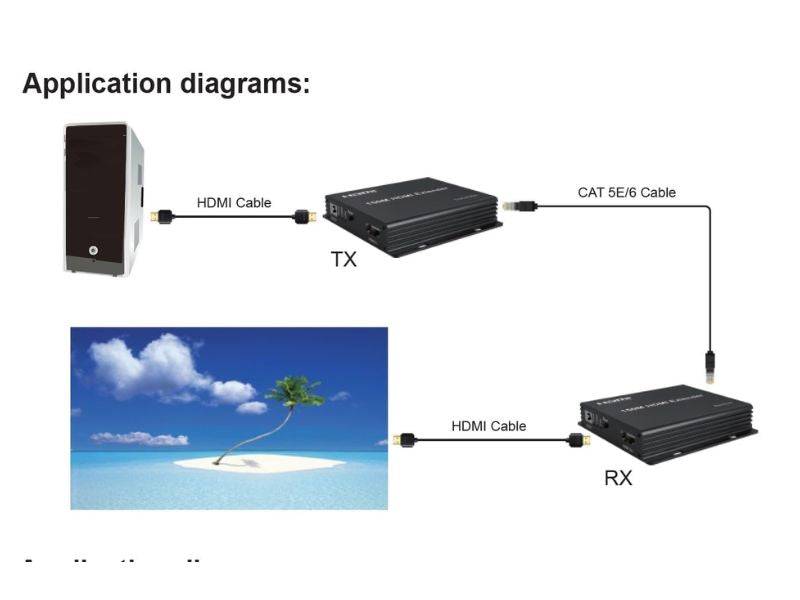

• Support point-to-point mode and cascade connection mode;
• Low power consumption, low temperature and high safety'a3`bb
• The design of pure hardware, plug and play, no need for additional software.
• Resolutions ...................................................................................... 480P/720P/1080P
• Support video color format `85.`85`85`85`85`85`85`85`85`85`85`85`85`85`85.`85...... 8bit YCbYCr/RGB
• Support audio format ............................................................................................. LPCM
• Max bandwidth `85`85`85`85`85`85`85`85`85`85`85`85`85`85`85`85`85`85`85`85`85`85`85`85.`85.. 148.5MHz
• Max baud rate `85`85`85`85`85`85.`85`85.`85`85`85`85`85`85`85.`85`85`85`85.`85`85`85`85`85`85`85... 1Gbps
• Input HDMI cable distance `85`85`85`85.`85................ ≤10m AWG26 HDMI standard cable
• Output HDMI cable distance ................................ ≤15m AWG26 HDMI standard cable
• Power adapter format ..........`85. Input AC (50HZ, 60HZ) 100V-240V; output: DC5V/1A
• The max working current ..`85`85`85`85`85...`85`85`85`85`85...`85`85............................... 380mA

Specifications

• Support 150m long distance transmission;
• Size(L-W-H) .............................................................................................. 90*91*19mm
• Weight ............................................................................................................. 120g x 2
• Operating Temperature/Humidity ................. 0℃-45℃/10%-80%RH(no condensation)

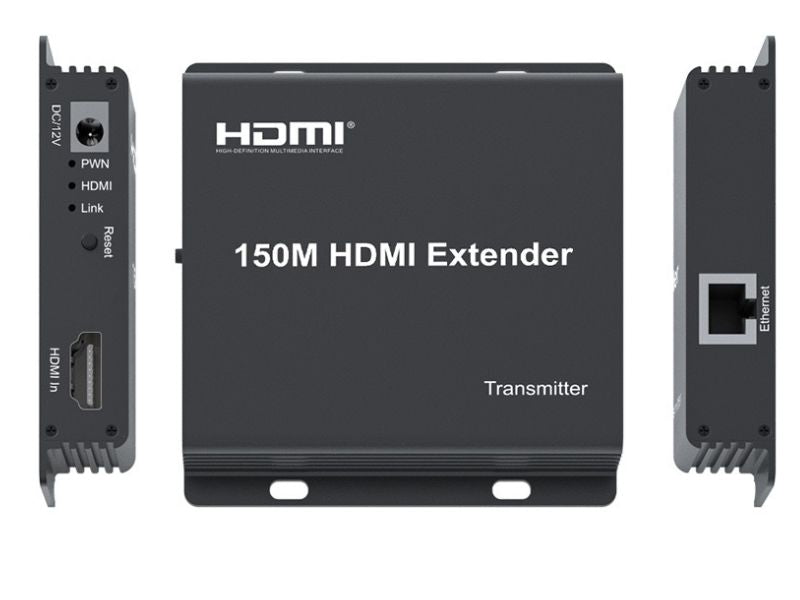

• 1 x Transmitter

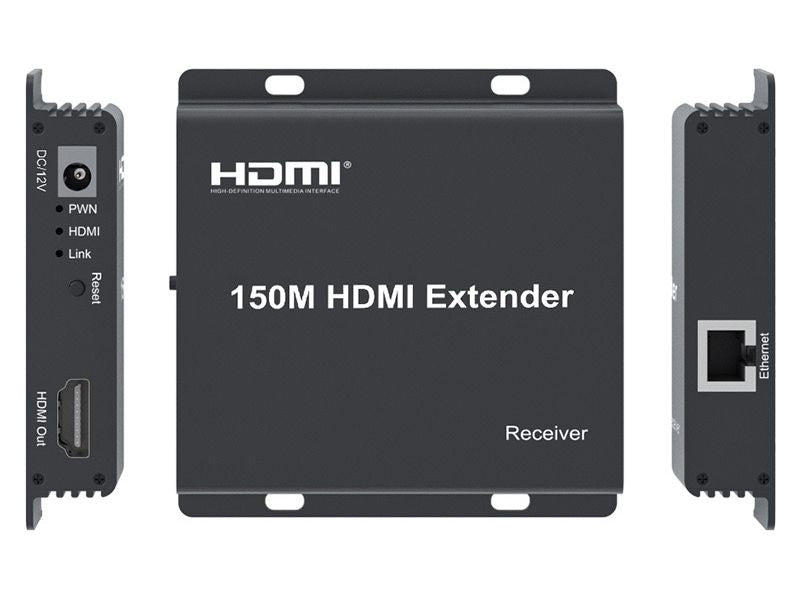

• 1 x Receiver
• 2 x 5V power adapters
• 1 x User’s Manual
