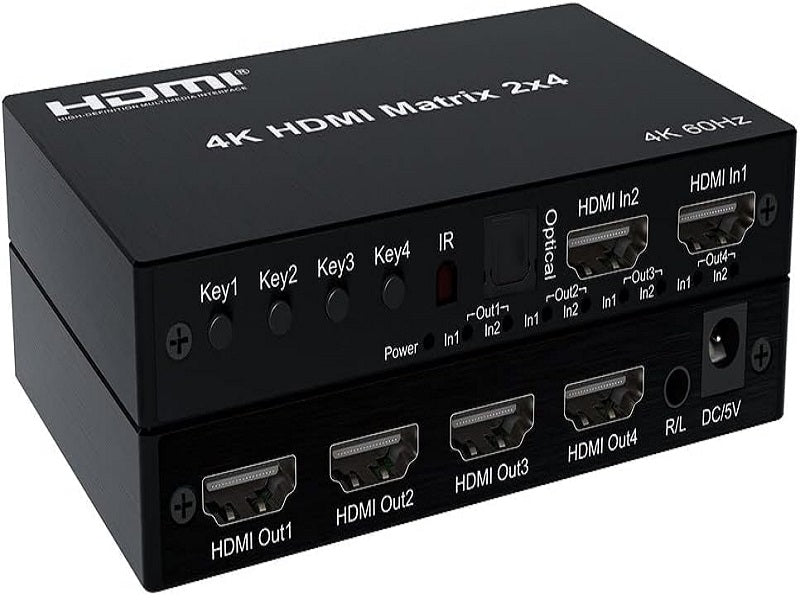

ZATECH Hdmi Matrix 2X4 - 4K@60Hz
ZATECH Hdmi Matrix 2X4 - 4K@60Hz
ZA TECH
R 549
Estimated delivery
2–4 working days
Out of stock
FREE NATIONWIDE DELIVERY
on orders over R 500
on orders over R 500
Quantity
Out of stock
When do I get it?
Estimated delivery times depend on where you are. Your exact date is confirmed at checkout.
| Delivery destination | Delivery time |
|---|---|
| Cape Town, Durban, Johannesburg & Pretoria | 2–4 working days |
| Regional areas | 5–6 working days |
| Remote areas | 3–7 working days |
- Interest Free Payments available
- Hassle Free Returns within 7 days
- 6-month limited warranty
Description

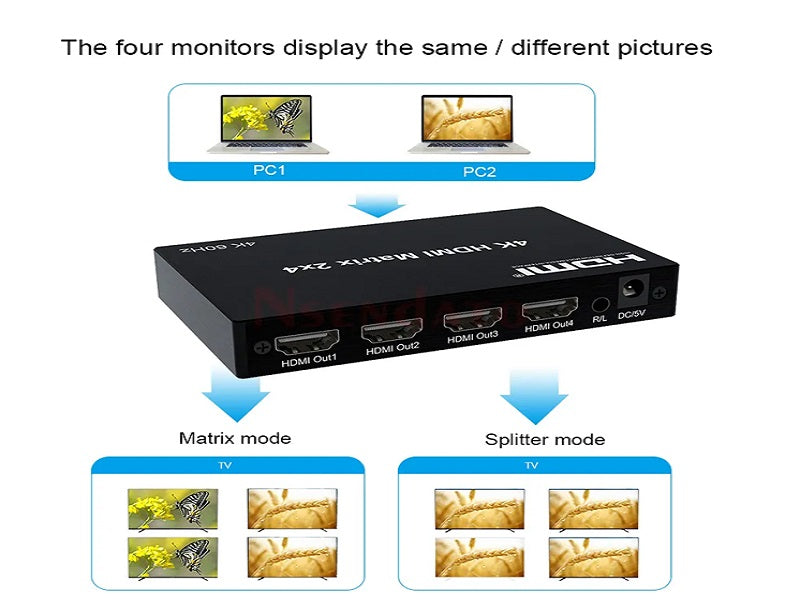

The HDMI Matrix 2x4 allows you to connect two HD signal sources to four HD display terminals with fiber optic and stereo headphone outputs simultaneously via one HDMI output port. This matrix allows you to easily switch between two HDMI devices to four HDMI-enabled monitors or projectors. Our devices provide solutions for noise, space and security concerns, data center controls, information distribution, conference room presentations, and school and corporate training environments.
Key features
- HDMI resolution: up to 3840*2160/60Hz.
- Supported video formats: 8/10/12 bit deep color.
- Input cable distance: 4K/30Hz≤15M AWG26 HDMI standard cable 4K/60Hz ≤5M HDMI 2.0 standard cable.
- Output cable distance: 4K/30Hz≤15M AWG26 HDMI standard cable 4K/60Hz ≤5M HDMI 2.0 standard cable.
- Power adapter format: Input: AC (50HZ, 60HZ) 100V-240V, Output: DC5V/1A.
- Operating humidity range: 5~90%RH (non-condensing).
Specifications
- Supported audio formats: LPCM/DTS/Dolby-AC3.
- Maximum bandwidth: 600MHz.
- Maximum baud rate: 3x6Gbps.
- Maximum operating current: 750mA.
- Operating temperature range: (-15~+45℃).
Frequently Bought Together Frequently bought
Product Information
| Categories | Networking / Za Tech / ZA TECH Networking |
| Brand | Zatech |
| Configuration | 2x4 HDMI Matrix |
| Max Resolution | 3840x2160 @ 60Hz |
| Video Format | 8/10/12 bit deep color |
| Audio Format | LPCM/DTS/Dolby-AC3 |
| Max Bandwidth | 600MHz |
| Max Baud Rate | 3x6Gbps |
| Max Working Current | 750mA |
| Power Input | AC 100-240V (50/60Hz) |
| Power Output | DC 5V / 1A |
| Operating Temperature | -15 to +45 C |
| Operating Humidity | 5-90% RH (non-condensing) |
| Barcode | ZA-HM2X4-4K |
