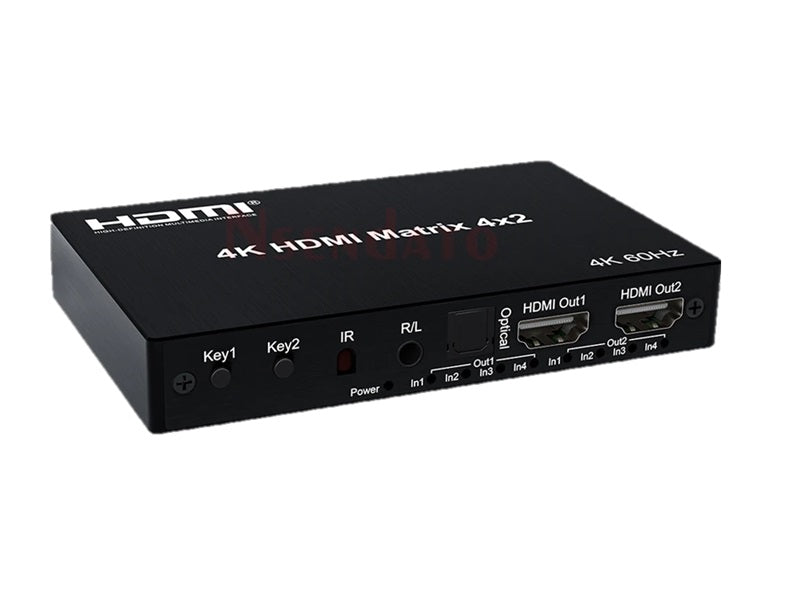

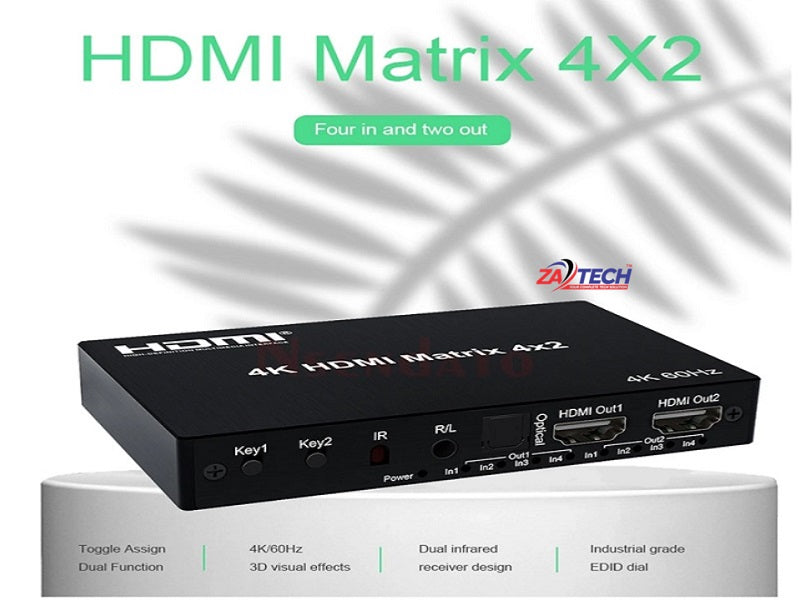

ZATECH Hdmi Matrix 4X2 - 4K@60Hz

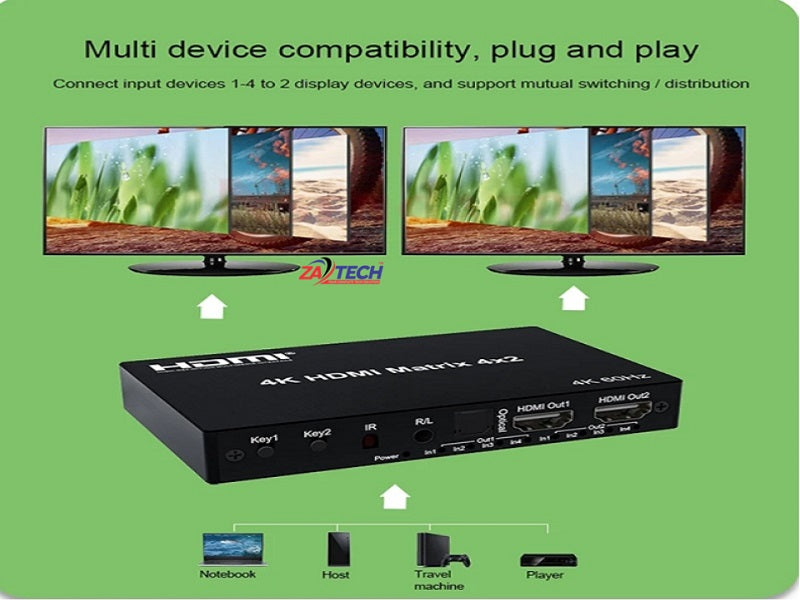

HDMI Matrix 4x2 connects 4 HD signal sources, 2 HD terminals,. optical fiber and stereo headphone output at the same time via HDMI OUT 1 port.

Key features

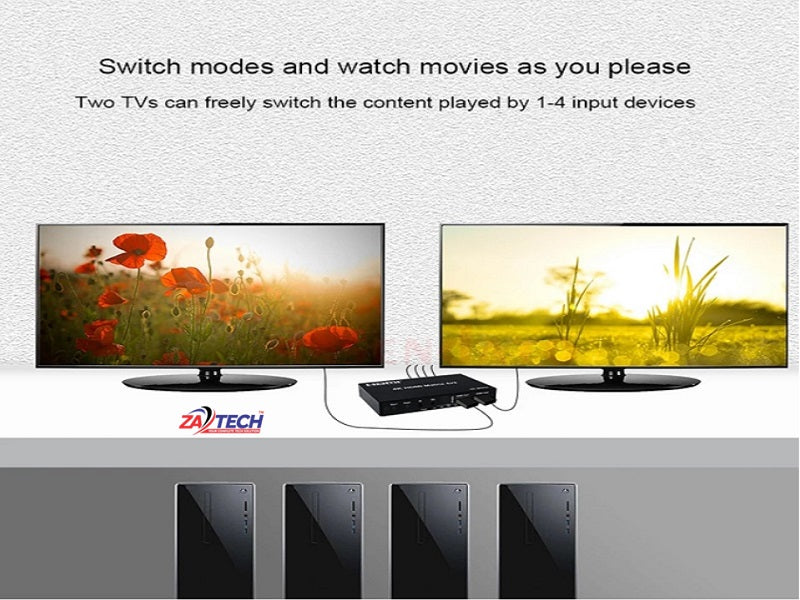

• The Matrix allows four HDMI devices to be easily switched or separated into 2 HDMI
• Supported monitor or projector
• Our equipment offers solutions for Noise, Space and Security concerns, Data Center
• Control, Data Distribution, Conference Room Presentations, School and corporate
• training environments.
• feature
• Via HDMI OUT1, supports 3.5mm headphone jack and optical output at the same time;
• 4 HDMI input switch and 2 separate HDMI displays;
• Input cable distance: 4K/30Hz ≤ 15M AWG26 standard HDMI cable
• Power adapter format: Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1.5A

Specifications

• Support 3D video format;
• Support LPCM/Dolby/DTS 5.1 channels
• HDMI resolution: up to 3840*2160/60Hz
• Support video format: 8/10/12 bit
• Support audio format: LPCM/DTS/Dolby-AC3
• Maximum bandwidth: 600MHz
• Maximum data rate: 3x6Gbps
• 4K/60Hz ≤ 5M HDMI 2.0 standard
• Output cable: 4K/30Hz ≤ 15M AWG26 standard HDMI cable
• MAX working current: 900mA
