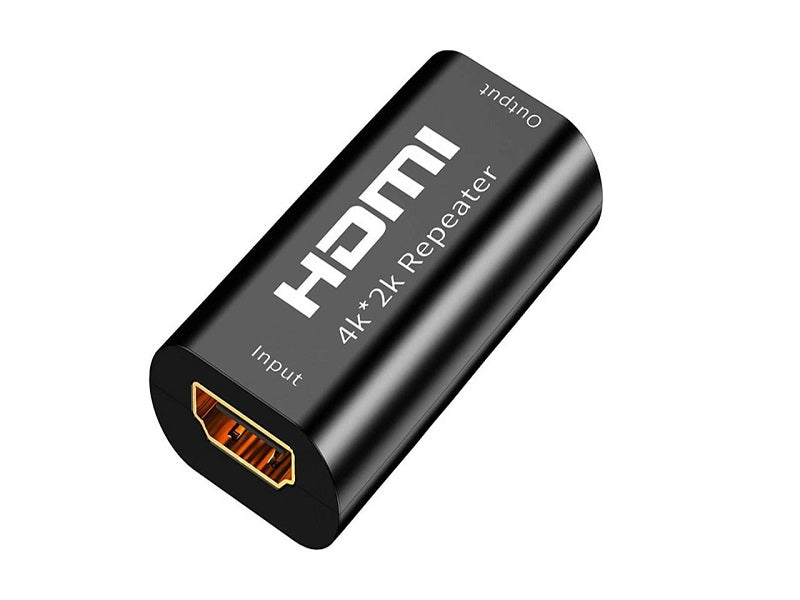

ZATECH Hdmi Repeater

Many people have upset with having to stay together watching TV for the signal line is too short or the house is too big. This 40m HDMI Repeater solves this problem. Now, with the HDMI repeater people can watch TV in their room freely, due to the HDMI repeater extender can extends the length of HDMI cable up to 40m by regenerating the HDMI signal before it sends the outputs to the HDMI monitor or projector. Extends 4096 x 2160P up to 40 meters transmission distance.

Key features

• No power, plug and play, easy to install
• Input / output resolution up to 1080P / 50Hz, 2160P / 24Hz
• Regenerate the incoming HDMI signal by decoding and re-encoding it to a new standard HDMI signal, so it can extend the transmission range without degradation

Specifications

• 4K*2K repeater
• 4K X 2K HDMI Repeater
• Support HDMI 1.4b
• Support 3D , 4K x 2K
• Compliant with HDCP 1.4
• Operation frequency: Up to 340Mhz
• HDMI data rate: 3.4Gbps (Single link)
• Input Video Signal: HDMI Signal
• HDMI Input/Output Connector: HDMI Cable
• Output Video: HDMI 1.4
• Vertical Frequency Range: 50 / 60Hz
• Video Amplifier Bandwidth: 2.25Gbps / 225MHz
• Interlaced Resolutions(50 60Hz): 480i,1080i,
• Progressive Resolutions(50 60Hz): 480p,576p,720p,1080p
• Operating Temperature: 0 to +70degrees
• Operating Humidity: 10 - 80percent RH (no condensation)
• Storage Temperature: -10 to - 80degrees
• Storage Humidity: 5 - 90percent RH (no condensation)
• External Power Supply: HDMI Cable
• Power Consumption: 3W
• Converter Unit: FCC,CE.ROHS
