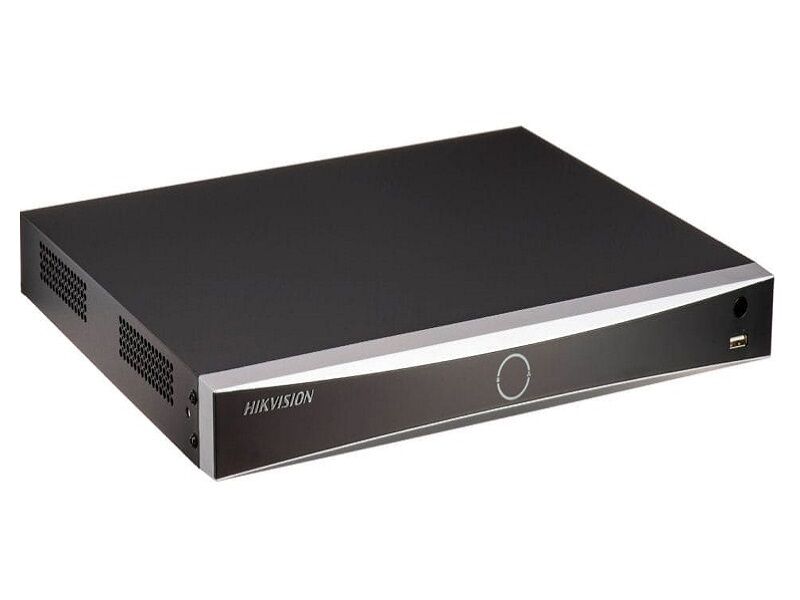

HIKVISION 16Ch 4K Nvr 160Mbps No Poe

Description

16-ch 1U K Series AcuSense 4K NVR
Up to 16-ch IP camera inputs
H.265+/H.265/H.264+/H.264 video formats
Up to 2-ch@12 MP or 3-ch@8 MP or 6-ch@4 MP or 12-ch@1080p decoding capacity
Up to 160 Mbps incoming bandwidth
Adopt Hikvision Acusense technology to minimize manual effort and security costs

Intelligent Analytics
AI by Device
Facial recognition, perimeter protection, motion detection 2.0
AI by Camera
Facial recognition, perimeter protection, throwing objects from building, motion detection2.0, ANPR, VCA
Facial Recognition
Facial Detection and Analytics
Face picture comparison, human face capture, face picture search
Face Picture Library
Up to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ≤ 4 MB, total capacity ≤ 1 GB)
Facial Detection and Analytics Performance
1-ch, 8 MP
Face Picture Comparison
4-ch
Motion Detection 2.0
By Device
All channels, 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarm
By Camera
All channels
Perimeter Protection
By Device
2-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm
By Camera
All channels
Video and Audio
IP Video Input
16-ch
Incoming Bandwidth
160 Mbps
Outgoing Bandwidth
160 Mbps
HDMI Output
1-ch, 4K (3840 `d7 2160)/30 Hz, 2K (2560 `d7 1440)/60 Hz, 1920 `d7 1080/60 Hz, 1600 `d7 1200/60 Hz, 1280 `d7 1024/60 Hz, 1280 `d7 720/60 Hz, 1024 `d7 768/60 Hz
VGA Output
1-ch, 1920 `d7 1080/60 Hz, 1280 `d7 1024/60 Hz, 1280 `d7 720/60 Hz
Video Output Mode
HDMI/VGA independent output
CVBS Output
N/A
Audio Output
1-ch, RCA (2.0 Vp-p, 1 K`d9, using the audio input)
Two-Way Audio
1-ch, RCA (Linear, 1 K`d9)
Decoding
Decoding Format
H.265/H.265+/H.264+/H.264
Recording Resolution
12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous playback
16-ch
Decoding Capability
AI on: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps)

AI off: 2-ch@12 MP (30 fps)/3-ch@8 MP (30 fps)/6-ch@4 MP (30 fps)/12-ch@1080p (30 fps)

Stream Type
Video, Video & Audio
Audio Compression
G.711ulaw/G.711alaw/G.722/G.726/AAC
Network
Remote Connection
128
API
ONVIF (profile S/G); SDK; ISAPI
Compatible Browser
IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
Network Protocol
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP`99, HTTP, HTTPS
Network Interface
1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Auxiliary Interface
SATA
2 SATA interfaces
Capacity
Up to 10 TB capacity for each HDD
USB Interface
Front panel: 1 `d7 USB 2.0; Rear panel: 1 `d7 USB 2.0
Alarm In/Out
4/1
General
GUI Language
English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian
Power Supply
12 VDC, 3.3 A
Consumption
≤ 15 W (without HDD)
Working Temperature
-10 `b0C to 55 `b0C (14 `b0F to 131 `b0F)
Working Humidity
10% to 90%
Dimension (W `d7 D `d7 H)
385 mm `d7 315 mm `d7 52 mm (15.2″`d7 12.4″ `d7 2.0″)
Weight
≤ 1 kg (without HDD, 2.2 lb.)
Certification
FCC
Part 15 Subpart B, ANSI C63.4-2014
CE
EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
Obtained Certification
CE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS

Additional information

Brand

HIKVISION
