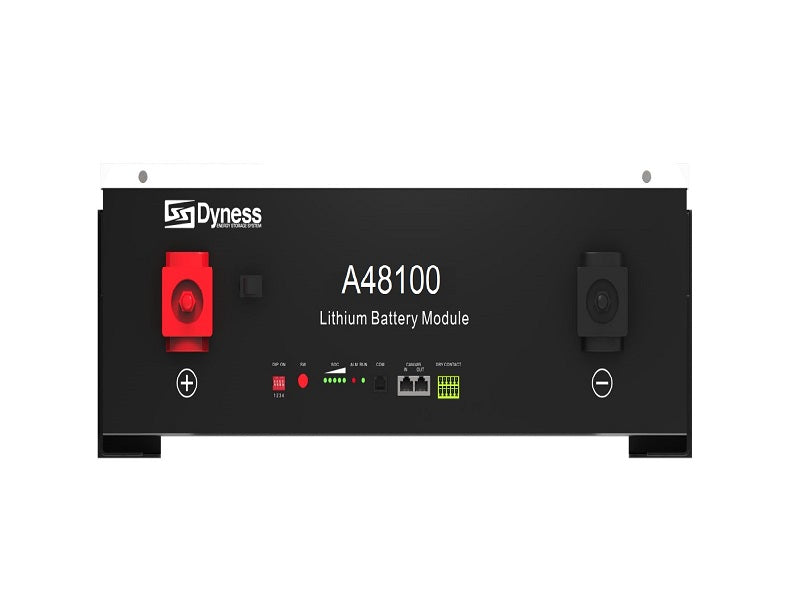

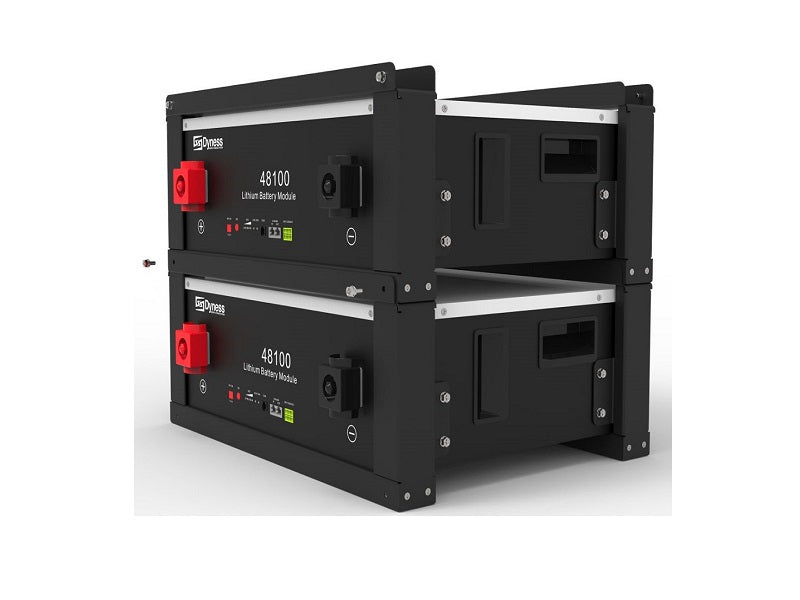

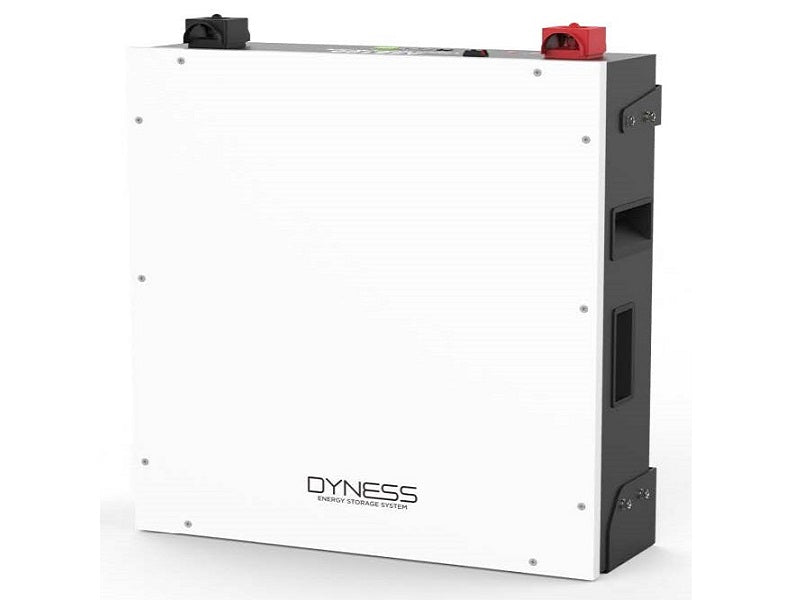

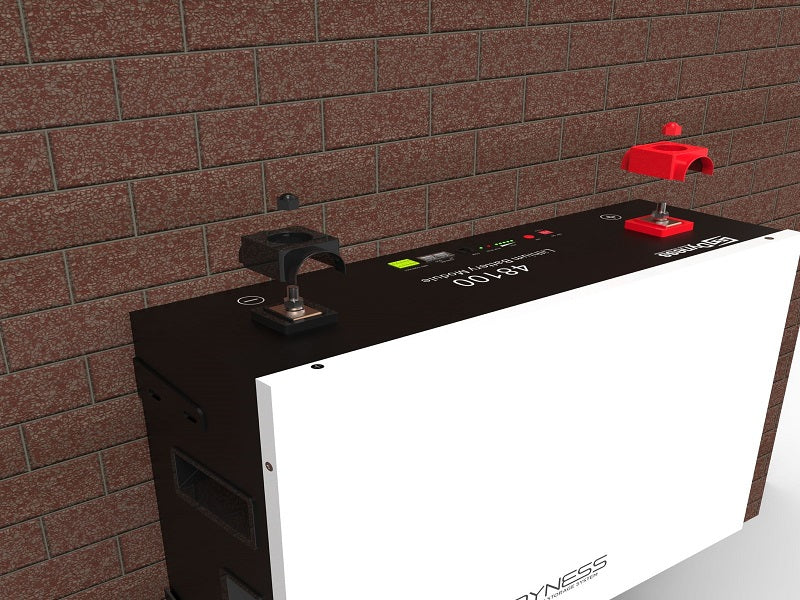

DYNESS A48100 48V Dc 4.8Kwh Lithium Batt
DYNESS A48100 48V Dc 4.8Kwh Lithium Batt
DYNESS
R 18,999
Estimated delivery
2–4 working days
Out of stock
FREE NATIONWIDE DELIVERY
on orders over R 500
on orders over R 500
Quantity
Out of stock
When do I get it?
Estimated delivery times depend on where you are. Your exact date is confirmed at checkout.
| Delivery destination | Delivery time |
|---|---|
| Cape Town, Durban, Johannesburg & Pretoria | 2–4 working days |
| Regional areas | 5–6 working days |
| Remote areas | 3–7 working days |
- Interest Free Payments available
- Hassle Free Returns within 7 days
- 6-month limited warranty
Description
The Dyness A48100 48V Dc 4.8Kwh Lithium Batt is part of the batteries & chargers range. Full specifications are listed below.
Specifications
- Model: A48100
- Cell Technology: Li-ion(LFP)
- Battery Module Capacity: 4.8KWH
- Battery Module Voltage: 48VDC
- Battery Module Capacity: 100AH
- Battery Module Cell Quantity: 15 Cell
- Battery Cell Capacity: 320WH
- Battery Cell Voltage: 3.2VDC
- Battery Cell Capacity: 100AH
- Battery Module Cell Quantity in Series: 15 PCS
- Battery Module Charge Voltage: 54.75VDC
- Battery Parallel Capacity: 40 Units
- Communication: CANBUS / RS485
- Mounting: Wall Mount & Rack Mount
- Battery Charge / Discharge Current
- 50A Recommended
- 75A Maximum
- 100A Peak @ 15S
- Charge Condition: 0`b0C to 55`b0C
- Discharge Condition: -20`b0C to 55`b0C
- Relative Humidity: 5% to 85% (Non Condensing)
- Enclosure Protection: IP20
Frequently Bought Together Frequently bought
Product Information
| Categories | Batteries & Chargers / Dyness |
| Brand | Dyness |
| Model | A48100 |
| Battery Type | Li-ion (LFP) |
| Capacity | 4.8 kWh / 100Ah |
| Voltage | 48VDC |
| Charge Voltage | 54.75VDC |
| Cell Quantity | 15 cells in series |
| Cell Voltage | 3.2VDC |
| Charge Current | 50A recommended, 75A max, 100A peak @ 15s |
| Communication | CANBUS / RS485 |
| Mounting | Wall Mount & Rack Mount |
| Parallel Capacity | 40 Units |
| Operating Temperature | Charge 0 to 55C, Discharge -20 to 55C |
| Enclosure Protection | IP20 |
