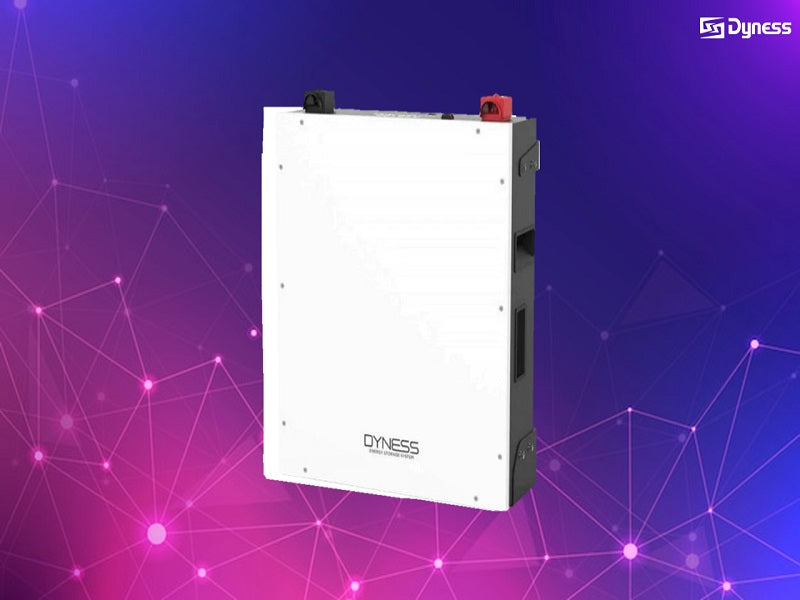

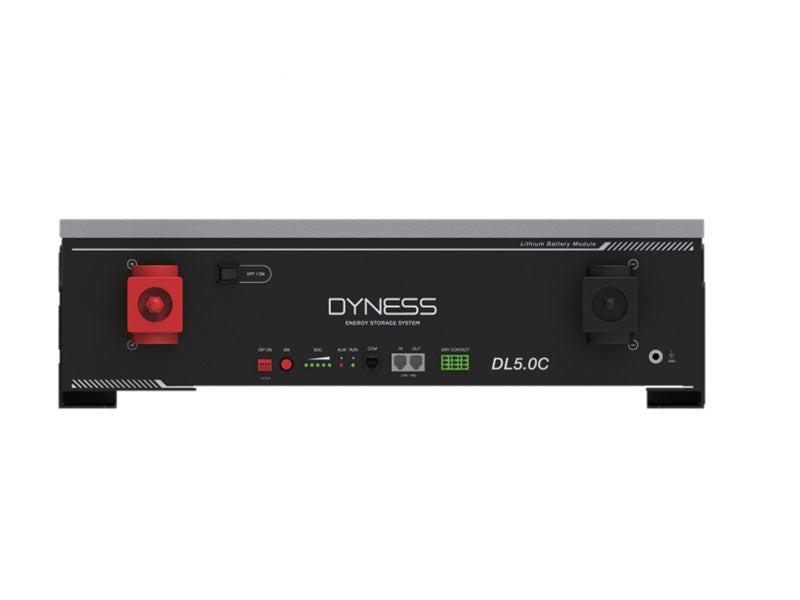

DYNESS Dl5.0C 48V Dc 5.12Kwh Lithium Bat
DYNESS Dl5.0C 48V Dc 5.12Kwh Lithium Bat
DYNESS
R 17,699
Estimated delivery
2–4 working days
Out of stock
FREE NATIONWIDE DELIVERY
on orders over R 500
on orders over R 500
Quantity
Out of stock
When do I get it?
Estimated delivery times depend on where you are. Your exact date is confirmed at checkout.
| Delivery destination | Delivery time |
|---|---|
| Cape Town, Durban, Johannesburg & Pretoria | 2–4 working days |
| Regional areas | 5–6 working days |
| Remote areas | 3–7 working days |
- Interest Free Payments available
- Hassle Free Returns within 7 days
- 6-month limited warranty
Description

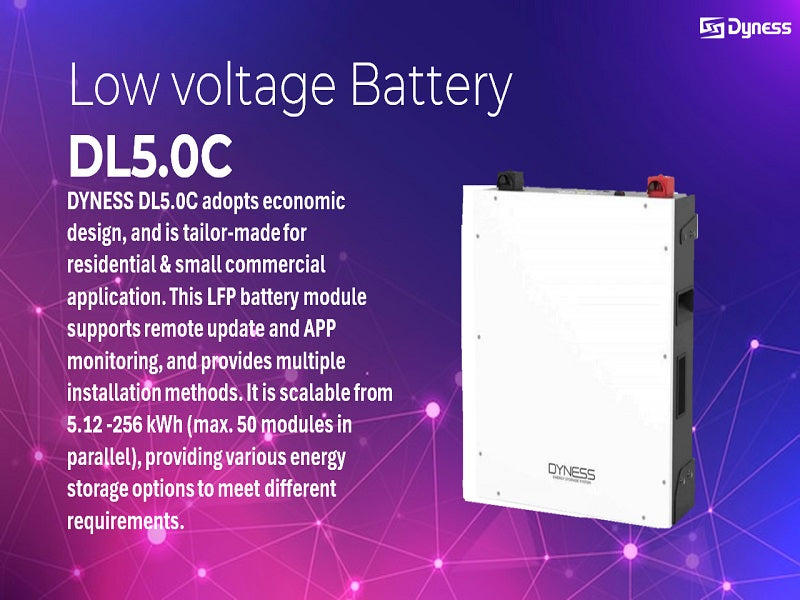

DYNESS DL5.0C adopts economic design, and is tailor-made for residential & small commercial application. This LFP battery module supports remote update and APP monitoring,and provides multiple installation methods. It is scalable from 5.12 -256 kWh (max. 50 modules in parallel), providing various energy storage options to meet different requirements. Pros Can be used in both off-grid and hybrid setups, compact design.
Key features
- Charging Temp. Range 0~55℃
- Discharging Temp. Range -20~55℃
Specifications
- DL5.0C
- Battery Type LiFePO4
- Nominal Battery Energy 5.12 kWh
- Nominal Capacity 100Ah
- Nominal Voltage 51.2V
- Operating Voltage 44.8 ~ 57.6V
- Recomended Charge & Discharge C Rate 0.5C
- Maximum Discharge C rate 1C
- Recommended Charge/Discharge Current 50A
- Max Continous Charge Current 75A
- Max Continous Discharge Current 100A
- Peak Power Charge/Discharge Current 110A (15s)
- Depth of Discharge (DOD) 95%
- Net Weight 54 kg
- Dimension[W*D*H] 558*545*150 mm
- Communication CAN/RS485/RS232
- Cycle Life[1] ≥6000 Cycles
- Protection Level lP20
- Expansion up to 50 units in parallel
Frequently Bought Together Frequently bought
Product Information
| Categories | Batteries & Chargers / Dyness |
| Brand | Dyness |
| Model | DL5.0C |
| Battery Type | LiFePO4 |
| Nominal Energy | 5.12 kWh |
| Nominal Capacity | 100Ah |
| Nominal Voltage | 51.2V |
| Operating Voltage | 44.8 - 57.6V |
| Max Discharge Current | 100A continuous |
| Depth of Discharge | 95% |
| Weight | 54 kg |
| Dimensions | 558 x 545 x 150 mm |
| Communication | CAN/RS485/RS232 |
| Cycle Life | 6000+ cycles |
| Protection Level | IP20 |
| Expansion | Up to 50 units in parallel |
