Hikvision 16Ch Tu…

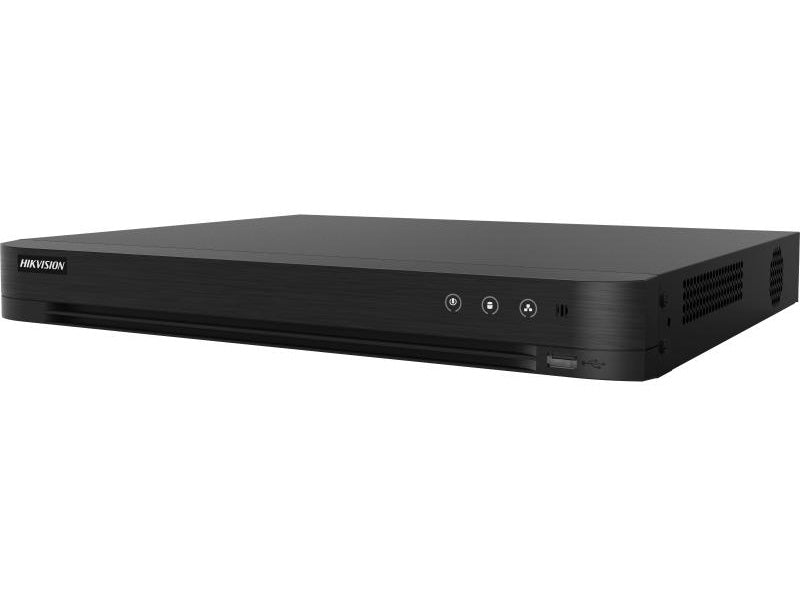

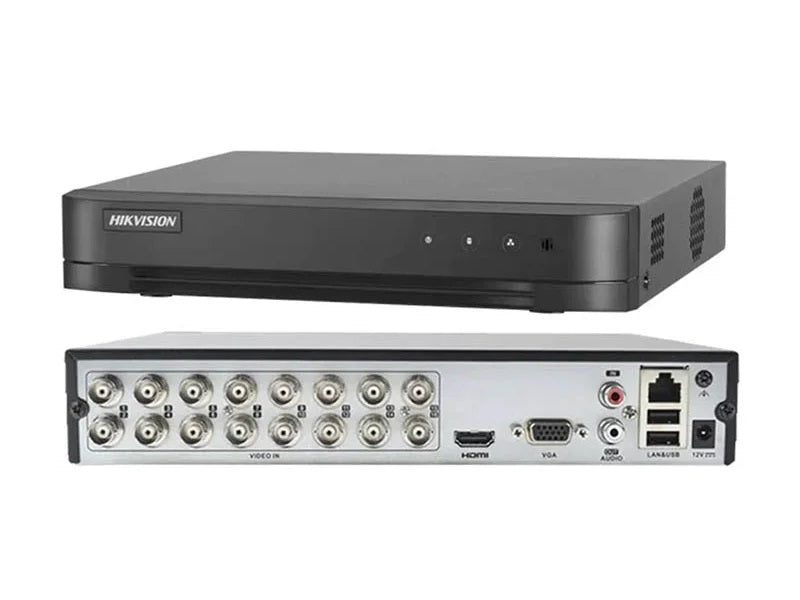

Hikvision 16Ch Turbo Hd Dvr
Hikvision 16Ch Turbo Hd Dvr
Hikvision 16Ch Turbo Hd Dvr

Hikvision 16Ch Turbo Hd Dvr

HIKVISION
R 2,399
Estimated delivery 2–4 working days
In stock
FREE NATIONWIDE DELIVERY
on orders over R 500
Quantity
In stock
  • Interest Free Payments available
  • Hassle Free Returns within 7 days
  • 6-month limited warranty
Price: R 2,399

Description

Deep learning based human and vehicle targets classification of Motion Detection 2.0. Up to 18-ch IP camera inputs (up to 5 MP).

Key features

  • Max. 1200 m for 720p HDTVI signal
  • BNC interface (1.0 Vp-p, 75 `d9), supporting coaxitron connection
  • CVBS InputPAL/NTSC
  • HDMI Output1-ch, 1920 `d7 1080/60Hz, 1280 `d7 1024/60Hz, 1280 `d7 720/60Hz, 1024 `d7 768/60Hz
  • VGA Output1-ch, 1920 `d7 1080/60Hz, 1280 `d7 1024/60Hz, 1280 `d7 720/60Hz, 1024 `d7 768/60Hz
  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 K'd9) (using the first audio input)
  • Recording
  • Frame Rate
  • For 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA@15fps; CIF@25fps (P)/30fps (N)
  • For standard definition stream access: WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
  • For standard definition stream access: CIF/QVGA@25fps (P)/30fps (N)
  • Dual-streamSupport
  • Stream TypeVideo, Video & Audio
  • Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, UPnP™, HTTPS, ONVIF
  • CapacityUp to 6 TB capacity for each disk
  • Working Temperature-10 `b0C to 55 `b0C (14 `b0F to 131 `b0F)
  • Dimension (W `d7 D `d7 H)263 `d7 220 `d7 48 mm (10.3 `d7 8.7 `d7 1.9 inch)

Specifications

  • 16-ch 720p 1U H.265 DVR
  • H.265 Pro+/H.265 Pro/H.265 video compression
  • Up to 1080p Lite@15 fps encoding capability
  • 2-ch (up to 18-ch)
  • Up to 5 MP resolution
  • Support H.265+/H.265/H.264+/H.264 IP cameras
  • 16-ch
  • HDTVI Input1080p25, 1080p30, 720p25, 720p30
  • AHD Input1080p25, 1080p30, 720p25, 720p30
  • HDCVI Input1080p25, 1080p30, 720p25, 720p30
  • Audio Input1-ch, RCA (2.0 Vp-p, 1 K'd9)
  • Audio Output1-ch, RCA (Linear, 1 K'd9)
  • Synchronous Playback 16-ch
  • Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Encoding Resolution1080p lite/720p/VGA/WD1/4CIF/CIF
  • For 720p stream access: 720p/WD1/4CIF/VGA@15fps; CIF@25fps (P)/30fps (N)
  • For 1080p and 720p stream access: CIF/QVGA@15fps
  • Video Bitrate32 Kbps to 4 Mbps
  • Audio CompressionG.711u
  • Audio Bitrate64 Kbps
  • Remote Connection128
  • Network Interface1, RJ45 10M/100M self-adaptive Ethernet interface
  • SATA1, SATA interface
  • USB InterfaceRear panel: 2 `d7 USB 2.0
  • Power Supply12 VDC, 2 A
  • Consumption≤ 18 W
  • Working Humidity10% to 90%
  • ≤ 2.2 kg (4.9 lb)

Frequently Bought Together Frequently bought

Product Information

Categories Hikvision / Hikvision DVRs / Security & Surveillance
Brand Hikvision
Channels 16-ch 720p 1U H.265 DVR
Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Video Input HDTVI/AHD/CVI/CVBS/IP
IP Camera Inputs Up to 18-ch, up to 5 MP
HDMI Output 1-ch, up to 1920x1080/60Hz
VGA Output 1-ch, up to 1920x1080/60Hz
Storage 1 SATA, up to 6 TB per disk
Network Interface 1 RJ45 10M/100M self-adaptive
USB 2 x USB 2.0
Power Supply 12 VDC, 2 A
Consumption ≤ 18 W
Dimensions 263 x 220 x 48 mm
Weight ≤ 2.2 kg
Barcode 6942160446608
