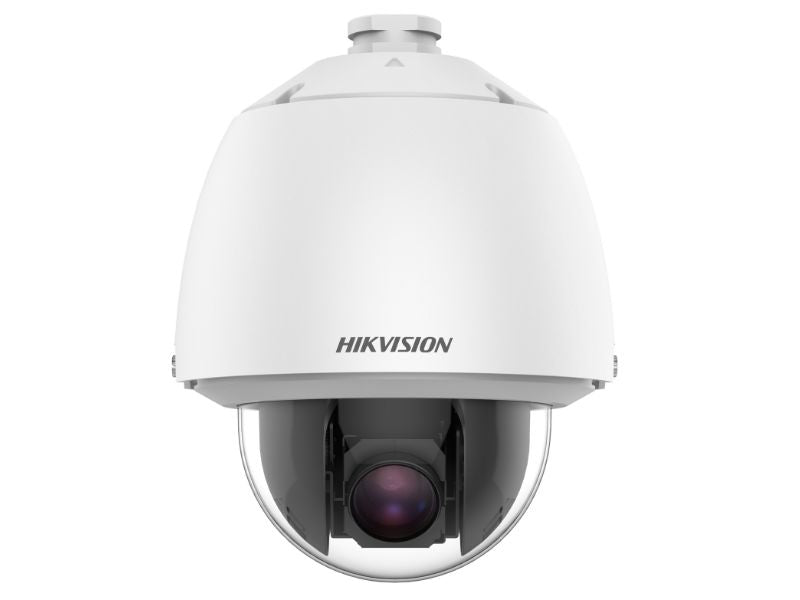

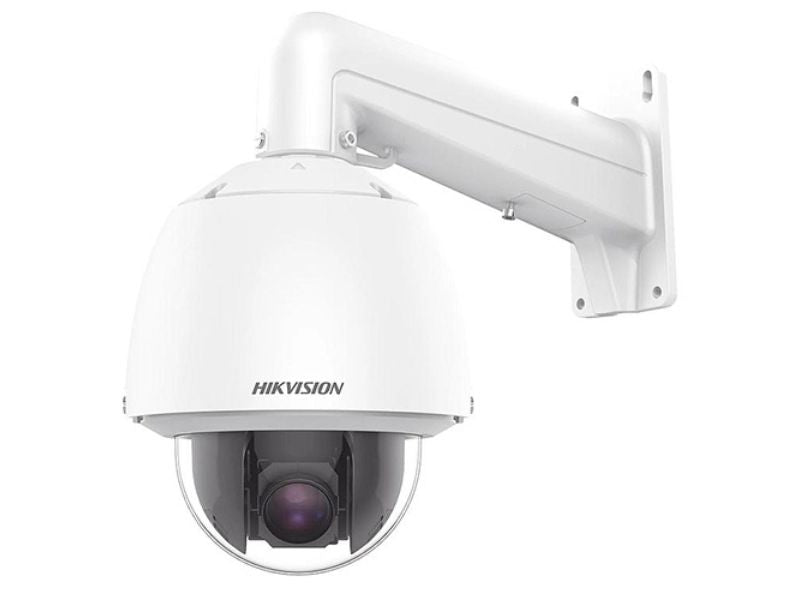

HIKVISION 2Mp 25X Ip Ptz Speed Dome

25`d7 optical zoom and 16`d7 digital zoom provide close up views over expansive areas. WDR, HLC, BLC, 3D DNR, defog, regional exposure, regional focus.

Key features

• 2 MP 25X Powered by DarkFighter Network Speed Dome
• Excellent low-light performance with powered-by-DarkFighter technology
• Water and dust resistant (IP66) and vandal resistant (IK10)
• Image Sensor
• Max. Resolution
• Min. Illumination
• Color: 0.005 Lux @ (F1.6, AGC ON); B/W: 0.001 Lux @ (F1.6, AGC ON)
• Shutter Speed
• Day & Night
• IR cut filter
• Zoom
• Slow Shutter
• Yes
• Focal Length
• FOV
• Focus
• Auto, semi-auto, manual
• Max. F1.6
• Zoom Speed
• Approx. 3.6 s
• PTZ
• Movement Range (Pan)
• Movement Range (Tilt)
• Pan Speed
• Pan speed: configurable from 0.1`b0 to 250`b0/s; preset speed: 300`b0/s
• Tilt Speed
• Tilt speed: configurable from 0.1`b0 to 150`b0/s, preset speed 200`b0/s
• Proportional Pan
• Presets
• Preset Freezing
• Patrol Scan
• 8 patrols, up to 32 presets for each patrol
• Pattern Scan
• Park Action
• Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
• Scheduled Task
• Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
• Main Stream
• 50 Hz: 25 fps (1920 `d7 1080, 1280 `d7 960, 1280 `d7 720)
• 60 Hz: 30 fps (1920 `d7 1080, 1280 `d7 960, 1280 `d7 720)
• Sub-Stream
• 50 Hz: 25 fps (704 `d7 576, 640 `d7 480, 352 `d7 288)
• 60 Hz: 30 fps (704 `d7 480, 640 `d7 480, 352 `d7 240)
• Third Stream
• 50 Hz: 25 fps (1920 `d7 1080, 1280 `d7 960, 1280 `d7 720, 704 `d7 576, 640 `d7 480, 352 `d7 288)
• 60 Hz: 30 fps (1920 `d7 1080, 1280 `d7 960, 1280 `d7 720, 704 `d7 480, 640 `d7 480, 352 `d7 240)
• Baseline profile/Main profile/High profile
• Main profile
• Scalable Video Coding (SVC)
• Region of Interest (ROI)
• 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)
• Protocols
• Ipv4/ipv6, http, https, 802.1x, qos, FTP, smtp, upnp, snmp, DNS, ddns, NTP, rtsp, rtcp, RTP, tcp/ip, UDP, igmp, icmp, dhcp, pppoe, bonjour
• Simultaneous Live View
• API
• Open Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
• User/Host
• Up to 32 users; 3 user levels: administrator, operator, and user
• Security
• Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
• NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• Client
• Web Browser
• Image
• Image Parameters Switch
• Image Settings
• Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
• Day/Night Switch
• Day, Night, Auto, Schedule
• Wide Dynamic Range (WDR)
• SNR
• Defog
• Digital Defog
• Image Enhancement
• Privacy Mask
• 24 programmable polygon privacy masks, mask color or mosaic configurable
• Regional Focus
• Regional Exposure
• Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
• 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 K'd9 `b1 10%;
• 1 output (line out), line level, output impedance: 600 `d9
• Alarm
• Reset
• Event
• Basic Event
• Motion detection, video tampering alarm, exception, alarm input and output
• Smart Event
• line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
• Linkage
• Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)
• Deep Learning Function
• Face Capture
• 24 VAC, Max. 20 W; PoE (802.3at)
• `d8 220 mm `d7 280 mm (`d8 8.66" `d7 11.02")
• Approx. 3.0 kg (6.61 lb.)
• Metal
• 30 `b0C to 65 `b0C (-22 `b0F to 149 `b0F). Humidity 90% or less (non-condensing)
• Approval
• EMC
• FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7); KC (KN 32: 2015, KN 35: 2015)
• Safety
• UL (UL 62368-1); CB (IEC 62368-1:2014+A11); ce-lvd (EN 62368-1:2014/A11:2017); BIS (IS 13252(part 1):2010/IEC 60950-1: 2005); LOA (iec/en 60950-1)
• CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
• Protection
• IP66 (IEC 60529-2013), IK10 (IEC 62262:2002), TVS 6000V lightning protection, surge protection and voltage transient protection

Specifications

• Ds-2de5225w-ae(t5)
• 1/2.8" Progressive Scan CMOS
• High quality imaging with 2 MP resolution
• 24 VAC & PoE (802.3at)
• Efficient H.265+/H.265 compression technology
• 1/2.8″ Progressive Scan CMOS
• 1920 `d7 1080
• 1 s to 1/30,000 s
• 25x optional, 16x digital
• Lens
• 4.8 mm to 120 mm
• Horizontal field of view: 57.6`b0 to 2.5`b0 (wide-tele),
• Vertical field of view: 34.4`b0 to 1.4`b0 (wide-tele),
• Diagonal field of view: 64.5`b0 to 2.9`b0 (wide-tele)
• Aperture
• 360`b0
• 5`b0 to 90`b0 (auto flip)
• 300
• 4 pattern scans
• 3D Positioning
• Main stream: H.265+/H.265/H.264+/H.264
• Sub-stream: H.265/H.264/MJPEG
• Third stream: H.265/H.264/MJPEG
• 32 Kbps to 16 Mbps
• H.264 Type
• H.265 Type
• H.264 and H.265 encoding
• 8 fixed regions for each stream
• G.711/g.722.1/g.726/mp2l2/pcm
• 8 kHz/16 kHz/32 kHz/48 kHz
• Up to 20 channels
• iVMS-4200, HikCentral Pro, Hik-Connect
• IE11, Chrome57+, Firefox52+, Safari11+
• 120 dB
• `a3`be52 dB
• BLC, HLC, 3D DNR
• 1 RJ45 10M/100M self-adaptive Ethernet port
• 2 inputs, 1 output
• Material
