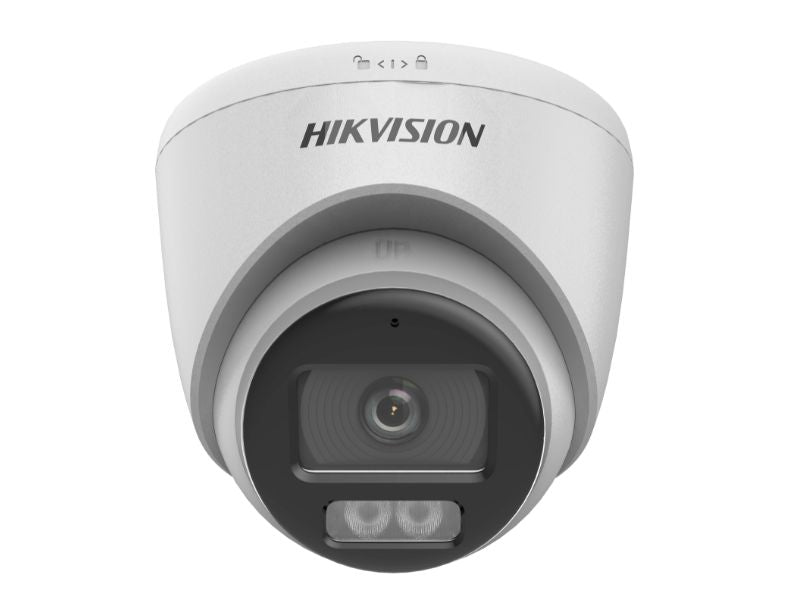

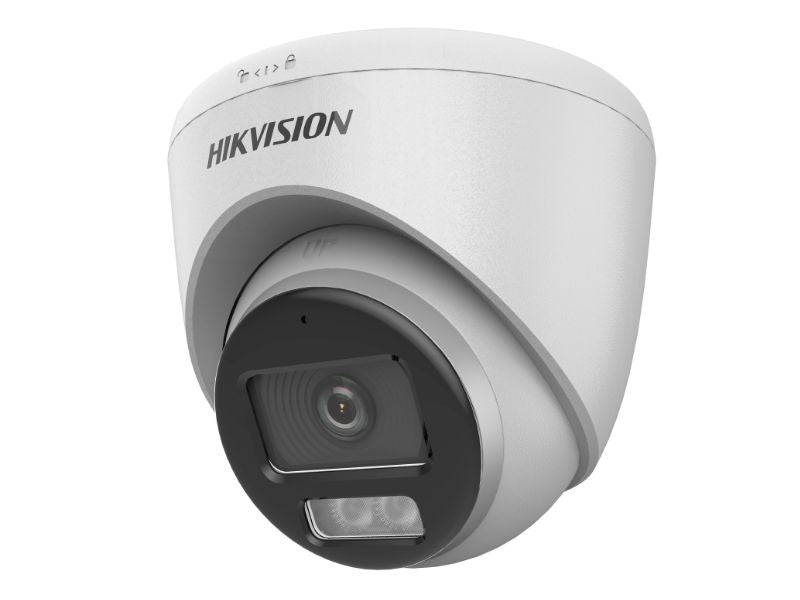

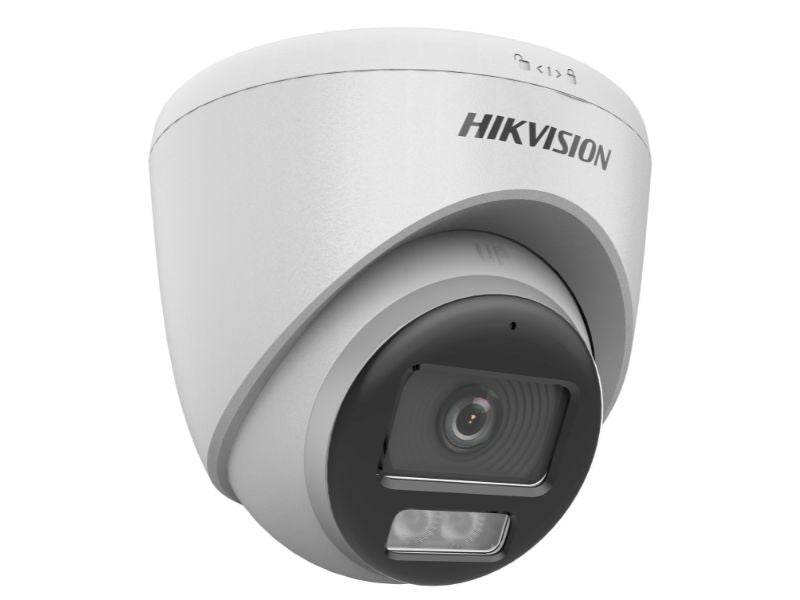

2 MP Smart Hybrid Light with ColorVu Fixed Turret Camera. High quality imaging with 2 MP, 1920 × 1080 resolution.
Key features
- Smart-Hybrid light, optimize your security with flexible lighting options
- 3D DNR technology delivers clean and sharp images
- Up to 40 m white light distance for bright night imaging
- Up to 40 m IR distance for bright night imaging
- High quality audio with audio over coaxial cable, built-in mic
- One port for four switchable signals (TVI/AHD/CVI/CVBS)
- Image Sensor
- Max. Resolution
- Min. Illumination
- 0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
- Shutter Time
- PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
- Day & Night
- ICR
- Angle Adjustment
- Pan: 0° to 360°,Tilt: 0° to 75°,Rotate: 0° to 360°
- Pal/ntsc
- 2.8 mm and 3.6 mm fixed focal lens
- Focal Length & FOV
- 2.8 mm, horizontal FOV: 105°, vertical FOV: 56°, diagonal FOV: 126°
- 3.6 mm, horizontal FOV: 84°, vertical FOV: 46°, diagonal FOV: 98°
- Microphone
- Pickup Distance
- In a radius of up to 5 m
- Amount
- Illuminator
- Supplement Light Type
- Smart, IR, White Light
- Supplement Light Range
- IR: Up to 40 m,White Light: Up to 40 m
- Image
- Image Parameters Switch
- Std/high-sat/highlight
- Image Settings
- Frame Rate
- Day/Night Mode
- Auto/Color
- Wide Dynamic Range (WDR)
- Digital WDR
- Noise Reduction
- Image Enhancement
- Dwdr,
- BLC,
- HLC,
- Global
- White Balance
- Auto, Manual
- Switchable TVI/AHD/CVI/CVBS
- 12 VDC ± 25%, max. 4.2 W,*You are recommended to use one power adapter to supply the power for one camera.
- Ø110 mm × 98.3 mm (4.33" × 3.87")
- Approx. 320 g (0.71 lb.)
- 40 °C to 60 °C (-40 °F to 140 °F). Humidity 90% or less (non-condensing)
- Communication
- Hikvision-c
- Language
- English
- Approval
- Protection
Specifications
- Ds-2ce72df0t-lfs2.8mm
- 24/7 color imaging with F1.0 aperture
- 2.8 mm, 3.6 mm fixed focal lens
- Water and dust resistant (IP67)
- 2 MP cmos
- 1920 (H) × 1080 (V)
- Lens
- Lens Type
- Lens Mount
- M12
- 1
- Brightness, Sharpness, Anti-banding, AGC
- TVI: 1080p @25 fps/30 fps
- CVI: 1080p @25 fps/30 fps
- AHD: 1080p @25 fps/30 fps
- Cvbs: pal/ntsc
- 3D dnr/2d DNR
- Material
- Enclosure: Plastic, Main body: Metal
- IP67
