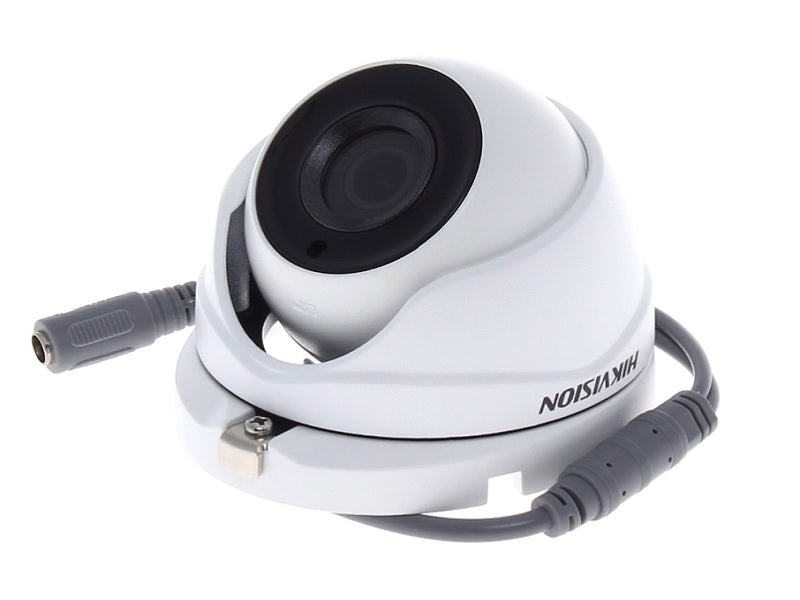

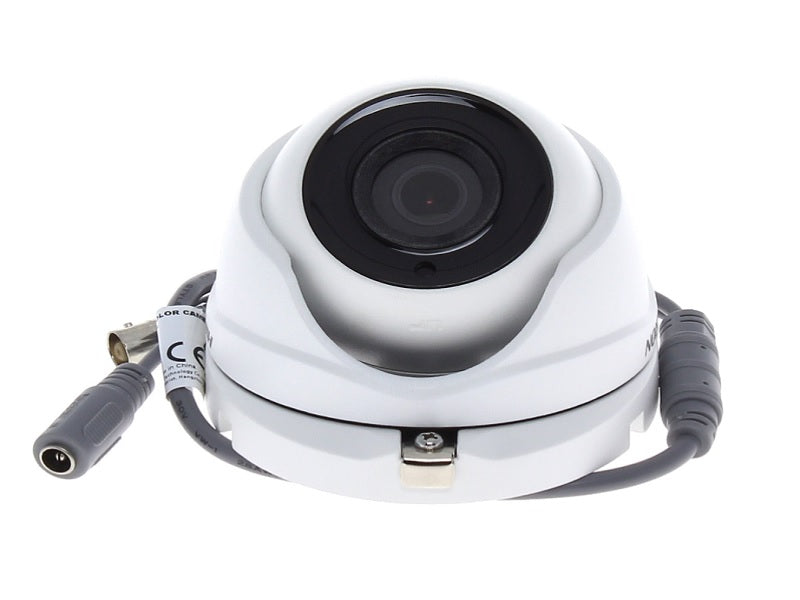

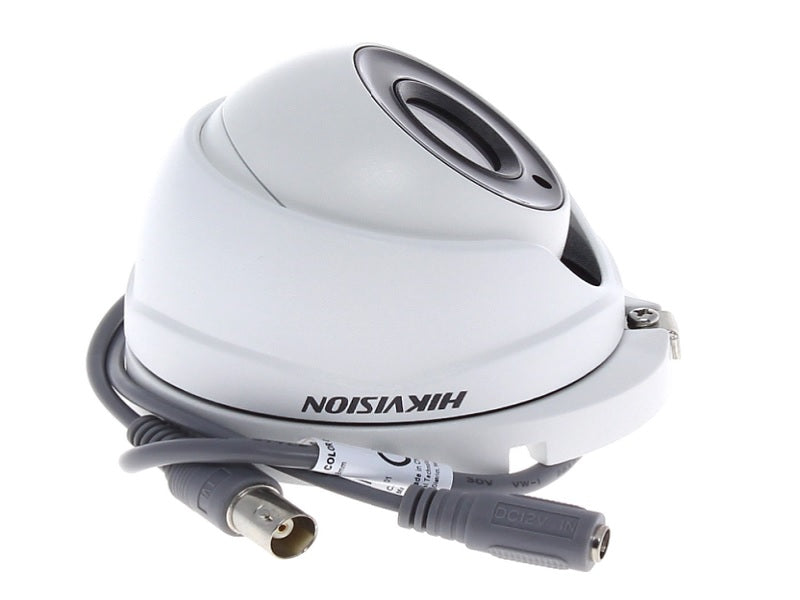

Hikvision 2Mp Dome Metal

EXIR 2.0: advanced infrared technology with 20 m IR distance. Transmits both HD video and power over the same coaxial cable.

Key features

• Min. Illumination: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter Time: PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
• Angle Adjustment: Pan: 0`b0 to 360`b0, Tilt: 0`b0 to 75`b0, Rotate: 0`b0 to 360`b0
• Lens Type: 2.8 mm, 3.6 mm, 6 mm fixed lens
• Focal Length & FOV: 103.55`b0 (2.8 mm), 82.63`b0 (3.6 mm), 54.38`b0 (6 mm)
• Image
• Dimension: 91 mm `d7 82.6 mm `d7 68.3 mm (3.58" `d7 3.25" `d7 2.69")
• Approx. 253 g (0.56 lb.)
• Operating Condition: ‘-40 `b0C to 60 `b0C (-40 `b0F to 140 `b0F), humidity: 90% or less (non-condensation)
• Communication: Up the coax, Protocol: HIKVISION-C (TVI output)
• Approval
• What’s in the box?

Specifications

• Ds-2ce56dot-itme28
• 2 MP PoC Fixed Turret Camera
• 2 MP turret camera
• Water and dust resistant (IP67)
• Image Sensor: 2.0-megapixel progressive scan CMOS
• Max. Resolution: 1920 (H) `d7 1080 (V)
• Day & Night: IR cut filter
• Signal System: PAL/NTSC
• Lens
• Lens Mount: M12
• Image Settings: Brightness, Sharpness, DNR, Mirror
• Frame Rate: PAL: 1080p@25fps NTSC: 1080p@30fps
• Day/Night Mode: Smart/color/BW(Black and White)
• Wide Dynamic Range (WDR): Digital WDR
• White Balance: Auto/Manual
• AGC: Low/middle/high
• Video Output: 1 HD analog output
• Material: Metal
• Language: English
• ` Power Supply: 12 VDC `b1 25%/PoC.af
• `Consumption: Max. 3 W
• `IR Range: Up to 20 m
• `Protection: IP67
• 1 x Camera
• 1 x Packet of nuts and screws
• 1 x Manual
• 1 x Drill template
