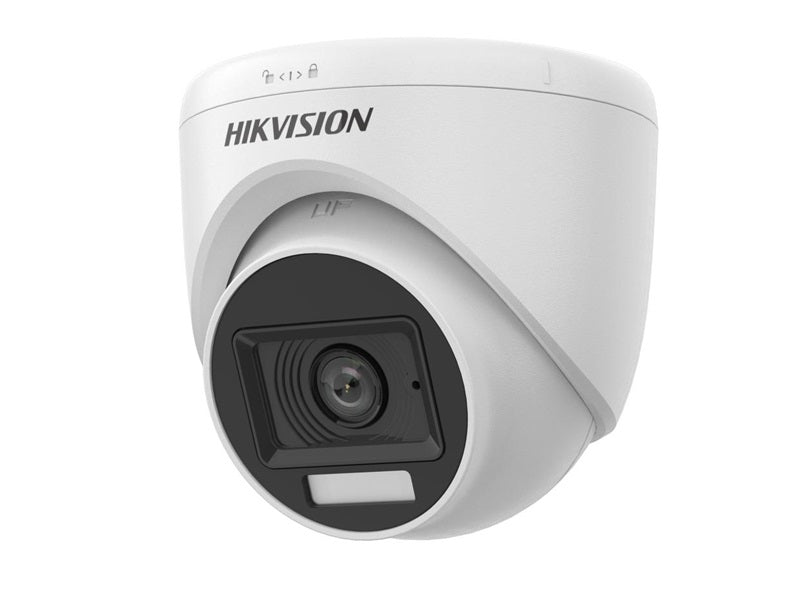

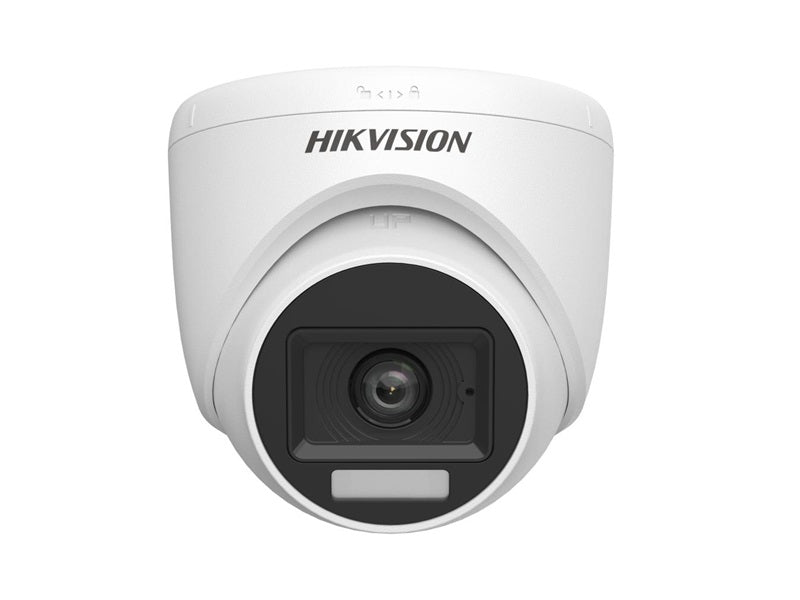

Hikvision 3K Exir Dome Camera 3.6Mm

Up to 20 m IR distance for bright night imaging. Up to 20 m white light distance for bright night imaging.

Key features

• Built IN MIC / dual light
• 3K Smart Hybrid Light Audio Indoor Fixed Turret Camera
• High quality imaging with 3K, 2960 `d7 1665 resolution
• 2.8 mm and 3.6 mm fixed focal lens
• High quality audio with audio over coaxial cable, built-in mic
• Smart-Hybrid light, optimize your security with flexible lighting options
• Image Sensor
• Max. Resolution
• Min. Illumination
• 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
• Shutter Time
• PAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s
• Day & Night
• ICR
• Angle Adjustment
• Pan: 0 to 360`b0, Tilt: 0 to 75`b0, Rotation: 0 to 360`b0
• Pal/ntsc
• Focal Length & FOV
• 2.8 mm, horizontal FOV: 104.9`b0, vertical FOV: 67.3`b0, diagonal FOV: 129.8`b0
• 3.6 mm, horizontal FOV: 81.3`b0, vertical FOV: 50.7`b0, diagonal FOV: 102.4`b0
• Illuminator
• Supplement Light Type
• White Light;IR
• Supplement Light Range
• Image
• Image Settings
• Frame Rate
• TVI: 3K@20 fps, 4 MP@25 fps/30 fps, 1080p@25 fps/30 fps
• AHD: 5 MP@20 fps, 4 MP@25 fps/30 fps
• Day/Night Mode
• Auto/Color/BW (Black and White)
• Wide Dynamic Range (WDR)
• Digital WDR
• Image Enhancement
• DWDR/BLC/HLC/Global
• White Balance
• Auto/Manual
• AGC
• Yes
• Switchable TVI/AHD/CVI/CVBS
• Built-In Microphone
• Plastic
• 84.6 mm `d7 `d885.02 mm (3.33" `d7 `d83.35")
• Approx. 160 g (0.35 lb.)
• 40 `b0C to 60 `b0C (-40 `b0F to 140 `b0F), humidity: 90% or less (non-condensation)
• Communication
• Hikvision-c
• Language
• English
• You are recommended to use one power adapter to supply the power for one camera.
• Consumption
• Max. 2.9 W

Specifications

• One port for four switchable signals (TVI/AHD/CVI/CVBS'a3`a9
• 3K cmos
• 2960 (H) `d7 1665 (V)
• Lens
• Lens Type
• Lens Mount
• M12
• IR : Up to 20 m
• White Light : Up to 20 m
• Brightness, Sharpness, Smart IR
• CVI: 4 MP@25 fps/30 fps
• Cvbs: pal/ntsc
• Material
• 12 VDC `b1 25%
