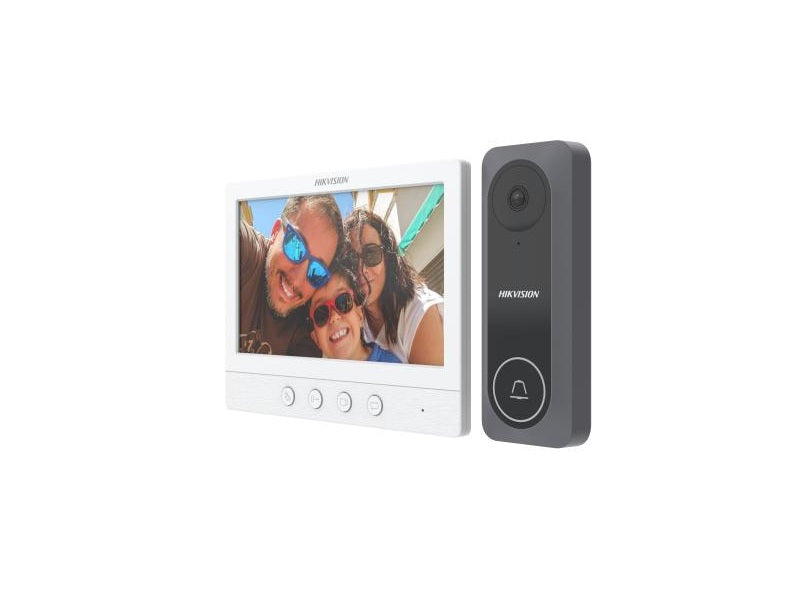

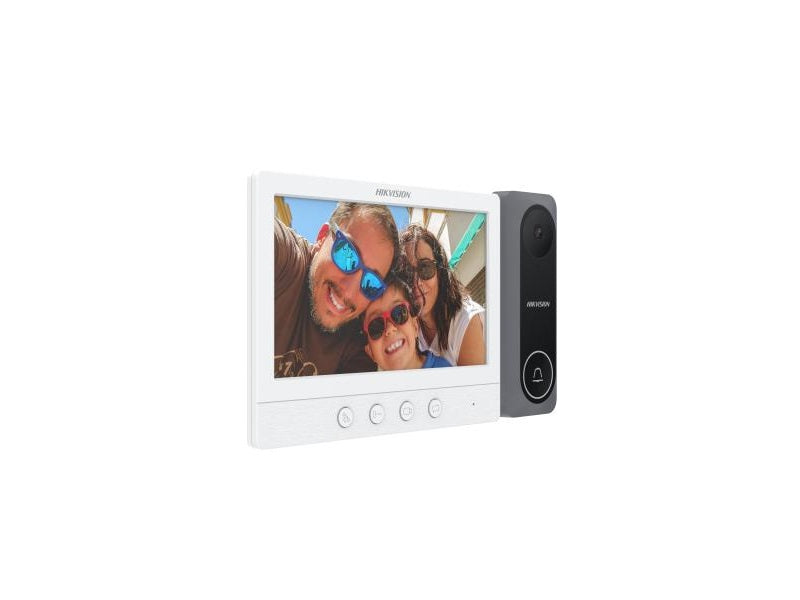

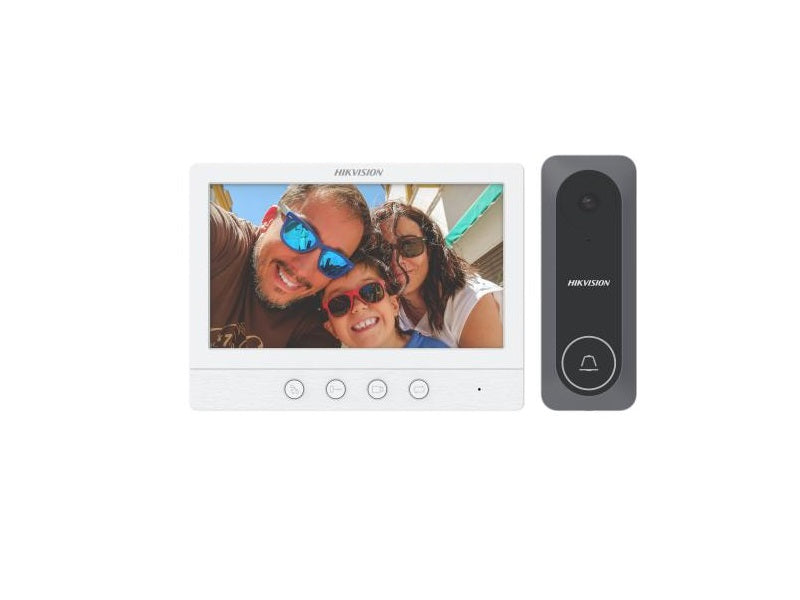

HIKVISION 4-Wire HD Video Intercom Kit
HIKVISION 4-Wire HD Video Intercom Kit
HIKVISION
R 1,899
Estimated delivery
2–4 working days
In stock
FREE NATIONWIDE DELIVERY
on orders over R 500
on orders over R 500
Quantity
In stock
When do I get it?
Estimated delivery times depend on where you are. Your exact date is confirmed at checkout.
| Delivery destination | Delivery time |
|---|---|
| Cape Town, Durban, Johannesburg & Pretoria | 2–4 working days |
| Regional areas | 5–6 working days |
| Remote areas | 3–7 working days |
- Interest Free Payments available
- Hassle Free Returns within 7 days
- 6-month limited warranty
Description
Max 2 door stations and 3 indoor stations in one system. 10`b0 C to + 55`b0 C (14`b0 F to 131`b0 F).
Key features
- HD TVI video quality
- Plug & play
- One-press to call
- One-press to unlock the door
- Door station/Video parameters
- Supplement light
- FOV
- Door station/Audio parameters
- Built-in omnidirectional microphone
- Built-in loudspeaker
- Lock control
- Four-wire
- Door station/General
- Button
- Indicator
- /
- Max. 4W
- Working temperature
- Working humidity
- Indoor
- Installation
- Surface mounting
- Protective level
- Plastic
- Indoor station/Display parameters
- Operation method
- Physical button
- Type
- Indoor station/Audio parameters
- Indoor station/Capacity parameters
- Linked indoor extensions capacity
- Linked doorphone capacity
- 4, 2 for indoor extentions, 2 for doorphones
- DIP switch
- BNC
- Indoor station/General
Specifications
- 4-Wire HD Video Intercom Kit
- IR light, up to 3 m
- Resolution
- Stream resolution: 1280 * 720@60fps
- Horizontal: 130`b0`a3`acVertical: 70`b0
- 1 relay, max 30V 1 A
- 1
- 1 four-wire interface
- 1 physical button(s)
- 12 VDC
- 30`b0 C to + 60`b0 C
- 10% to 90%
- 136mm x 51mm x 20mm
- Material
- 7-inch colorful TFT
- 1024 x 600
- 2
- 12V DC
- 1 Bit
- 4 physical button
- ≤5 W
- Dimensions (W `d7 H `d7 D)
- 178mm x 132mm x 19mm
Frequently Bought Together Frequently bought
Product Information
| Categories | Hikvision / Security & Surveillance |
| Brand | Hikvision |
| Type | 4-Wire HD Video Intercom Kit |
| Resolution | 1280 x 720 @ 60fps |
| Indoor Display | 7-inch TFT, 1024 x 600 |
| Field Of View | Horizontal 130°, Vertical 70° |
| IR Range | Up to 3 m |
| Power Input | 12 VDC |
| Power Consumption | Door 4W max / Indoor ≤5W |
| Lock Control | 1 relay, max 30V 1A |
| Working Temperature | -30°C to +60°C (door) |
| Door Station Dimensions | 136 x 51 x 20 mm |
| Indoor Dimensions | 178 x 132 x 19 mm |
| Material | Plastic |
| Installation | Surface mounting |
| Max System | 2 door stations + 3 indoor stations |
| Barcode | 6942160449883 |
