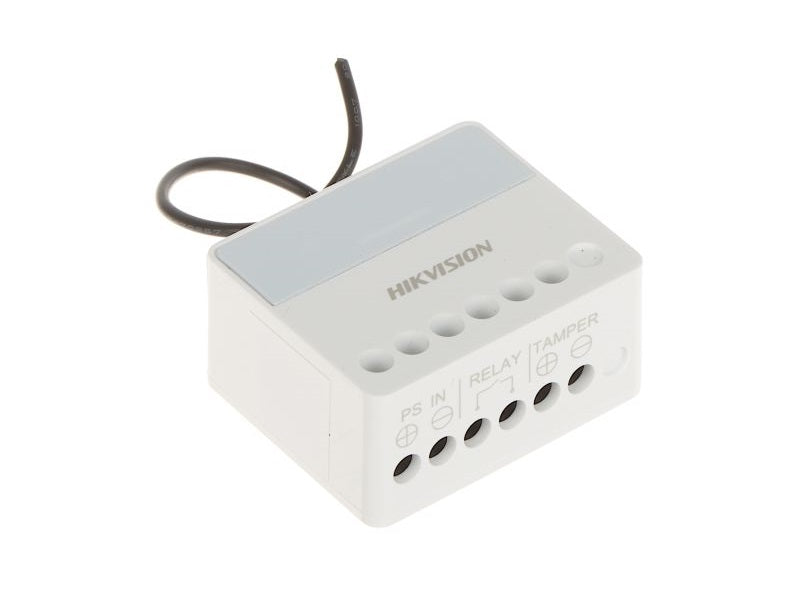

Hikvision AX PRO relay module, front view with screw terminal block
AX PRO relay module at an angle with PS IN, relay and tamper terminals labelled

Hikvision DS-PM1-01L-WE AX PRO Wireless Relay Module - 7-24V DC, 868MHz, AES-128

DS-PM1-01L-WE

HIKVISION
4.6 · 3 Reviews
R 534R 899
Estimated delivery 1–3 working days
In stock
FAST NATIONWIDE DELIVERY
Reliable delivery, every order
Quantity
In stock
  • Interest Free Payments available
  • Hassle Free Returns within 7 days
  • 6-month limited warranty
Flexible payments from only R 89.00 over 2–6 instalments
Price: R 534

Description

LED display, show status of device and replay on/off display. Small case design, which can be put into hiding places easily.

Key features

  • Relay Module
  • Automation operating, one button turn on/off from APP/Keyfob/Keypad
  • Setting scenarios by different events
  • An alarm input for tamper, NO, NC
  • Scenario setting
  • By alarm, by operation, by fault, by schedule, by manual
  • Learning button
  • Electrical characteristics
  • Operation humidity
  • Operation temperature
  • Wireless transmission
  • RF frequency
  • RF method
  • Two-way communication
  • RF modulation
  • RF distance
  • Wireless security
  • LEDs status
  • 3, register/signal (green/red), power (green), relay status (blue)
  • Installation method
  • Wall-Mounting
  • 38 mm `d7 25 mm `d7 18 mm
  • Shell material
  • Plastic
  • White
  • Device management
  • 1, NO/NC (0 to 36V DC, Max 5A)

Specifications

  • Ds-pm1-01l-we
  • 868 MHz two-way wireless communication
  • AES-128 encryption
  • 1, for register
  • 1, for debug
  • DC 7V to 24V
  • 10% to 90%
  • 10`b0C to 55`b0C
  • 868 MHz
  • 2gfsk
  • 1800 m
  • AES-128
  • Dimension(WxHxD)
  • Color
  • 28.5 g
  • 1 for tamper, NO/NC

Frequently Bought Together Frequently bought

Product Information

Categories Hikvision / Hikvision Alarm Systems / Security & Surveillance / Specials
Brand Hikvision
Model DS-PM1-01L-WE
Power Supply DC 7V to 24V
RF Frequency 868 MHz
RF Modulation 2GFSK
RF Distance 1800 m
Wireless Security AES-128
Operating Temperature -10C to 55C
Operating Humidity 10% to 90%
Dimensions 38 x 25 x 18 mm
Material Plastic
Color White
Weight 28.5 g
Relay Output 1, NO/NC (0-36V DC, Max 5A)
Alarm Input 1 (tamper, NO/NC)
Barcode 6941264076957
