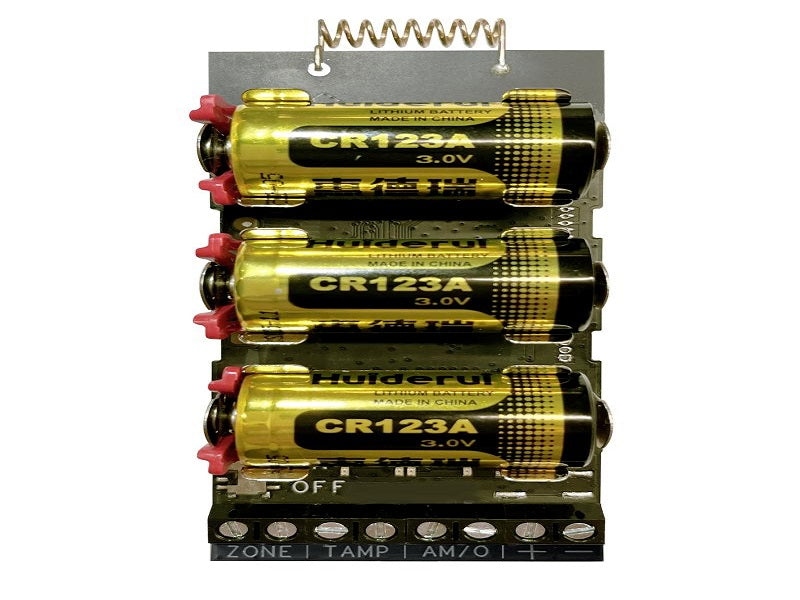

HIKVISION Ax Pro Single Input

Small size design, which can be put into wired detector easily. With one tamper input and one PGM, can be used as zone input or alarm outpout.

Key features

• Transmitter
• Single Input Transmitter
• LED display, show the real status of device
• With 3.3V voltage output, can be used to power up external wired detector
• Detection of device removal by accelerometer
• Electrical characteristics
• Operation humidity
• Operation temperature
• Wireless transmission
• RF frequency
• RF method
• Two-way communication
• RF modulation
• RF distance
• Indicator
• Installation method
• Put inside wireless ready detector
• 102 mm `d7 41 mm `d7 20 mm
• 35 g (without battery), 90 g (with battery)

Specifications

• 868MHz two-way wireless communication
• 1
• 1 Alarm, 1 Tamper
• 1 PGM, AM/Output
• 3.3v Output
• 1, up to 10mA
• 3 CR123
• 10% to 90%
• –10`b0C to 55`b0C
• Quiescent current: 40.29 uA
• Max current: 47.85 mA
• Voltage: 3 VDC
• Battery life span
• Up to 5 years (standby time)
• 868 MHz
• 2gfsk
• 1700 m
• 3: Alarm/Tamper(Red), Fault(Amber), Signal Strength(Green/Red)
• Dimension(WxHxD)
