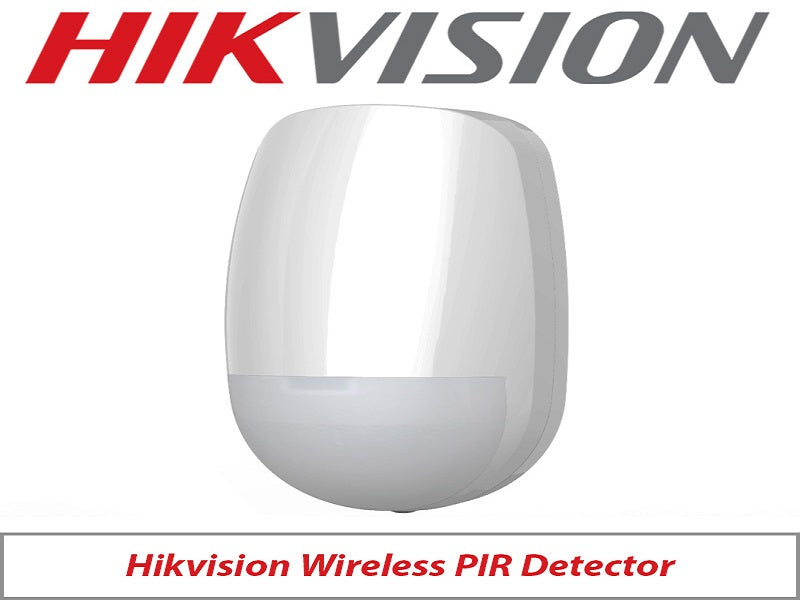

HIKVISION Ax Pro Wireless Pir Detector

The HIKVISION DS-PDP15P-EG2-WE Wireless PIR Detector is a state-of-the-art security solution designed for indoor environments. Featuring advanced detection technology and user-friendly installation, this device ensures reliable performance and easy management through the HIKVISION app. Advanced Technology: Smart Environmental Control (SEC) with advanced digital signal processing and 3D optics.

Key features

• Easy Installation: Multiple enrollment methods and a user-friendly design
• Detection Performance
• Enrolling and Configuration
• Electrical Characteristics
• Benefits
• Enhanced Security: Reliable detection with pet immunity up to 30 kg
• User-Friendly: Easy installation and remote configuration via the app
• Long Battery Life: Up to 5 years of standby time
• Robust Design: Sealed optics and tamper protection ensure durability

Specifications

• HIKVISION DS-PDP15P-EG2-WE Wireless PIR Detector
• Detection Range: 15m with an 85.9`b0 angle
• Pet Immunity: Up to 30 kg
• Remote Configuration: Fully configurable through the HIKVISION app
• Reliable Transmission: Frequency hopping technology to prevent jamming
• Detection Method: Passive Infrared (PIR)
• Detection Zones: 52 zones for comprehensive coverage
• Detectable Speed: 0.3 to 2 m/s
• Sensitivity Options: High, Auto, Pet
• White Light Filter: 6500 lux
• Digital Temperature Compensation: Supports consistent performance across varying temperatures
• Creep Zone Protection: Included for enhanced security
• Digital Processing: Ensures accurate detection
• Sealed Optics: Protects internal components
• Tamper Protection: Front and rear protection against tampering
• Environmental Indicators: Temperature and signal strength indicators
• Technology: Tri-X Wireless
• Method: Two-Way RF Wireless
• Frequency: 868 MHz
• Security: AES-128 Encryption for secure transmission
• Range: Up to 1.6 km in free space
• Frequency Hopping: Prevents jamming
• Enrolling Methods: Power up, Remote ID, QR Code
• Power Switch: Easy power-up enrolling
• LED Indicator: Blue light indicates alarms
• Battery Life: Up to 5 years in standby mode

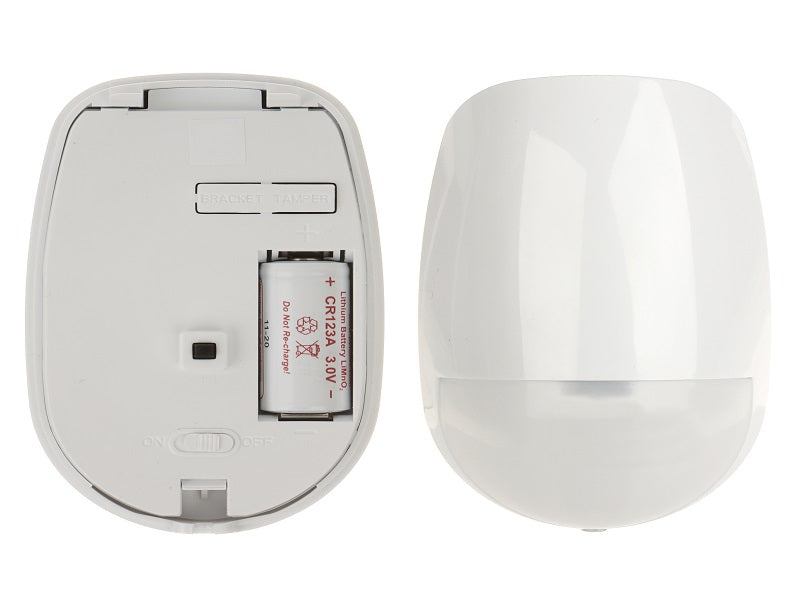

• Power Supply: Battery powered (CR123A `d7 1)
• Voltage: 3V
• Operating Temperature: -10`b0C to 55`b0C (14`b0F to 131`b0F)
• Storage Temperature: -20`b0C to 60`b0C (-4`b0F to 140`b0F)
• Operating Humidity: 10% to 90%
• Dimensions: 65.5 mm `d7 103 mm `d7 48.5 mm
• Weight: 128 g
• Mounting Height: 1.8 m to 2.4 m
• Mounting Method: Wall mounting
• Application Scenario: Indoor use
• Bracket: Optional wall and ceiling accessory available
