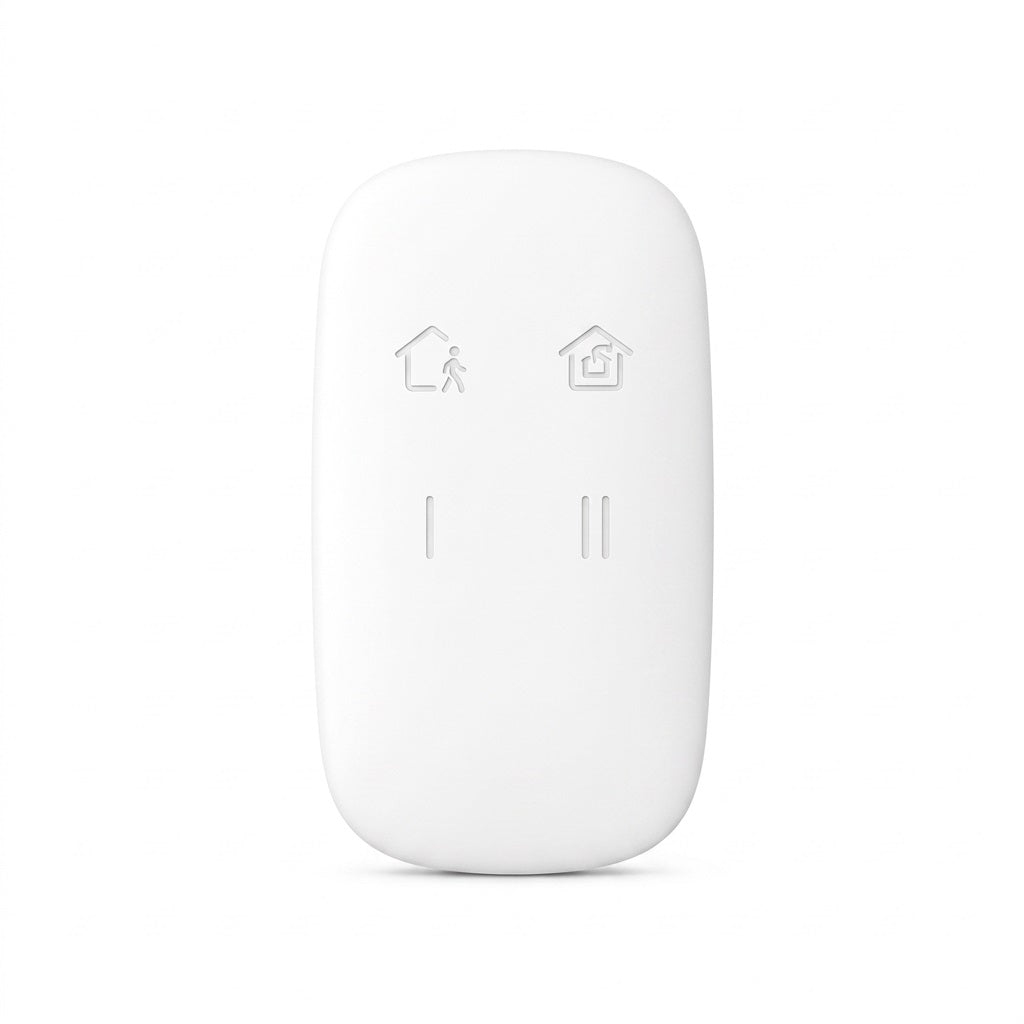

HIKVISION Ax Pro Wireless Remote keyfob

The Hikvision DS-PKF1-WE_C AX PRO Wireless Keyfob is a compact remote control designed for use with compatible Hikvision AX PRO wireless security alarm systems. It provides convenient remote control of supported alarm functions, allowing users to arm and disarm their security system without needing to operate the main control panel directly.

The keyfob features four physical buttons and supports multiple programmed functions, including stay/away arming and disarming. It also incorporates a keyfob lock function to help prevent accidental button presses.

Communication uses Hikvision`s Tri-X wireless technology at 868 MHz, with two-way wireless communication, frequency hopping and encrypted transmission designed to provide reliable communication between the keyfob and compatible AX PRO equipment.

The compact keyfob is powered by one CR2032 3V lithium battery, with a specified standard battery life of approximately three years.
Genuine Hikvision AX PRO wireless keyfob
Model: DS-PKF1-WE_C
4 physical function buttons
Supports multiple programmable functions
Stay/away arming
Disarming
Keyfob lock/unlock function
Silent and audible panic support
Three-colour LED status indication
Tri-X wireless technology
Two-way wireless communication
868 MHz operating frequency
2GFSK modulation
Frequency hopping for improved resistance to interference/jamming
AES-128 encrypted wireless transmission
Remote configuration through compatible Hikvision application
Multiple enrollment methods
Replaceable CR2032 battery
Compact portable design
Suitable for compatible AX PRO wireless alarm systems
Specification Details
Brand Hikvision
Series AX PRO
Product Type Wireless Alarm Keyfob
Model DS-PKF1-WE_C
Buttons 4
Wireless Technology Tri-X
Communication Two-way wireless
Frequency 868 MHz
Modulation 2GFSK
Transmission Speed 4.8 Kbps
Transmission Power 10 dBm
RF Range Up to 900 m in open area
Encryption AES-128
Frequency Hopping Yes
LED Indicator 3-colour LED
Battery 1 × CR2032, 3V
Battery Life More than 3 years standby/standard use specification
Operating Temperature -10°C to +55°C
Operating Humidity 10%–90%, non-condensing
Material Plastic panel with rubber gasket
Colour White
Dimensions Approx. 63.2 × 35.2 × 11.3 mm
Weight Approx. 16 g
Installation Portable keyfob
