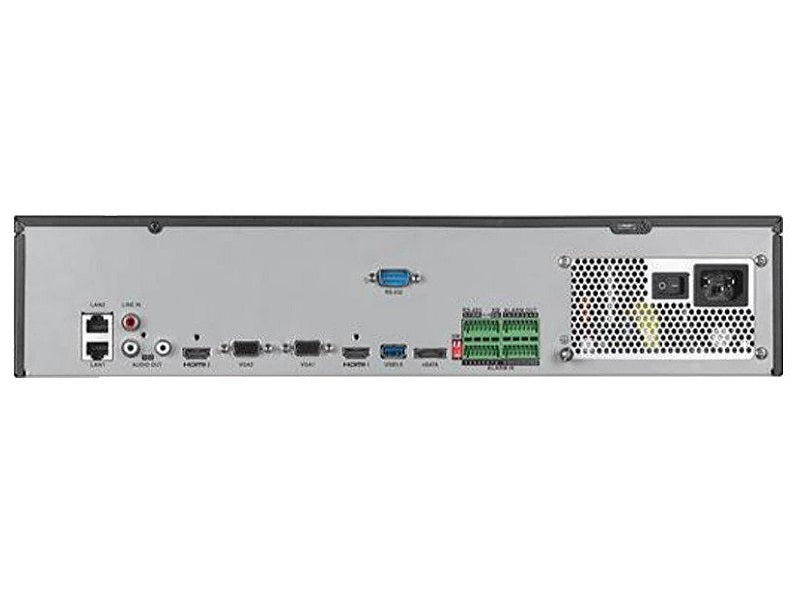

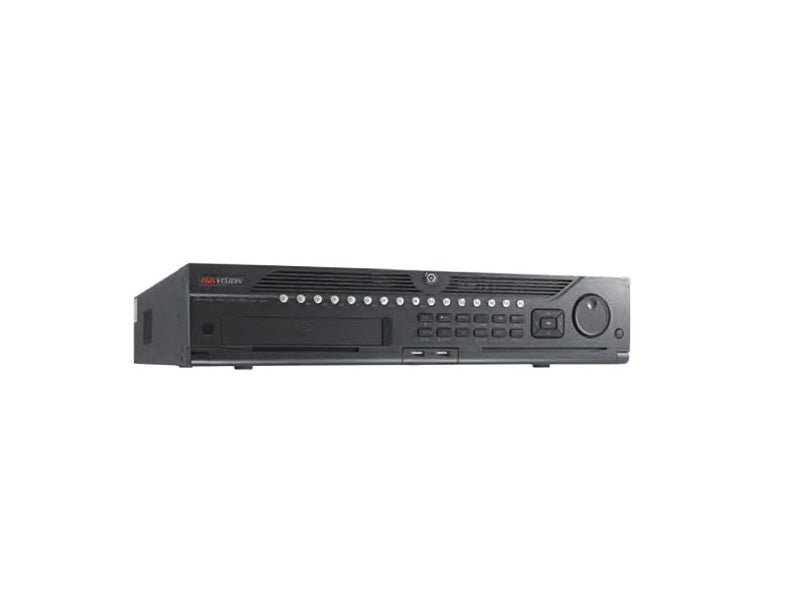

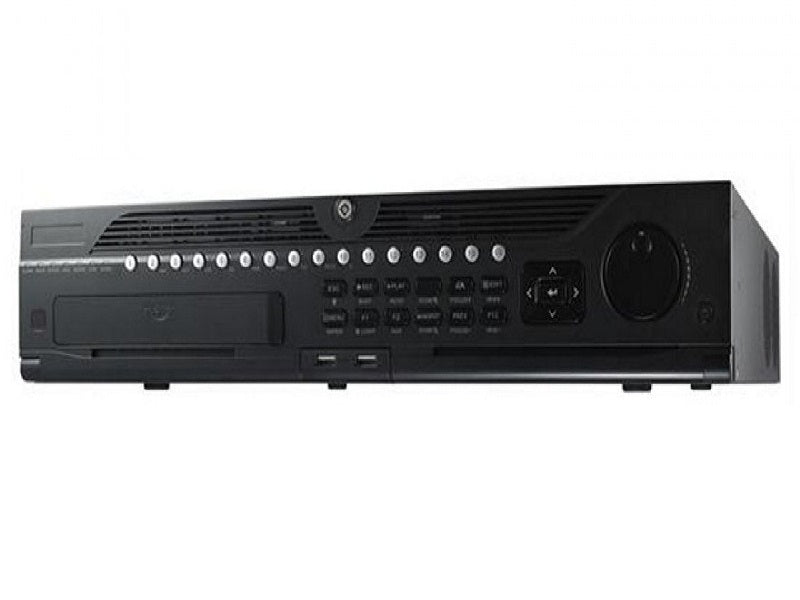

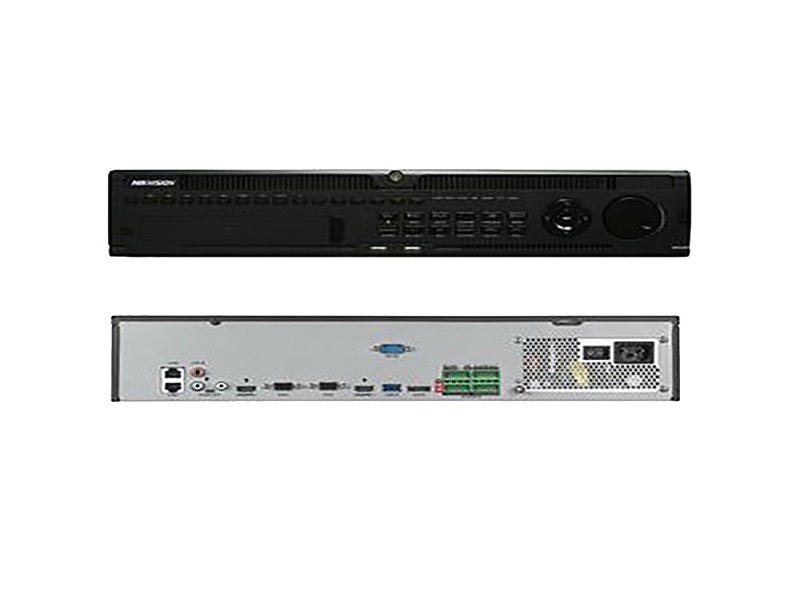

Hikvision DS-9632NI-I8 32-Channel 4K NVR - 12MP, 320Mbps, 8 SATA, RAID

Up to 12 MP high-definition live view, storage and playback. Up to 320 Mbps (or 200 Mbps when RAID is enabled) high incoming bandwidth ensures IP cameras can be connected.

Key features

• Up to 32 channel IP cameras can be connected
• 2 HDMI (different source) and 2 VGA (different source) interfaces
• 8 HDD can be used for continuous video recording
• Supports some specialist cameras, including people counting camera/ANPR (automatic number plate recognition) camera/fisheye camera
• Advanced streaming technology enables smooth live view in poor network conditions
• Supports RAID 0, 1, 5, 6, 10 and N+1 hot spare for even more reliable data storage, effectively avoids data loss risks
• : 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled. For DS-9632NI-I8, when ultra HD resolution mode is enabled, it will reduce the IP video input to 24-ch.
• Incoming Bandwidth
• Outgoing Bandwidth
• Incoming Bandwidth (RAID Mode)
• Outgoing Bandwidth (RAID Mode)
• 4K (3840 `d7 2160)/60Hz, 4K (3840 `d7 2160)/30Hz, 1920 `d7 1080/60Hz, 1600 `d7 1200/60Hz, 1280 `d7 1024/60Hz, 1280 `d7 720/60Hz, 1024 `d7 768/60Hz
• 1920 `d7 1080/60Hz, 1280 `d7 1024/60Hz, 1280 `d7 720/60Hz, 1024 `d7 768/60Hz
• HDMI 1 and VGA 1 provide simultaneous video output, and work as the main output;
• HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output
• 1-ch, BNC (1.0 Vp-p, 75 `d9), resolution: PAL: 704 `d7 576, NTSC: 704 `d7 480
• 1-ch, RCA (2.0 Vp-p, 1 K'd9, using the audio input)
• Decoding
• Decoding Format
• Recording Resolution
• 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 mp/1080p/uxga/720p/vga/4cif/dcif/2cif/cif/qcif
• Synchronous Playback
• Decoding Capability
• 1-ch@32 MP (30 fps)/2-ch@12 MP (20fps)/4-ch@8 MP (25fps)/8-ch@4 MP (30fps)/16-ch@1080p (30fps)
• Dual-Stream Recording
• Support
• Stream Type
• Remote Connection
• Tcp/ip, dhcp, ipv4, ipv6, DNS, ddns, NTP, rtsp, sadp, smtp, snmp, NFS, iscsi, isup, upnp™, http, https
• Raid
• RAID Type
• RAID0, RAID1, RAID5, RAID6, and RAID10 (at least 4 TB for each HDD)
• Sata
• Esata
• Alarm In/Out
• Front panel: 2 `d7 USB 2.0; Rear panel: 1 `d7 USB 3.0
• 100 to 240 VAC, 50 to 60 Hz
• Consumption
• Working Temperature
• 10 `b0C to 55 `b0C (14 `b0F to 131 `b0F)
• Working Humidity
• Chassis
• 445 `d7 465 `d7 92 mm ( 17.5"`d7 18.3" `d7 3.6")
• FCC
• CE
• EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4

Specifications

• 8 sata upto 6TB HDD ds-9632ni-i8
• 32-ch 2U 4K NVR
• 32-ch
• Up to 12 MP resolution
• 320 Mbps
• 256 Mbps
• 200 Mbps
• HDMI 1 Output
• HDMI 2 Output
• VGA 1 Output
• VGA 2 Output
• 2-ch, RCA (Linear, 1 K'd9)
• H.265+/h.265/h.264+/h.264/mpeg4
• 16-ch
• G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM
• 128
• 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
• 1 RS-485 (full-duplex), 1 RS-232, 1 keyboard
• 8 SATA interfaces supporting hot-plug
• 1 eSATA interface
• Capacity
• Up to 10TB capacity for each disk
• 16/4
• ≤ 30 W
• 10% to 90%
• 2U chassis
• Dimension (W `d7 D `d7 H)
• ≤ 10 kg (22 lb)
• Part 15 Subpart B, ANSI C63.4-2014
