Hikvision DS-3WAP…
3% OFF

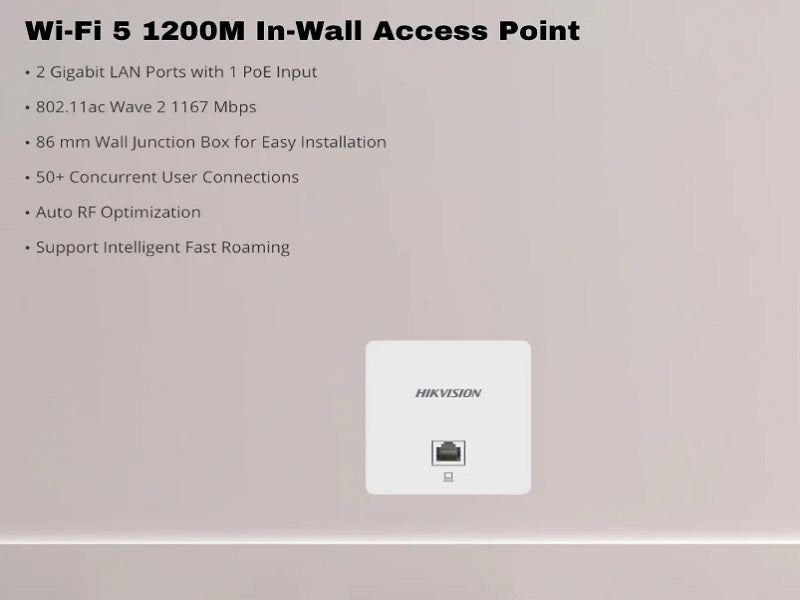

Hikvision DS-3WAP521-SI in-wall access point front view showing single Gigabit LAN port
Hikvision DS-3WAP521-SI feature diagram listing Wi-Fi 5 1200Mbps specs and PoE LAN port

Hikvision DS-3WAP521-SI Wi-Fi 5 Access Point - AC1200, Dual-Band, PoE, Wall Mount

1200mbps Wi-Fi 5 Dual Band Wall Mount

HIKVISION
R 873R 899
Estimated delivery 1–3 working days
In stock
FAST NATIONWIDE DELIVERY
Reliable delivery, every order
Quantity
In stock
  • Interest Free Payments available
  • Hassle Free Returns within 7 days
  • 6-month limited warranty
Flexible payments from only R 145.50 over 2–6 instalments
Price: R 873

Description

0 `b0C to 40 `b0C (32 `b0F to 104 `b0F). 40 `b0C to 70 `b0C (-40 `b0F to 158 `b0F).

Key features

  • 2 Gigabit LAN Ports with 1 PoE Input
  • 86 mm Wall Junction Box for Easy Installation
  • Auto RF Optimization
  • Support Intelligent Fast Roaming
  • Installation Mode
  • In-Wall Mounting
  • Working Temperature
  • Working Humidity
  • 86 mm `d7 86 mm `d7 35 mm (3.38`` `d7 3.38`` `d7 1.37``)
  • Packing List
  • 1200 M Access Point `d71,Screw Pack `d7 1,Quick Start Guide `d71,Regulatory Compliance and Safety Information `d7 1
  • Max. 8 W
  • WLAN Parameters
  • Maximum Number of Clients
  • Recommended Number of Clients
  • Maximum Number of SSIDs
  • Working Frequency Band
  • Spatial Streams
  • 2.4 GHz, 2 `d7 2 , MU-MIMO, 5 GHz, 2 `d72 , MU-MIMO
  • Channel Width
  • 2.4 GHz: Auto/20 /40 MHz,5 GHz: Auto/20 /40 /80/ MHz
  • Number of Antennas
  • Antenna Type
  • Built-in omnidirectional antennas
  • Antenna Gain
  • Modulation Technology
  • OFDM: BPSK@6/9Mbp, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps; DSSS: DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps; MIMO-OFDM (11n): MCS 0-15; MIMO-OFDM (11ac): MCS 0-9
  • WLAN Security
  • WAP-PSK,WAP2-PSK,WPA-WAP2-PSK,Blocklist & Allowlist,Support Multiple encryption key triggered dynamic unicast/multicast key update,Support Open system/shared key authentication,Support wireless endpoint access,Support 802.11i,Support SSID and VLAN binding
  • Management & Maintenance
  • Centralized AC management
  • Version Upgrade
  • upgrade on Web
  • 1 `d7 Gigabit RJ45 uplink port, 1 `d7 Gigabit RJ45 port
  • LED Indicator
  • Yellow/green/blue for different working states, flashing mode
  • Reset Button
  • Hardware Resetting Button
  • Approval
  • EMC
  • Ce-emc (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
  • Safety
  • CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017),UL (UL 60950-1)
  • Chemistry
  • Radio
  • EN 301 893,EN 300 440,EN 62311,EN 301 489-3,EN 301 489-17

Specifications

  • 1200mbps Wi-Fi 5 Dual Band Wall Mount
  • Wi-Fi 5 1200M In-Wall Access Point
  • 802.11ac Wave 2 1167 Mbps
  • 50+ Concurrent User Connections
  • 0.2 kg (0.44 lb)
  • 5% to 95% (no condensation)
  • Product Dimensions (W `d7 H `d7 D)
  • 128
  • 50
  • 8
  • radio 1: 5G(11a/n/ac), radio 2: 2.4G(11b/g/n)
  • Wi-Fi 5
  • 2.4 G: 300 Mbps,5 G: 867 Mbps
  • 2.4GHz'a3°2`a3`bb5GHz'a3°2
  • 2.4 GHz: 3 dBi,5 GHz: 3 dBi
  • 20 dBm
  • IEEE 802.3af/at POE
  • CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)

Frequently Bought Together Frequently bought

Product Information

Categories Hikvision / Networking / Specials
Brand Hikvision
Wi-Fi Standard Wi-Fi 5 (802.11ac Wave 2)
Speed 1200 Mbps (2.4G: 300 + 5G: 867)
Ports 2 x Gigabit RJ45 (1 PoE Input)
Power Supply IEEE 802.3af/at PoE
Max Clients 128
Recommended Clients 50
SSIDs Up to 8
Transmit Power 20 dBm
Antenna Gain 2.4 GHz: 3 dBi, 5 GHz: 3 dBi
Dimensions 86 x 86 x 35 mm
Weight 0.2 kg
Power Consumption Max 8 W
Installation In-Wall (86 mm Junction Box)
Barcode 6942160449579
