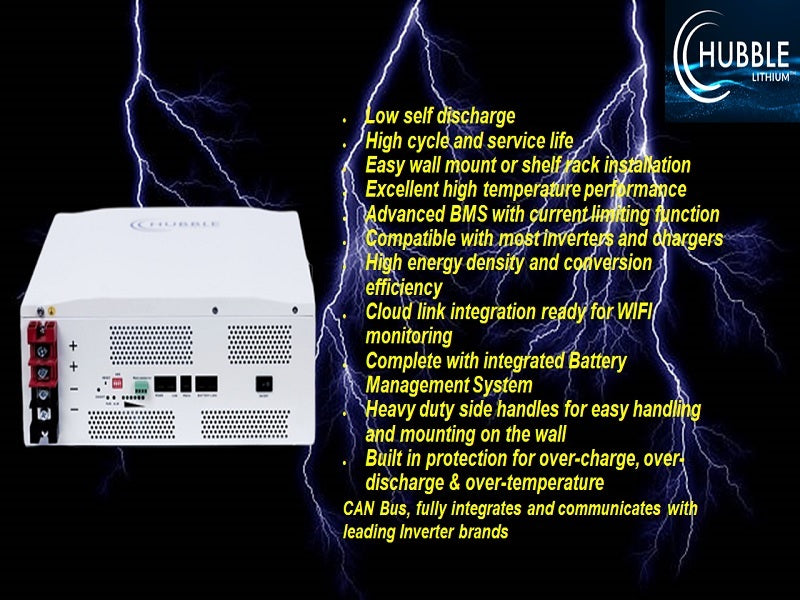

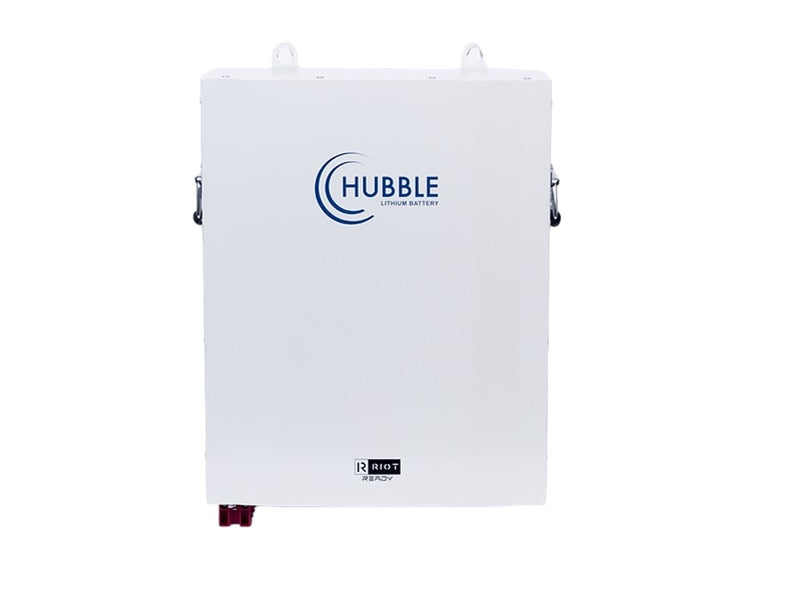

HUBBLE Am2 5.55Kwh 51V Li-Ion Battery

Heavy duty side handles for easy handling and mounting on the wall. CAN Bus, fully integrates and communicates with leading Inverter brands.

Key features

• Low self discharge
• High cycle and service life
• Easy wall mount or shelf rack installation
• Excellent high temperature performance
• Advanced BMS with current limiting function
• Compatible with most inverters and chargers
• High energy density and conversion efficiency
• Cloudlink integration ready for wifi monitoring
• Complete with integrated Battery Management System
• Built in protection for over-charge, over-discharge & over-temperature
• Max. Continuous Discharging Current: 105A
• Parallel: Parallel connection up to 15 packs with full communications
• Ports: 1 x CAN-bus, 2 x Battery Link Ports
• Cycle Life @ 1C: +/- 6000 cycles @ 50% DOD, Above 3000 cycles @ 100% DOD
• Protection: Electronic Circuit Breaker, BMS Voltage Protection, Current Limiting

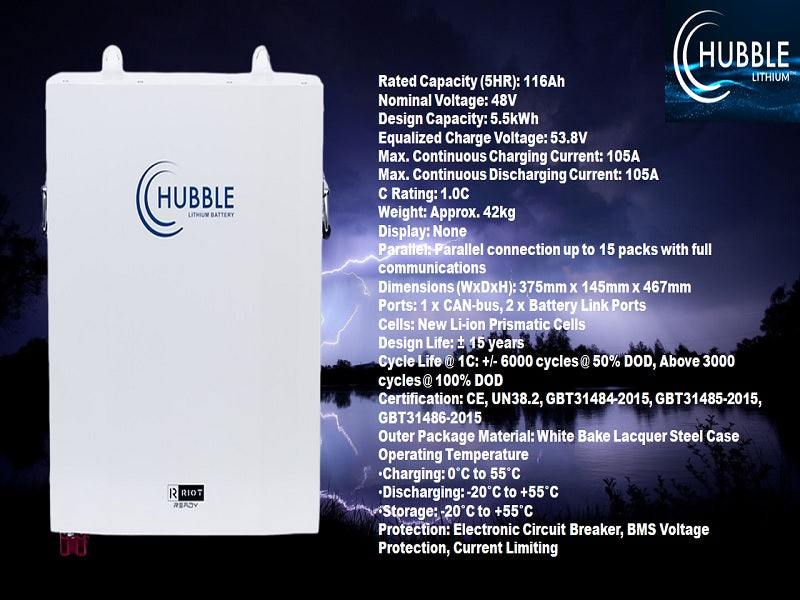

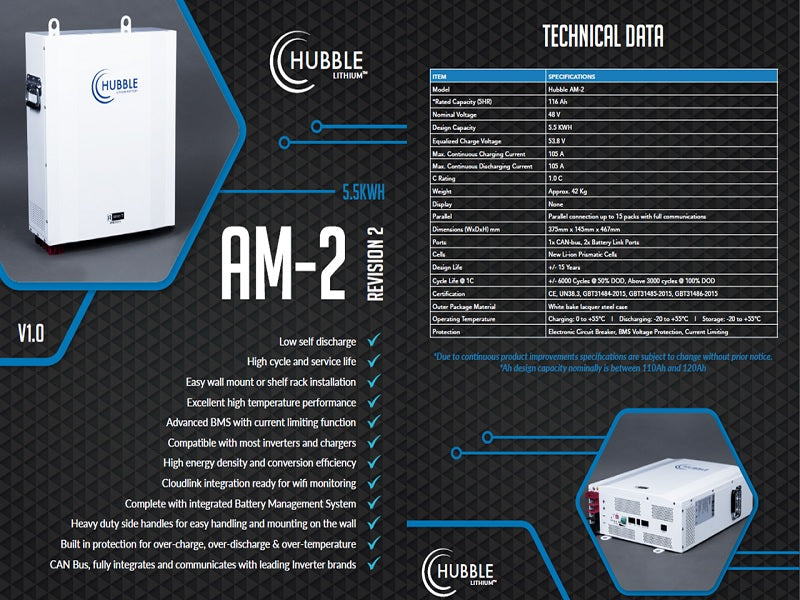

Specifications

• Rated Capacity (5HR): 116Ah
• Nominal Voltage: 48V
• Design Capacity: 5.5kWh
• Equalised Charge Voltage: 53.8V
• Max. Continuous Charging Current: 105A
• C Rating: 1.0C
• Weight: Approx. 42kg
• Display: None
• Dimensions (WxDxH): 375mm x 145mm x 467mm
• Cells: New Li-ion Prismatic Cells
• Design Life: `b1 15 years
• Certification: CE, UN38.2, GBT31484-2015, GBT31485-2015, GBT31486-2015
• Outer Package Material: White Bake Lacquer Steel Case
• Charging: 0`b0C to 55`b0C
• Discharging: -20`b0C to +55`b0C
• Storage: -20`b0C to +55`b0C
